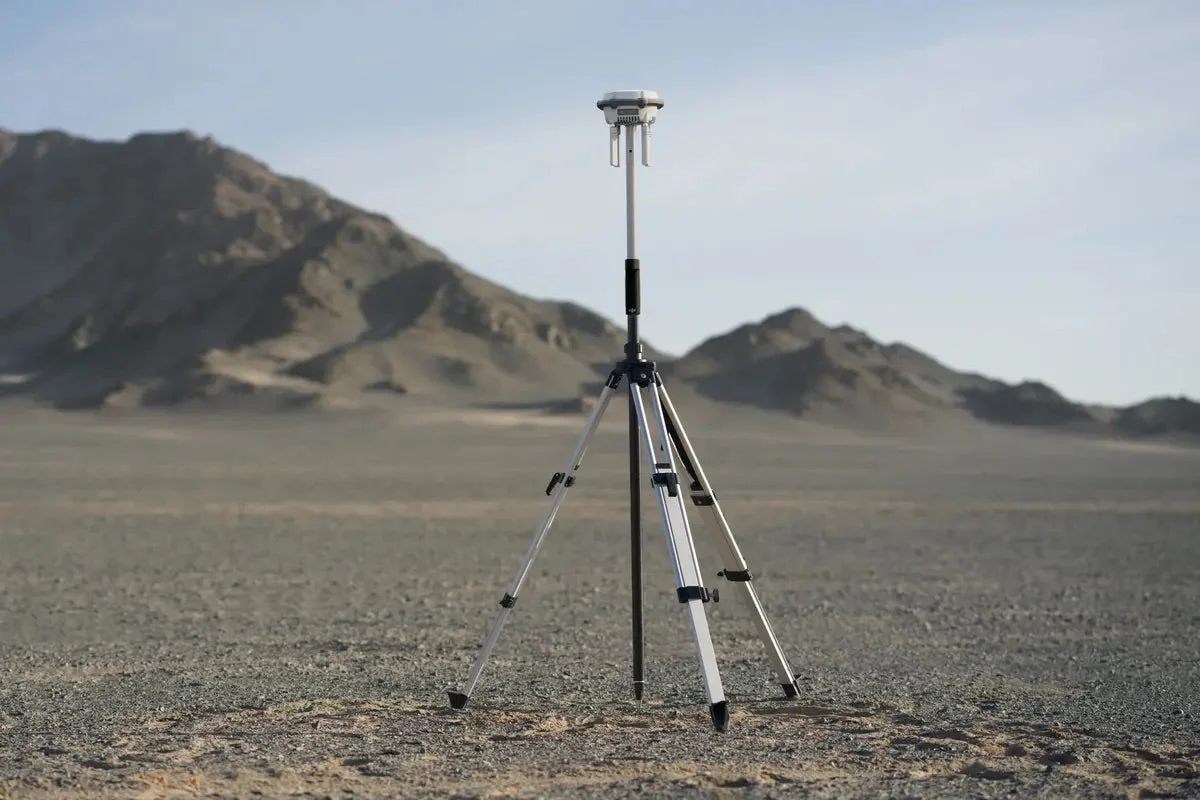

DJI D-RTK 3 Multifunctional Station

DJI D-RTK 3 Multifunctional Station

The all new D-RTK 3 Multifunctional Station combines high-performance antennas and receiver modules, enabling it to track and resolve data from major global satellite navigation systems.

It supports multiple data transmission links and can analyze device position and orientation through its built-in high-performance inertial measurement unit.

`These advanced features allow it to function as a base station, providing centimeter-level positioning for multiple drones simultaneously, or extend the operational range of drones in relay station mode.

Additionally, the new rover station mode, in conjunction with the DJI ENTERPRISE app and DJI Terra, offers a comprehensive solution for high-precision aerial surveying applications.

Specifications:

Positioning Performance

GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS supported

RTK Positioning Accuracy (horizontal): ±1 cm + 1 ppm

RTK Positioning Accuracy (vertical): ±1.5 cm + 1 ppm

Cold Start: < 50 s

Hot Start: < 15 s

Reacquisition: < 1 s

Communication

OcuSync / OcuSync Enterprise: Supported (for compatible DJI Enterprise drones)

Data Link: Long-range wireless transmission

Frequency Bands:

2.400–2.4835 GHz

5.725–5.850 GHz (region dependent)

Max Transmission Distance: Up to ~15 km (FCC, unobstructed)

Power & Battery

Built-in Battery Type: Li-ion

Battery Life: Up to ~8 hours (varies by mode)

Charging Port: USB-C

Charging Time: ~2 hours (with high-power charger)

Physical Specifications

Weight: ~1.26 kg

Dimensions (folded): approx. 163 × 163 × 122 mm

Ingress Protection: IP65 (dust-tight and water-resistant)

Operating Temperature: −20°C to 55°C

What's in the Box:

1 x D-RTK 3 Multifunctional Station

4 x Spare OcuSync Directional Antennas

1 x USB-A to USB-C Cable
