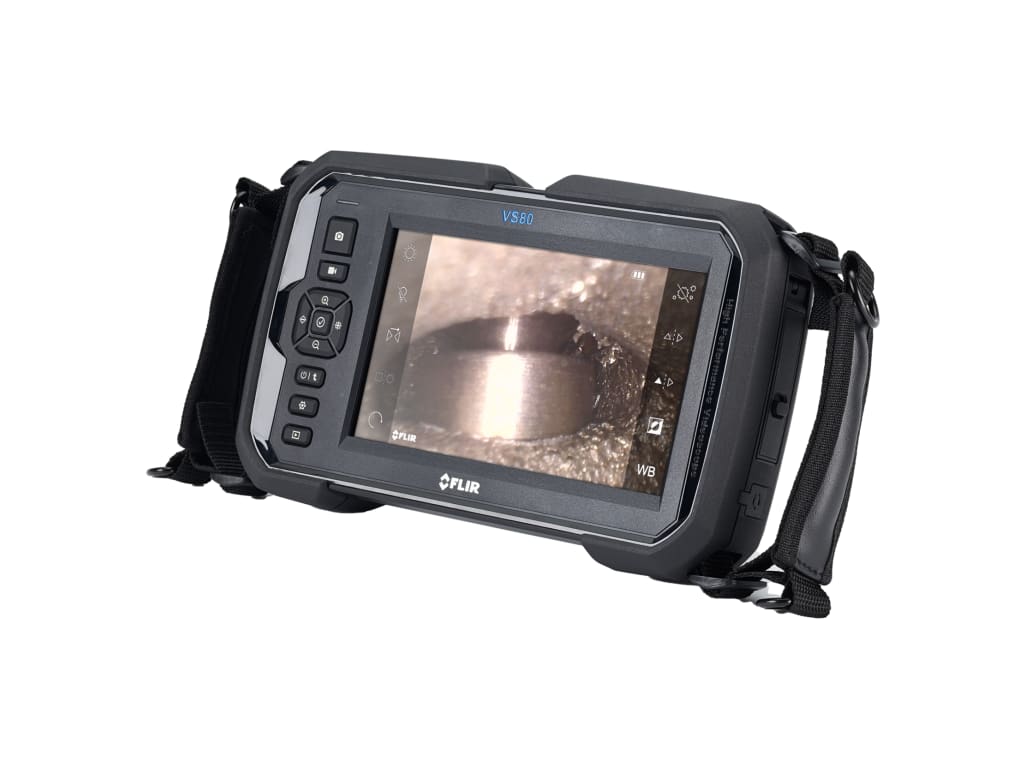

FLIR Videoscope Kit with Dual HD Camera

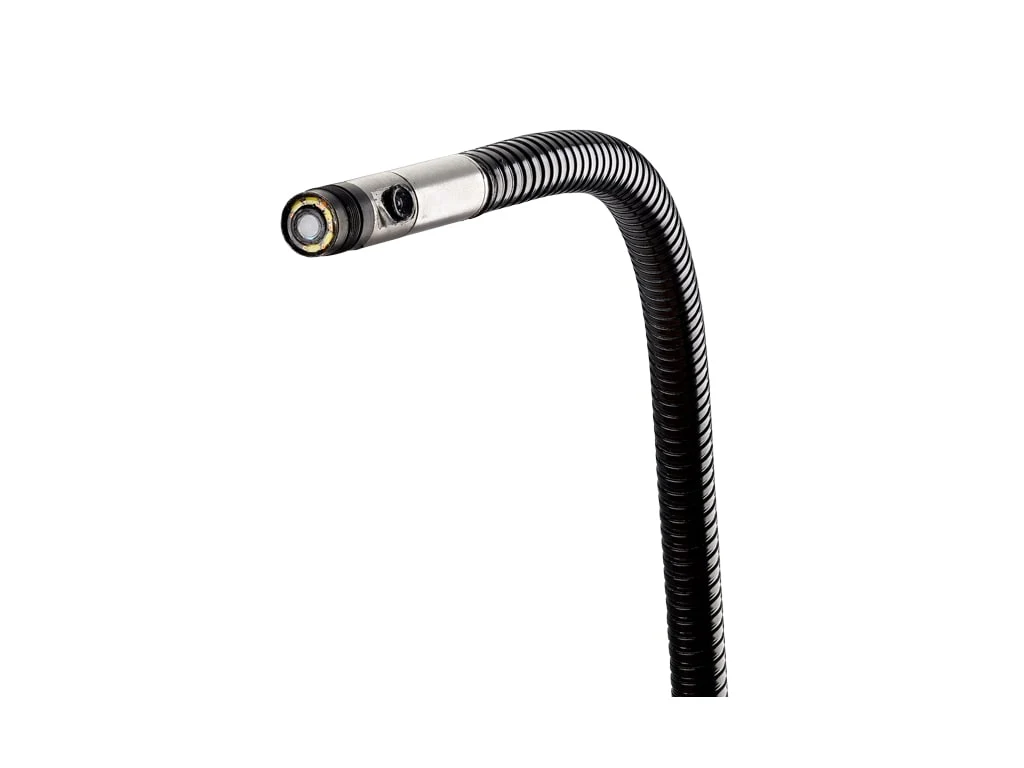

FLIR Videoscope Kit with Dual HD Camera 4.9mm x 1m long probe

The Flir VS80 is a versatile, professional videoscope that you can rely on when inspecting locations that are difficult or unsafe to access. The wide range of unique compatible probes* with waterproof (IP67) camera tips give you flexibility for virtually any type of inspection. Options include: a 160 × 120 thermal camera, 2-way and 4-way articulating visual camera, 30 m plumbing spool with 512 Hz sonde probe locator, HD camera, and dual HD camera probe.

With one or more of the VS80 videoscope probes, you can perform a wide range of inspections, including industrial equipment maintenance, HVAC/R, building, and automotive applications. Easily maneuver the narrow camera probes into small openings and tight spaces, and view sharp, vivid images and videos from the large, 7-inch touchscreen display. Using the Flir Meterlink® Mobile app from a mobile device, you can view live images and video from the VS80, download saved files, and share them easily with customers or colleagues.

Choose a complete kit or purchase the VS80 display and camera probes separately.

Specifications:

Highlighted
Diameter	VS80-KIT-1, VS80-KIT-6: 5.5 mm VS80-KIT-2: 4.5 VS80-KIT-3, VS80-KIT-7: 4.9 mm VS80-KIT-5: 10 mm VS80-KIT-8: 3.9 mm VS80-IR21: 19 mm
Display resolution	VS80-IR21: Camera probe: 160 × 120 IR Screen resolution 1024 × 600 VS80-KIT-1, VS80-KIT-2, VS80-KIT-4, VS80-KIT-5: Camera probe: 640 × 480 Screen resolution 1024 × 600 VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: Camera probe: 1280 × 720 Screen resolution 1024 × 600

Imaging & Optical
Color Palettes	Iron, rainbow, grayscale, below alarm, above alarm
Depth of Field	10 mm to infinity
Diameter	VS80-KIT-1, VS80-KIT-6: 5.5 mm VS80-KIT-2: 4.5 VS80-KIT-3, VS80-KIT-7: 4.9 mm VS80-KIT-5: 10 mm VS80-KIT-8: 3.9 mm VS80-IR21: 19 mm
Display resolution	VS80-IR21: Camera probe: 160 × 120 IR Screen resolution 1024 × 600 VS80-KIT-1, VS80-KIT-2, VS80-KIT-4, VS80-KIT-5: Camera probe: 640 × 480 Screen resolution 1024 × 600 VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: Camera probe: 1280 × 720 Screen resolution 1024 × 600
Field of View	VS80-IR21: 71° VS80-KIT-1, VS80-KIT-2, VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: 90° VS80-KIT-4, VS80-KIT-5: 87.1°
Frame Rate	8.7 Hz

Measurement & Analysis
Object Temperature Range	-10°C to 400°C (14°F to 752°F)
Spot Meter	Centre spot, hot spot, cold spot, no measurement

Communication & Data Storage
Video/Image Transfer	SD Card, USB, Wireless (Wi-Fi)

Power
Battery	VS80: Li-Ion 3.6 V (internal)
Battery Life	8 hrs

General
Probe Length	VS80-IR21, VS80-KIT-1, VS80-KIT-2, VS80-KIT-3, VS80-KIT-6: 1 m VS80-KIT-4, VS80-KIT-8: 2 m VS80-KIT-7: 3 m VS80-KIT-5: 25 m

Environmental & Certifications
Certifications	IC, CE, FCC, UKCA, RCM
Warranty	3 years



What's in the box:

• 1 x VS80 videoscope
• 1 x VS80C2-49-1RM
• 1 x Audio headset
• 1 x SD card
• 1 x USB cable
• 1 x HDMI cable
• 1 x Neck strap
• 1 x Hand strap
• 1 x Hard case
• 1 x Sun visor (retractable/removable)
• 1 x Power adapter with universal plugs (US, UK, EU, AUS)
• 1 x Printed quick start guide
