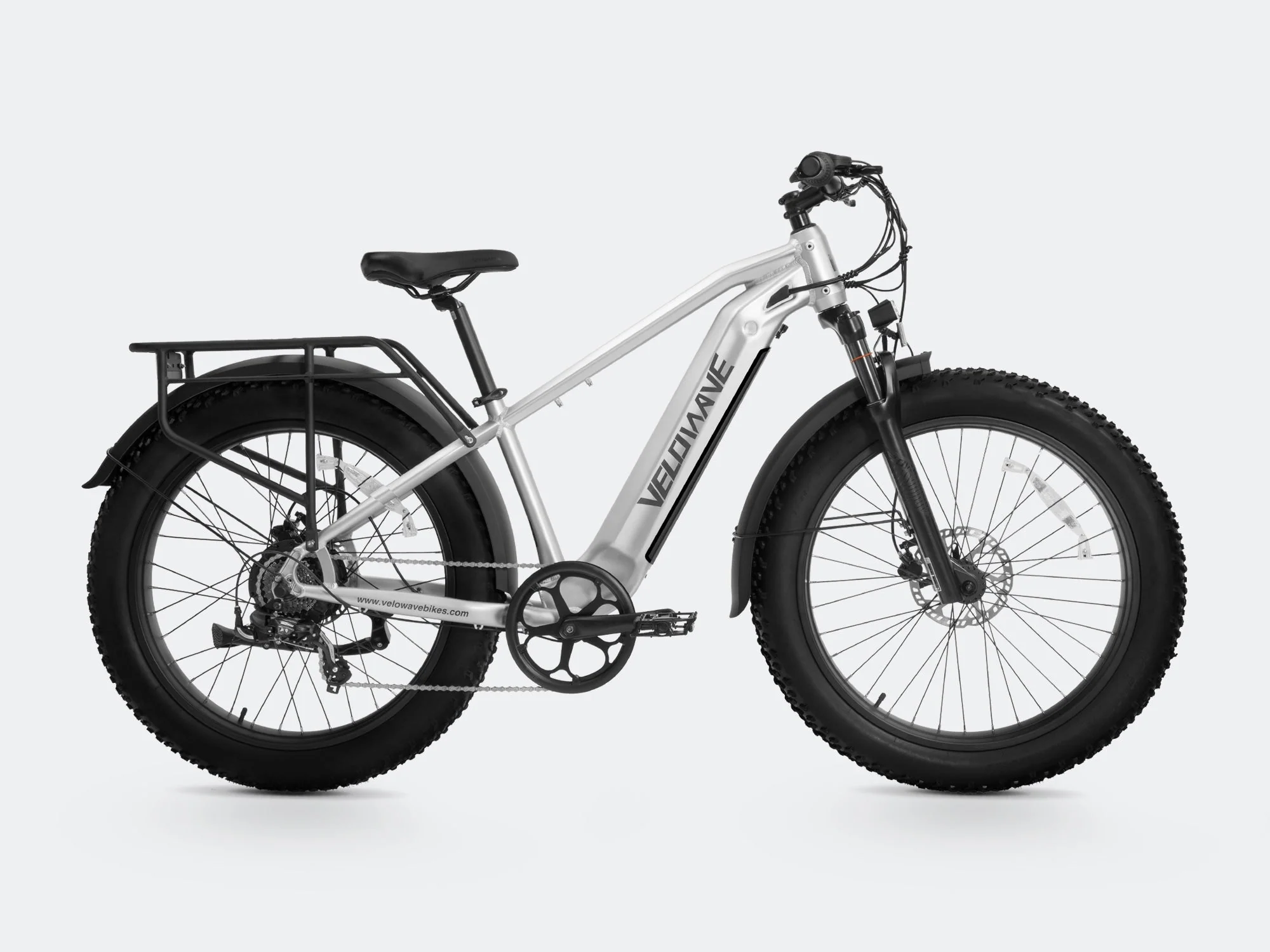

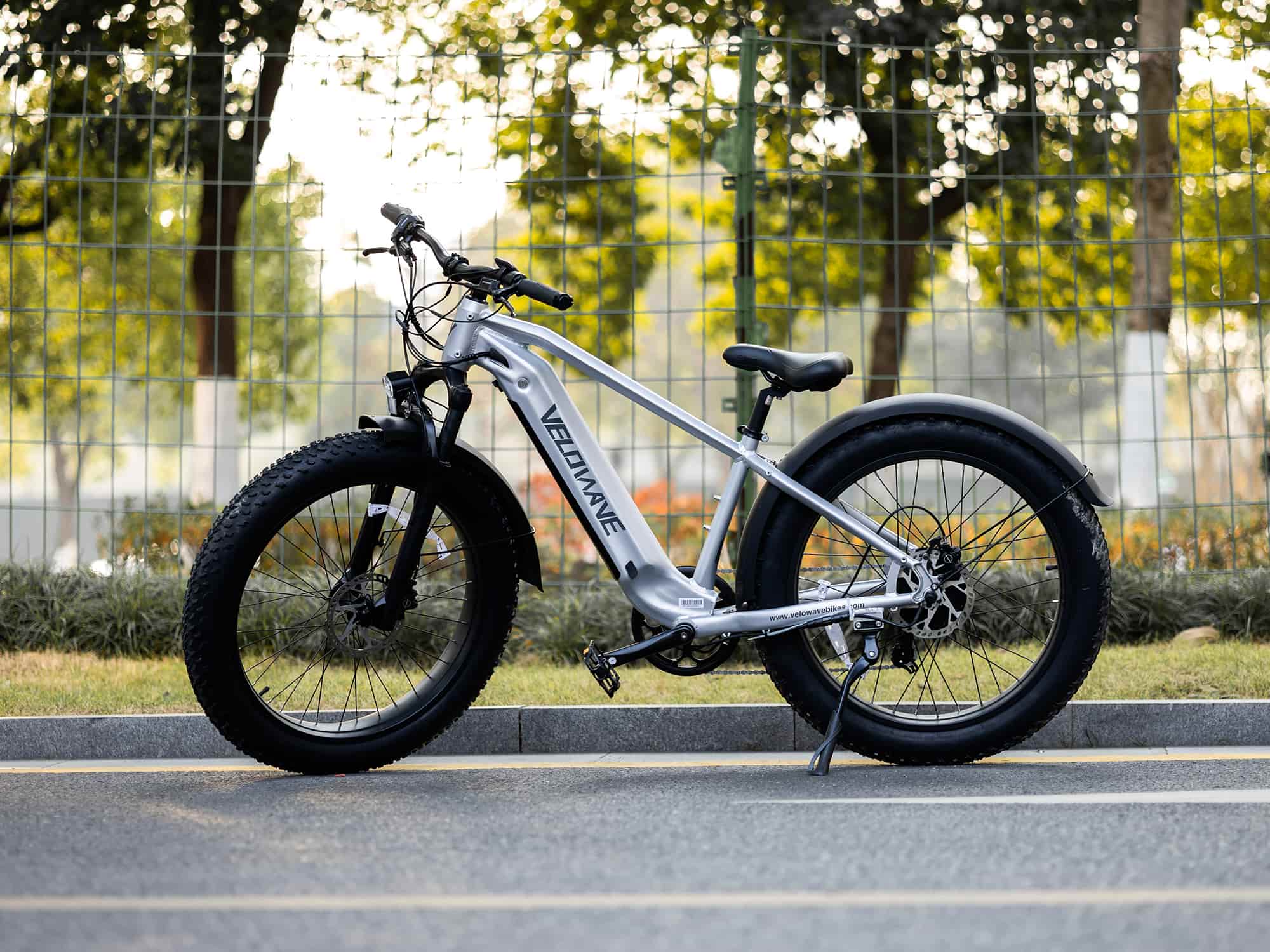

VELOWAVE Ranger 2.0 Fat Tire All-Terrain Electric Bike

Ranger 2.0 Fat Tire All-Terrain Electric Bike

Power meets durability with the VELOWAVE Ranger 2.0, an electric bike designed for off-road thrill seekers and urban adventurers alike. Equipped with a 750W geared hub motor and a removable 48V 15Ah LG battery, this fat tire e-bike reaches speeds up to 28 MPH and delivers a range of 30+ miles on throttle or up to 90 miles with pedal assist. Tackle any terrain with confidence—from sand and snow to rocky trails—thanks to the wide 4-inch fat tires and robust 6061 aluminum alloy frame that supports up to 350 lbs. Whether you're commuting, cruising, or exploring off the grid, the Ranger 2.0 delivers rugged performance and sleek versatility.

750W High-Torque Motor

Conquer steep inclines and accelerate with ease using a powerful rear hub motor that peaks at 960W, ensuring responsive power on-demand.

Long-Range LG Battery (48V 15Ah)

Lockable and removable, the UL-certified LG battery gives you freedom to charge anywhere—up to 90 miles with pedal assist and 30+ miles on throttle-only mode.

All-Terrain 4.0" Fat Tires

Ride confidently across sand, snow, dirt, or urban pavement. These anti-slip, shock-absorbing tires provide ultimate grip and stability.

Sturdy 6061 Aluminum Frame

Built for strength and accessibility, the heavy-duty frame supports up to 350 lbs and features a reinforced rear triangle for added load capacity.

Hydraulic Disc Brakes

Get precise stopping power with hydraulic brakes that respond instantly—essential for safety in diverse riding conditions.

Multiple Riding Modes

Switch between throttle, pedal assist, or manual pedaling for a custom riding experience based on terrain, distance, or effort level.

Specifications

Motor: 750W geared hub motor (960W peak)

Battery: 48V 15Ah removable LG lithium-ion battery

Max Speed: 28 MPH

Range: Up to 90 miles (PAS), 30+ miles (throttle)

Frame: 6061 aluminum alloy

Tire Size: 26" x 4.0" fat tires

Weight Capacity: 350 lbs

Brakes: Hydraulic disc brakes

Display: LCD display with speed, distance, battery level, assist level

Geometry Specs:

Total Length: 1914mm

Head Tube Length: 140mm

Head Tube Angle: 70°

Seat Tube: 425mm

Seat Tube Angle: 70.3°

Handlebar Height: 1109mm

Bottom Bracket Height: 361mm

Chainstay Length: 496mm

Front-Center: 669mm

Wheelbase: 1170mm

Standover Height: 704mm

Reach: 404mm

Seat Height Min/Max: 823mm / 1012mm

What’s in the Box

1 x VELOWAVE Ranger 2.0 E-Bike (pre-assembled)

1 x 48V 15Ah LG Battery (installed)

1 x Battery Charger

1 x User Manual
