SDI to HDMI Video Converter Supports HD-SDI, SD-SDI and 3G-SDI Signals (XD-500)

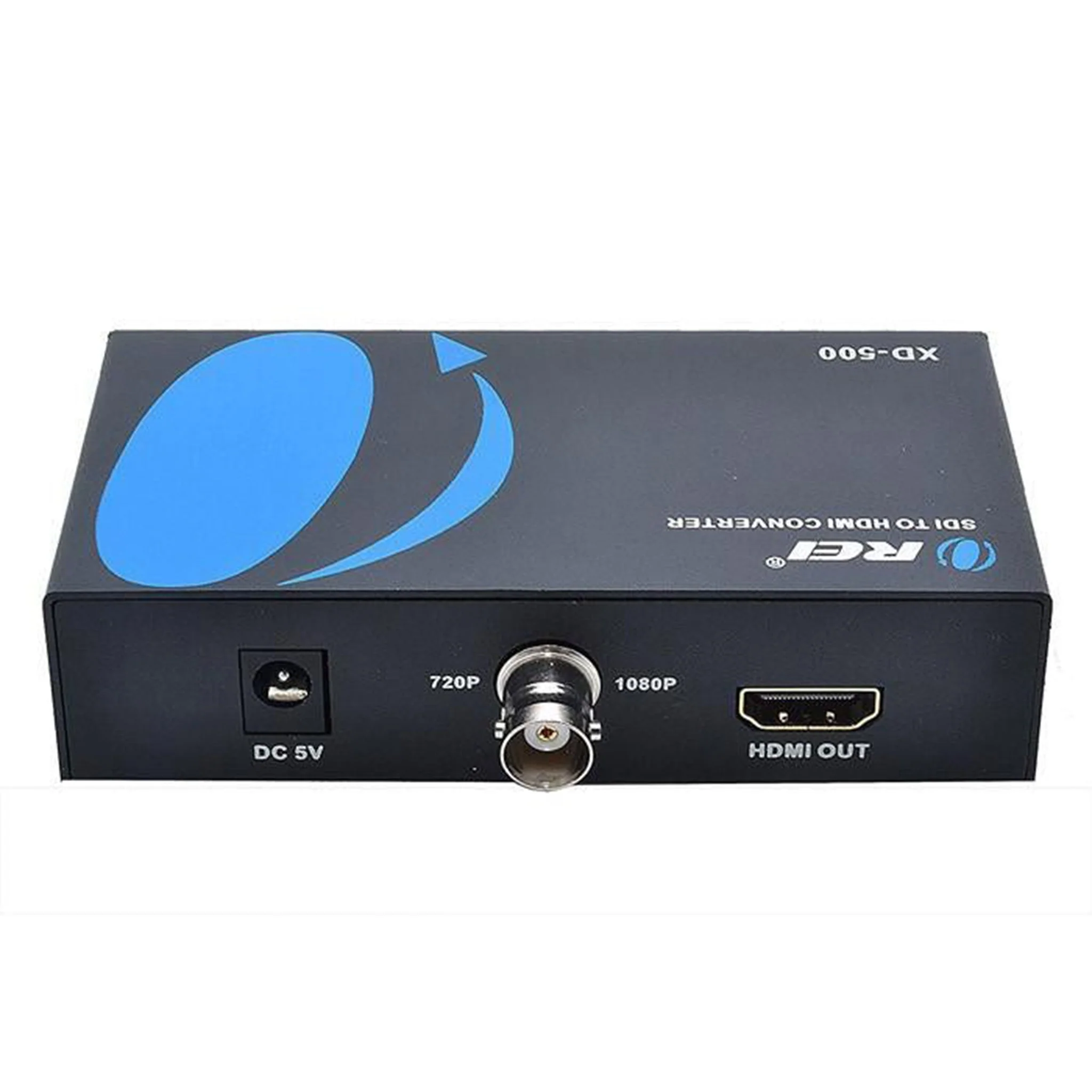

OREI XD-500: SDI to HDMI Video Converter

The OREI XD-500 conveniently converts audio and video from SDI to HDMI. Now you can use big screen HDTVs and HD video projectors as broadcast video monitors.

Embedded SDI/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. It's never been easier to connect the huge range of HDMI displays to your SDI based equipment. Broadcast, post-production, and professional A/V studios all use SDI equipment and cabling extensively.

In such an environment it's essential to maintain the highest possible video and audio quality when converting from SDI to HDMI. The OREI XD-500 has been made using the best components and connectors, ensuring that you keep the highest possible quality audio and video.

[shortdes]

Converts the SDI signals to HDMI
SDI Formats: SD-SDI HD-SDI 3G-SDI
SDI data transfer rates: 270Mb/s 1.485Gb/s 2.97Gb/s

[/shortdes] [tab]

AUDIO AND VIDEO

INPUT PORTS:	1x SDI INPUT
OUTPUT PORTS:	1x HDMI OUTPUT

COMPLIANCES

HDMI Compliance	HDMI 1.3
HDCP Compliance	HDCP1.4

VIDEO OUTPUT

SDI data transfer rates:	SD-SDI - 270Mb/s, HD-SDI - 1.485Gb/s, 3G-SDI - 2.97Gb/s
SDI format:	SD-SDI, HD-SDI, 3G-SDI
Color Space:	24bit
Color Depth:	8bit
Impedance	75Ω

SUPPORTED RESOLUTIONS

Input Resolution:	720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz
Output Resolutions:	720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz

SIGNALS

TMDS Signal:	3V

DDC Signal:	5V

SUPPORTS SCREEN FLIP, DOWNSCALER FUNCTION

Screen Flip Function:	No
Downscaler Function:	No

DIMENSIONS & WEIGHT

Height:	22mm
Width:	55mm
Depth:	26.3mm
Weight:	72g

PROTECTION

Operation Temperature:	0℃~50℃
Storage temperature:	-30～70℃
Relative Humidity:	0～90%(no condensation)
ESD Protection:	Contact discharge 4kv air-gap discharge 8kv

POWER

Power Consumption (Max):	DC 5V /2A
Power Supply:	DC 5V/1A

PHYSICAL PROPERTIES

Color:	Black
Housing:	Metal Housing

PACKAGE CONTENTS

1x XD-500

1x DC 5V/1A Power Adapter

1x User Manual

WARRANTY

1-Year Manufacturer's Warranty
