Rich Solar 30A MPPT Solar Charge Controller automatically detects 12V or 24V DC system voltages and features diverse load control. Compatible with Sealed, Gel, Flooded and Lithium deep-cycle batteries, this solar charge controller deploys advanced MPPT algorithm to locate the optimal working point in I-V curve and deliver 99% efficiency and 98% peak conversion.

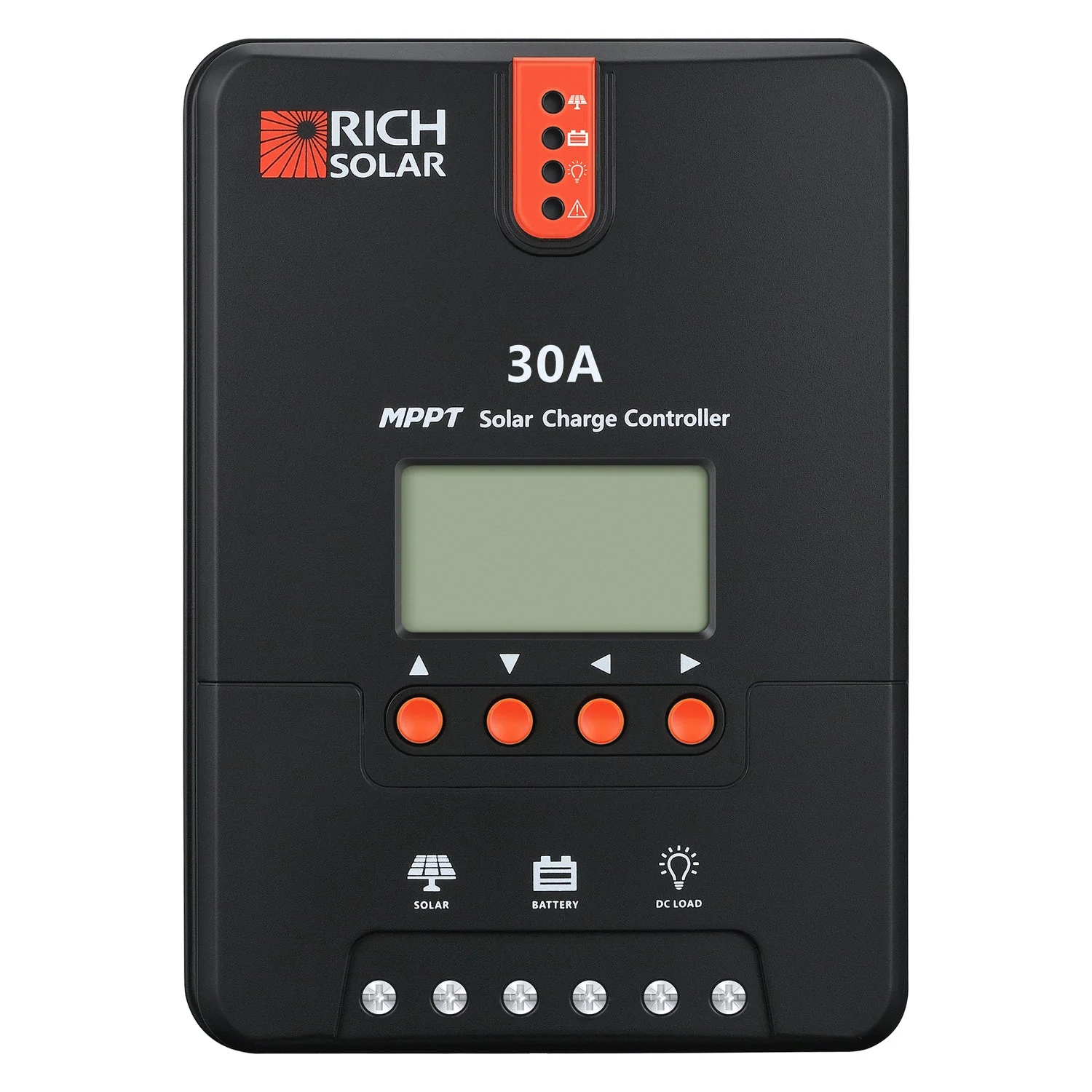

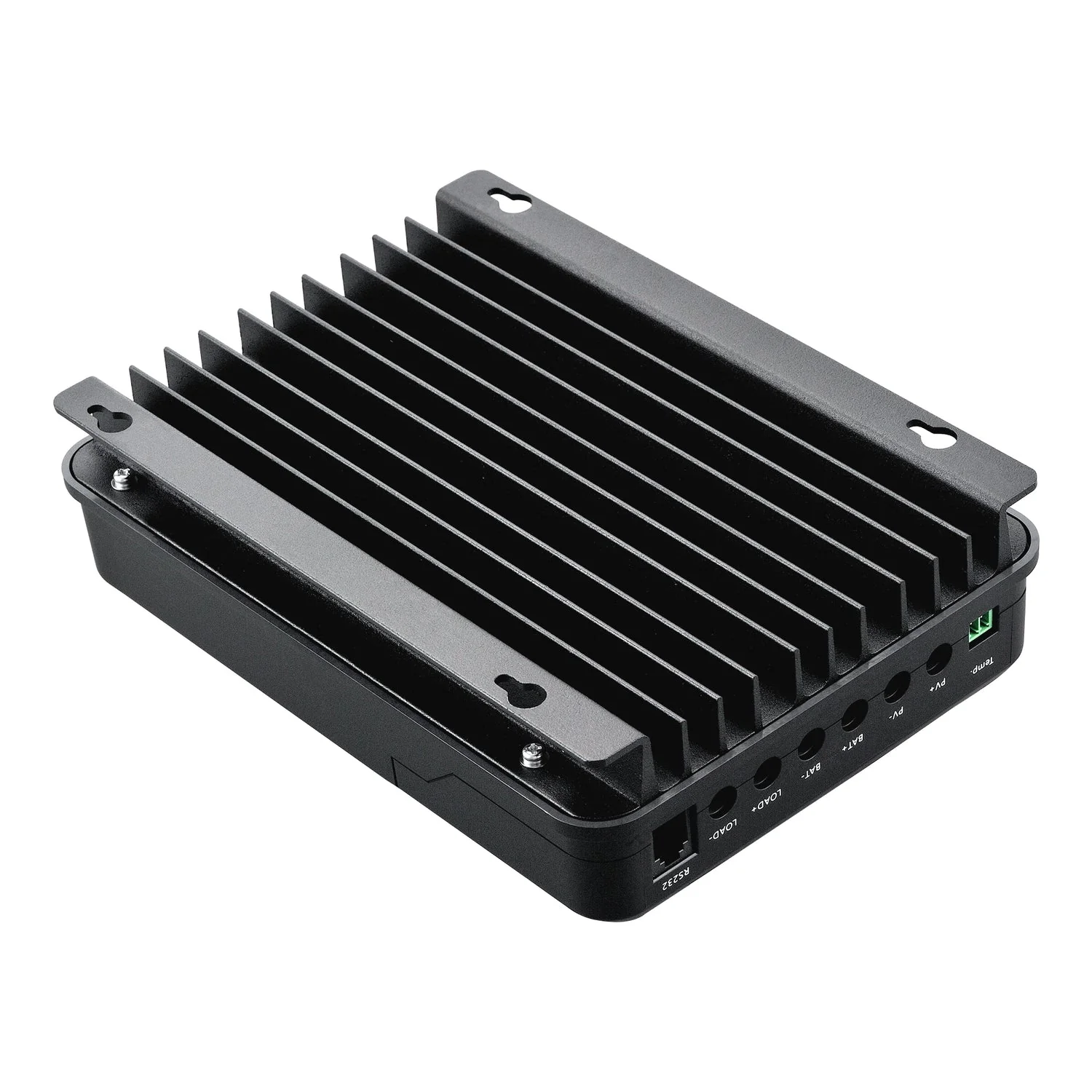

Fitted with an LCD screen and intuitive LED indicators one can get real-time readings of battery status, system operation info, customizable parameters and error codes. Constructed in die-cast aluminum, the charge controller dissipates heat effectively to deliver optimal performance at all times.

Specifications:

Nominal System Voltage: 12V/24V Auto

Rated Charging Current: 30A

Rated Load Current: 20A

Max Solar Input Voltage: 100V(25?), 90V(-25?)

Discharge Circuit Voltage drop: = 0.15V

Net Weight: 4.41lbs

Overall Dimension: 9.37 x 6.81 x 2.85in

Battery Wire Diameter: 6mm²

Load Wire Diameter: 5mm²

No-load Loss: 0.7W to 1.2W

Battery Voltage: 9V to 35V

Max. Power Point Voltage Range: Battery Voltage +2V to 75V

Max. Photovoltaic System Input Power: 400W/12V, 800W/24V

Conversion Efficiency: =98%

MPPT Tracking Efficiency: >99%

Temperature Compensation Factor: -3mv//2V Default

Operating Temperature: -35°C to +45°C

Protection Degree: IP32

Communication Method: RS232

Altitude: =3000m

Max. Capacitive Load Capacity: 1000uF

What's in the Box:

1 x 30A MPPT solar charge controller

1 x User Manual
