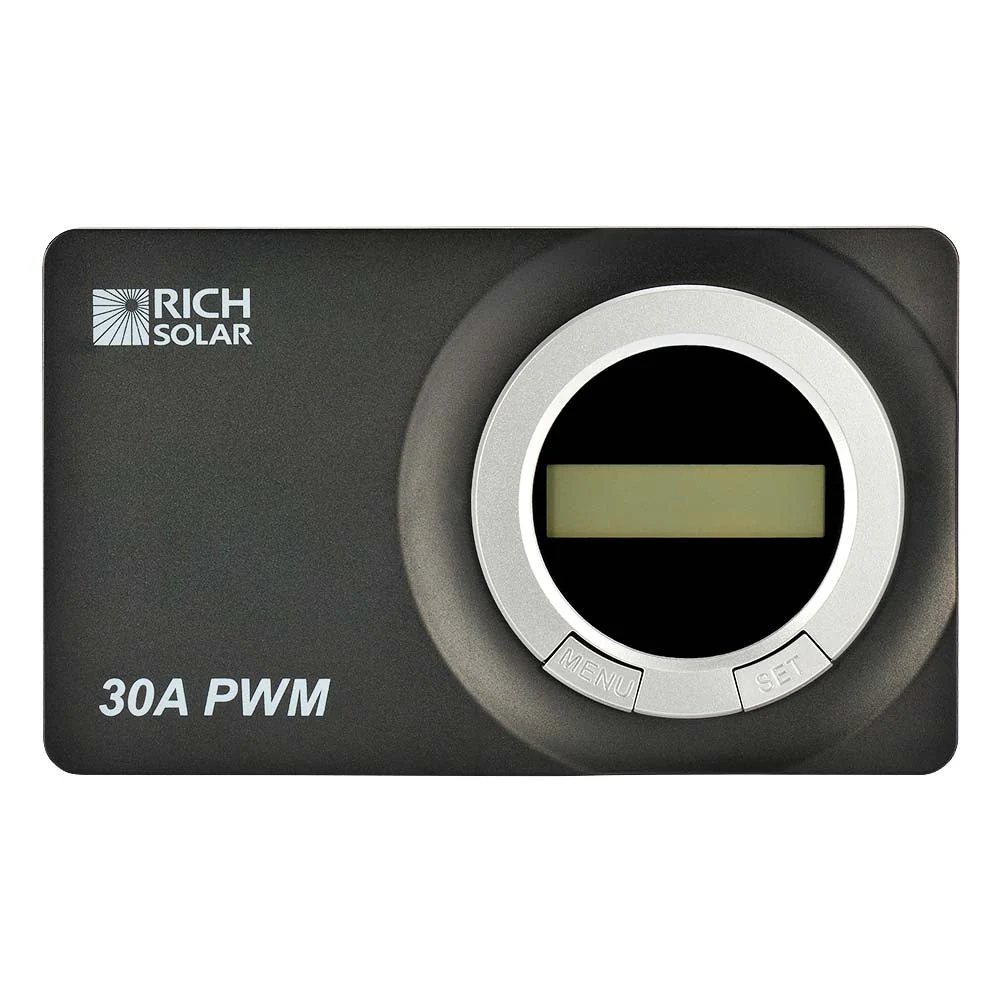

Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller

Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller

The 30 Amp Flush Mount PWM solar charge controller from Rich Solar is dedicated to manage the charging process of your 30 Amp solar panels. An ideal controller contraption for medium-sized solar installations, this 30 Amp solar charge controller is a top-rated regulator that boasts of high-quality and low-failure rate components.

Compatible with Sealed, Gel and Flooded types of batteries, the PWM allows 3-stage intelligent charging including Bulk, Boost/Equalize and Float. Get all your info on the digital LCD monitor that display real-time data including operational parameters and error codes.

Highlights:

• PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid
• Real-time energy statistics feature
• Battery temperature compensation
• Voltage drop sampling interface design
• Multiple communication peripherals
• RS485 communication port with Modbus protocol
• Short circuit protection for 5V/200mA power supply


Specifications:

Electrical Specifications

Nominal Voltage: 12/24VDC or Auto

Battery Input Voltage Range: 8V～32V

Rated Charge Current: 30A

Max. PV Short Circuit Current: 30A

Max. PV Open Circuit Voltage: 50V

Battery Type: Sealed(default)/Gel/Flooded

Self-consumption: ≤4.2mA/12V;≤2.6mA/24V

Temperature Compensation Coefficient: -3mV/°C/2V(Default)

Charge Circuit Voltage Drop: 0.21V

Environmental Parameters

Storage Temperature Range: -30°C～+80°C

Working Environment Temperature: -20°C～+55°C(100% input and output)

Relative Humidity: ≤95%, N.C.

Enclosure: IP30

Grounding: Common negative

Altitude: 5000m

Pollution Degree: PD2

Mechanical Parameters

Dimension (L×W×H): 178.5×105.5×48.3mm

Mounting Dimension: 166.5×93.5mm

Mounting Hole Size: Φ5mm

Terminal: 16mm2/6AWG

Recommended Cable: 6mm2/10AWG

Net Weight: 0.31kg

What's in the Box:

1 x 30 Amp Flush Mount PWM Solar Charge Controller

1 x User Manual
