Renogy RCM-HUB - Renogy Communication Hub
Renogy RCM-HUB - Renogy Communication Hub

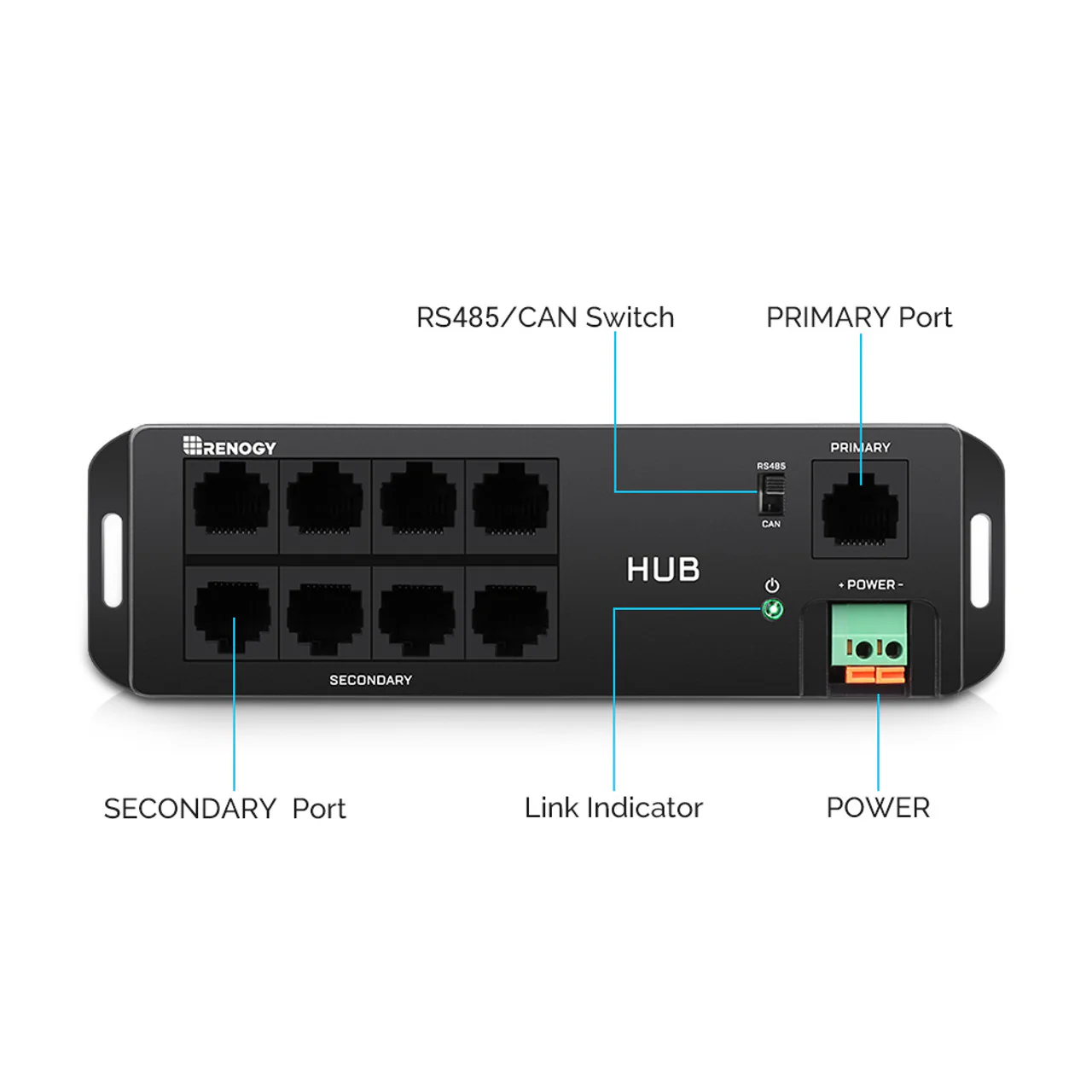

Connect one BT-2 Bluetooth module to several Renogy appliances with an RJ45 connector and RS485 communication protocol using the Renogy Communication Hub. You can now monitor multiple devices at once with your phone! It also supports both RS485 and CAN communication protocols – giving you a wider selection of compatible devices.
Highlights:
• Monitor multiple devices at the same time with a single Bluetooth module
• Connect to the smartphone App and Renogy DC Home to keep track of your system
• Supports both RS485 and CAN communication protocol
• Green LED lights to indicate which communication is on
SPECIFICATIONS:
Input Voltage: 9V-60V
Port Type: RJ45
Standby Power Consumption: 0.324W
Cable Length: 5.00m (16.4ft)
Operating Power Consumption: <0.35W

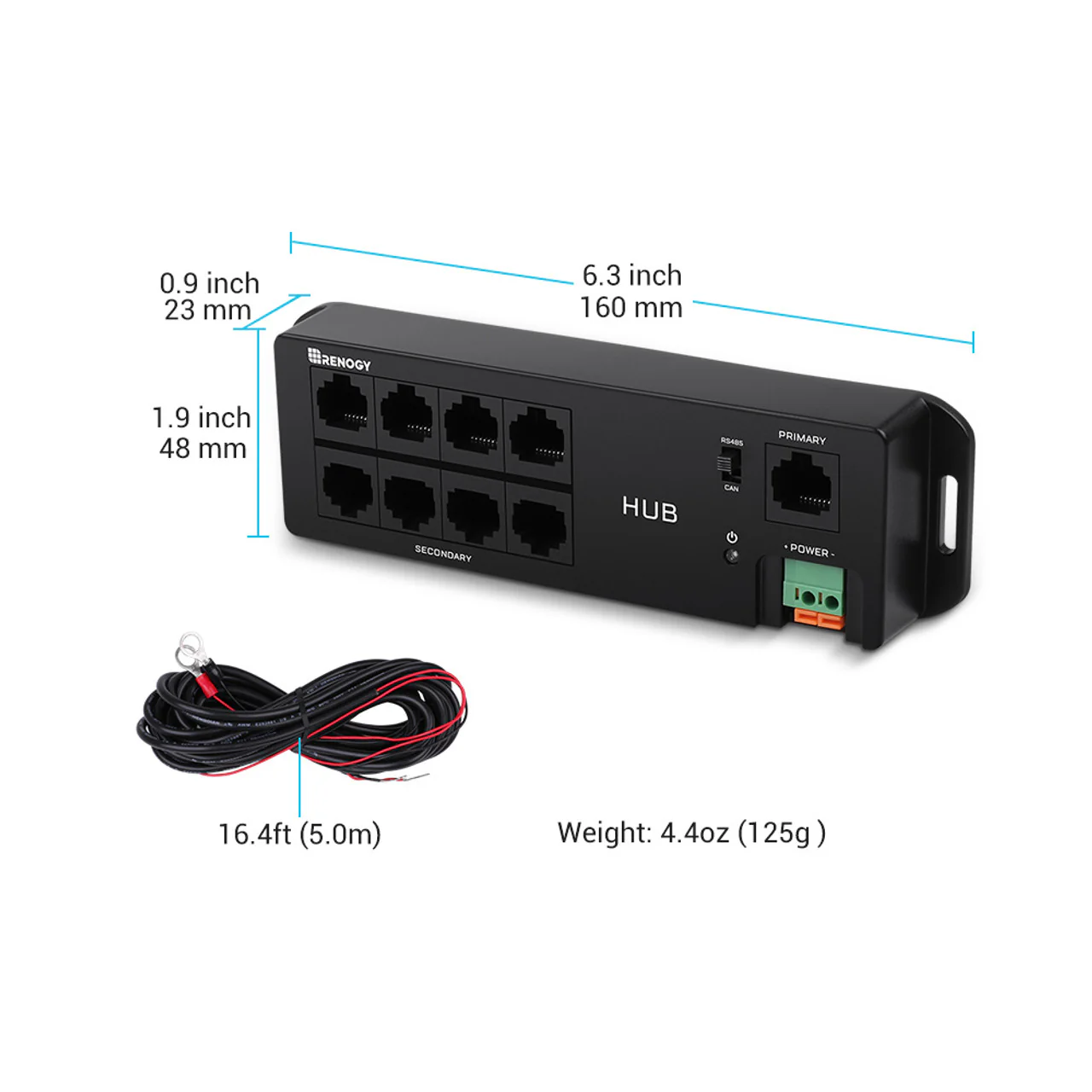

Dimension: 6.29 X 1.89 X 0.91in (160 x 48 X 23mm)
Communication Range: ≤82ft
Installation Dimension: 151.4 φ3.5mm (5.96 φ 0.14in)
Serial Baud Rate: RS485-9600 bps CAN-500 kbps
Operation Temperature: -20°C~85°C;(-4°F to 185°F)
Communication Protocol: RS485 CAN
Weight: 125g (4.41oz)
Warranty Information: Accessories 1-year Material and Workmanship Warranty
WHAT’S IN THE BOX:
1 x Renogy Bluetooth Hub
1 x Power Cable
