Renogy DC-DC Battery Charger Series Remote Monitor

Renogy DC-DC Battery Charger Series Remote Monitor

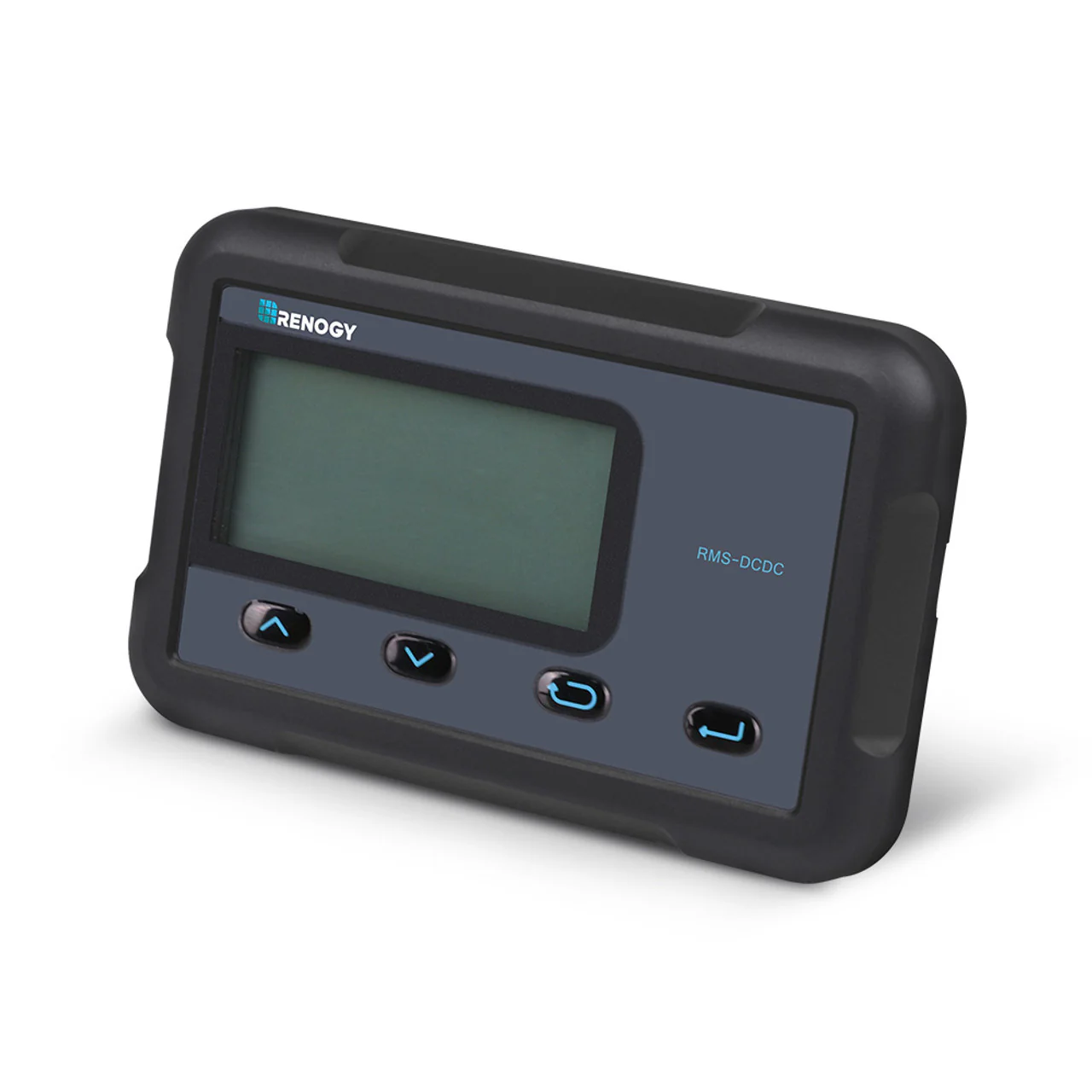

A compact, remote monitor, the Renogy DCDC is a high precision meter for DC-DC MPPT series on board battery chargers. A no-nonsense monitor, this meter can be flush mounted adding a professional and aesthetic look to your control system.

Renogy DC-DC comes with 4 keys that lets you navigate through the LCD to read system info, configure charging parameters and to identify any error codes.

Highlights:

• Dual battery monitoring - house and auxillary batteries
• Remotely adjust parameters - volts, amps - through the screen

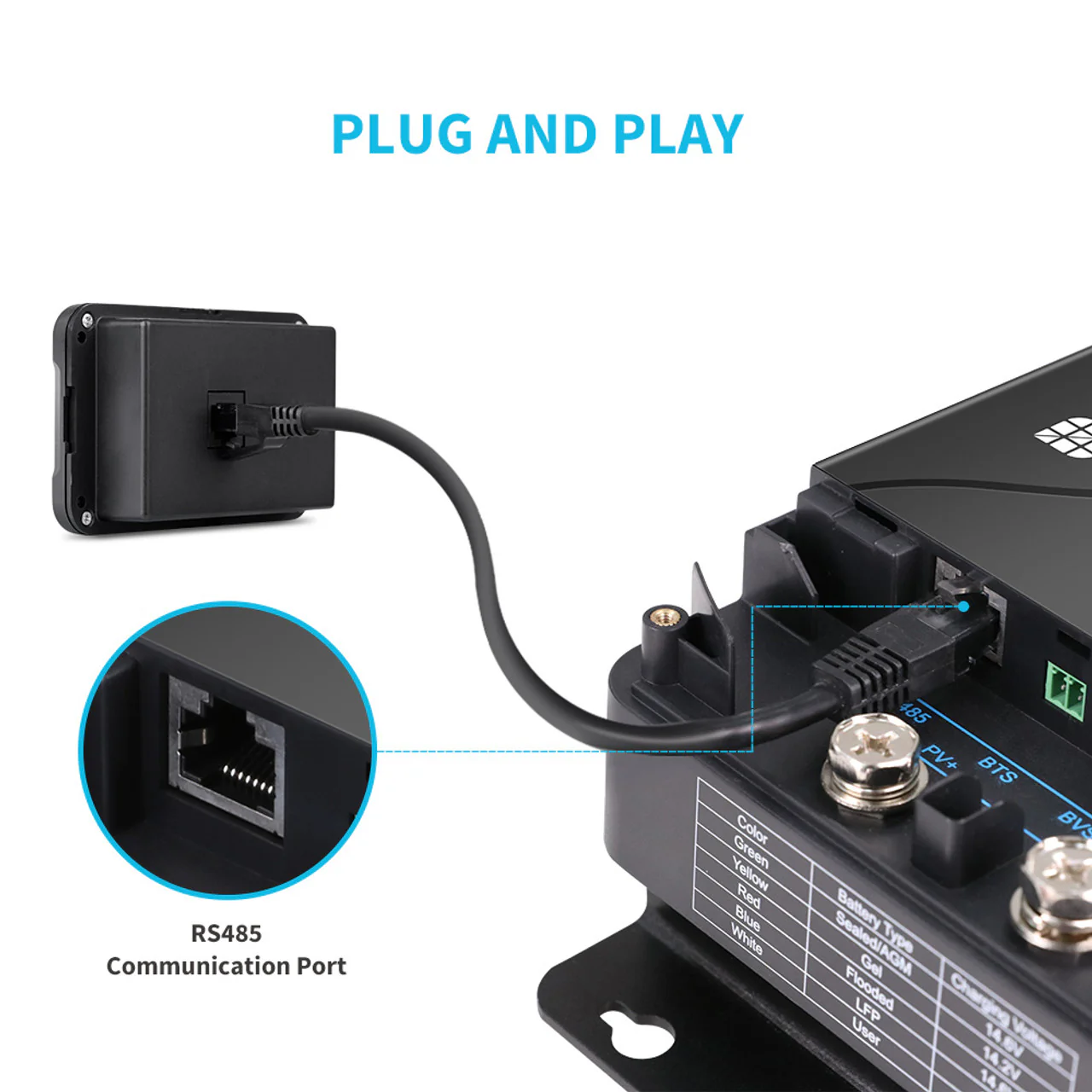

• Plug and play module
• Accurate info with precise tracking of solar and alternator charging

Specifications:

Supply Voltage: 5VDC

Communication Port: RJ45 (RS485 Protocol)

Supply Current: 30mA

Display: Backlit LCD

Power Consumption: <1W

User Interface: 4 Front Menu Buttons

Operating Temperature Range: -4°F~113°F / -20°C~45°C

Mounting System: Wall Mount

Voltage Accuracy: ±0.1V

Dimension: 2.76 x 4.33 x 1.25 inch

Current Accuracy: ±0.1A

Weight: 0.14 lbs

Wire Length: 16.4ft / 5m

Certifications: FCC

Warranty: 1-year material warranty

What's in the Box:

1 x Monitoring Screen for DC-DC MPPT Battery Charger Series

1 x User Manual
