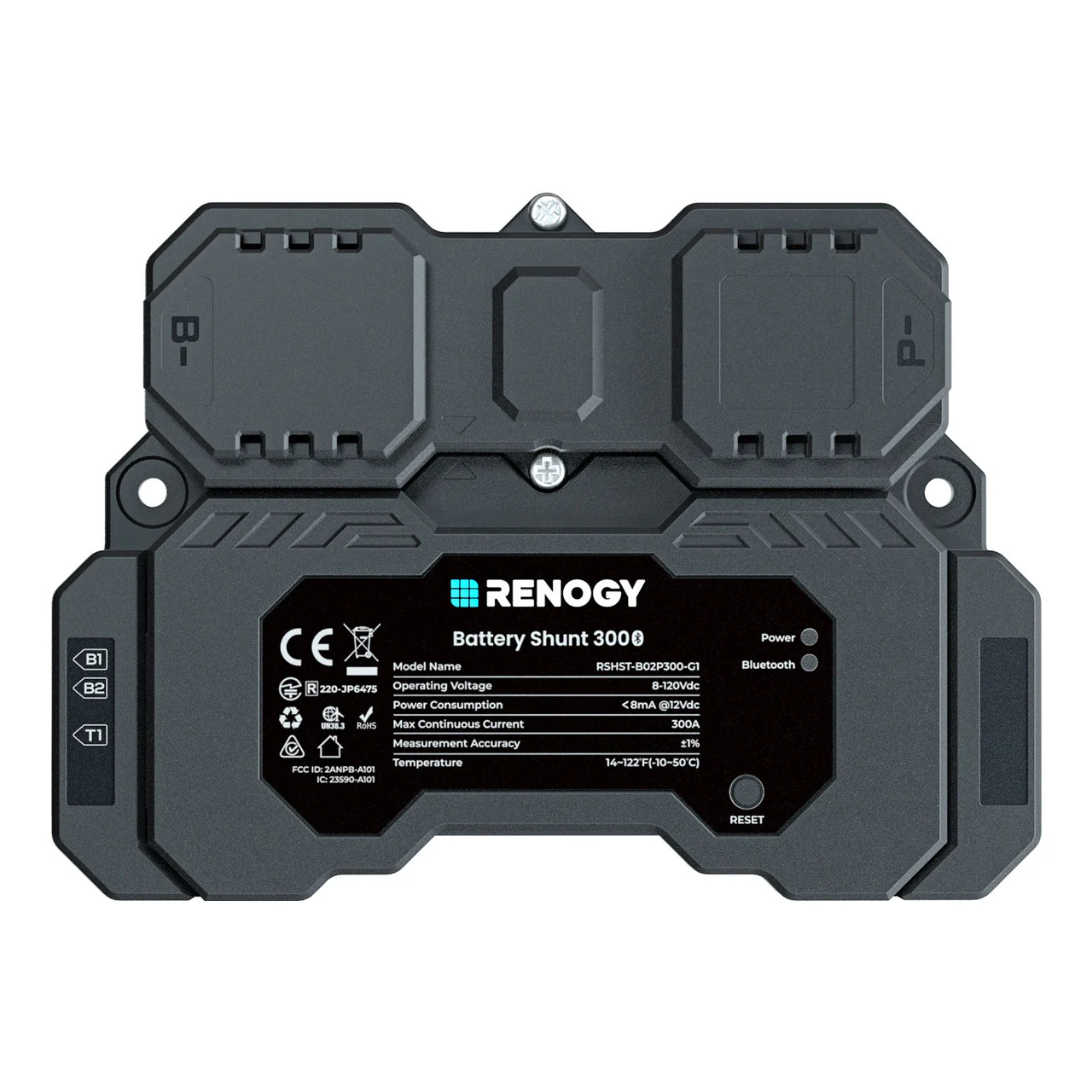

Renogy Battery Shunt 300 with Bluetooth
Renogy Battery Shunt 300 with Bluetooth
Ensure remote monitoring and control of your battery with Renogy Battery Shunt 300, a Bluetooth enabled shunt that not only displays state of charge, temperature and started battery voltage but also records data and triggers alerts via DC Home App.
Compatible with various batteries including AGM, GEL, Flooded and SLD, the intuitive display on the shunt display real-time date and keeps records of your battery performance through Renogy ONE core and DC home app to make informed decision on your power system.
Tested for highest levels of durability, 5 mins is all it takes to install your shunt either on top of the battery or mounted on the wall. Pair it with Renogy ONE Core or DC Home app as our quick set up guides even newbies to tap into the potential real-time monitoring of their energy system.
Specifications:
Model Name: RSHST-B02P300-G1
Power Supply: 8 - 120 VDC
Power Consumption: <0.1 W
Communication: Bluetooth LE and BLE Mesh
Max continuous current: 300A
Max peak current: 500A(<10s)
Current accuracy: ±1%
Current Resolution: 0.01 A
Battery Capacity: 1 - 6500Ah
Voltage Input Range: 8 - 60V
Voltage input resolution: 10 mV
Temperature sensor range: -20~80℃
Temperature sensor accuracy: ±1%
Operating Temperature: -4℉~122℉(-20 ℃ to 50 ℃)
Operating Humidity: 0% to 95% RH
Operating Altitude: Less than 2000m above sea level
Installation: mounted on the wall
Battery connection: M10 bolts
Weight: 0.57lb (260g )
Dimensions: 5.27 x 3.82 x 1.22 inch (134 x 97 x 31 mm)
Warranty: 1 year
What's in the Box:
1 x Battery Shunt 300
1 x Quick Guide
3 x Mounting Screws
2 x B+ Wires (1 m) (22 AWG)
1 x Temperature Sensor (1.5 m)
1 x User Manual
