RENOGY 40A Solar Charge Controller with Core
RENOGY 40A Solar Charge Controller with Core

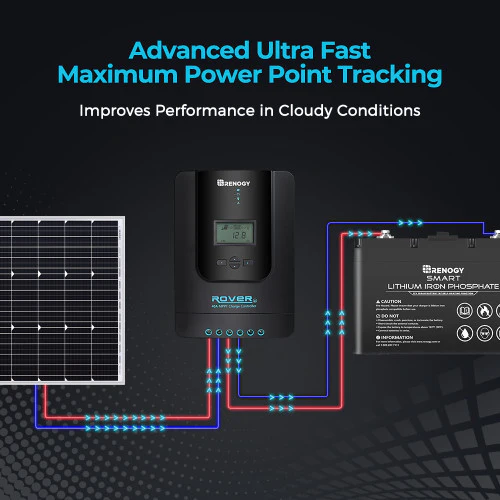

Renogy introduces the Rover Li 40 Amp MPPT Solar Charge Controller with intuitive visuals and real-time data, an uber-cool way to monitor sustainable energy. Our 3-in-1 smart panel provides 99% tracking efficiency, 98% conversion efficiency and a 30% increased power harvest.
Renogy 40A Rover guarantees optimal solar power charging and energy conversion to boost up your battery bank. This MPPT Charge Controller with core can automatically detect 12V/24V lead acid battery systems and can also work with Sealed (SLD), GEL and Flooded (FLD) batteries.
A clever Battery Management System (BMS) is in place to trigger the protection mode of dead batteries and activate them with a small current. Pair it with Renogy BT-1 Module and with DC Home app you can now monitor and control parameters from the comfort of your couch!
Highlights:
- Real time monitoring, Custom Charging Parameters
- LiFePO4 battery compatibility
- 5 modes to match your power needs
- 8 certified electronic protections for safe battery charging
- Built-in external temperature sensor to avoid under-charging and over-charging in all weather conditions
- Robust design with heat sink allows optimal charging efficiency
Specifications:
RENOGY ROVER 40 AMP MPPT SOLAR CHARGE CONTROLLER (RNG-CTRL-RVR40)
Nominal System Voltage: 12/24V Auto-Detect
Rated Charge Current: 40A
Max. PV Input Voltage: 95 VDC
Max. PV Input Power: 12V/520W, 24V/1040W
Power Consumption: ＜100mA/12V; ＜58mA/24V
Max Battery Voltage: 32V
Ground Type: Negative
Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
Protection Level: IP32
Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity: ≤ 90%, No Condensation
Temperature Compensation: -3mV/°C/2V
Dimensions: 9.38 x 6.78 x 3.05 in
Weight: 4.41 lb
Max. Terminals Size: 8 AWG 10mm2
Temperature Sensor: 9.8ft cable length
CE: YES
FCC Class B Part 15 Compliant: YES
Material and workmanship warranty: 2 Year
RENOGY BT-1 BLUETOOTH MODULE (RCM-BT1)
Compatible PWM Charge Controller: RNG-CTRL-WND10/RNG-CTRL-WND30-LI/RNG-CTRL-ADV30-LI
Compatible MPPT Charge Controller: RNG-CTRL-RVR20/RNG-CTRL-RVR30/RNG-CTRL-RVR40/ RNG-CTRL-RVR60S/RNG-CTRL-RVR100
Compatible App: Renogy DC Home App available in both the App Store and Google Play
Communication Protocol: RS232
Port Type: RJ12
Input Voltage : 5V
Protection Grade: IP54
Standby Power Consumption: 0.04W
Operating Power Consumption: 0.05W
Serial Baud Rate: Fixed Baud Rate 9600bps
Communication Range: ≤82ft (25m)
Cable Length: 16.4 ft (5.00m )
Dimensions: 2.65 X 1.38 X 0.55 in
Weights: 4.58oz
Operation Temperature: -4°F to 185°F ('-20℃~85℃)
FCC Class B Part 15 Compliant: YES
Material and workmanship warranty: 2 Year
Charge Controllers: Rover
What's in the Box:
1 x Rover Li 40Amp MPPT charge controller
1 x Remote Temperature Sensor
4 x Mounting Brackets
1 x BT-1 Bluetooth Module
1 x User Manual
