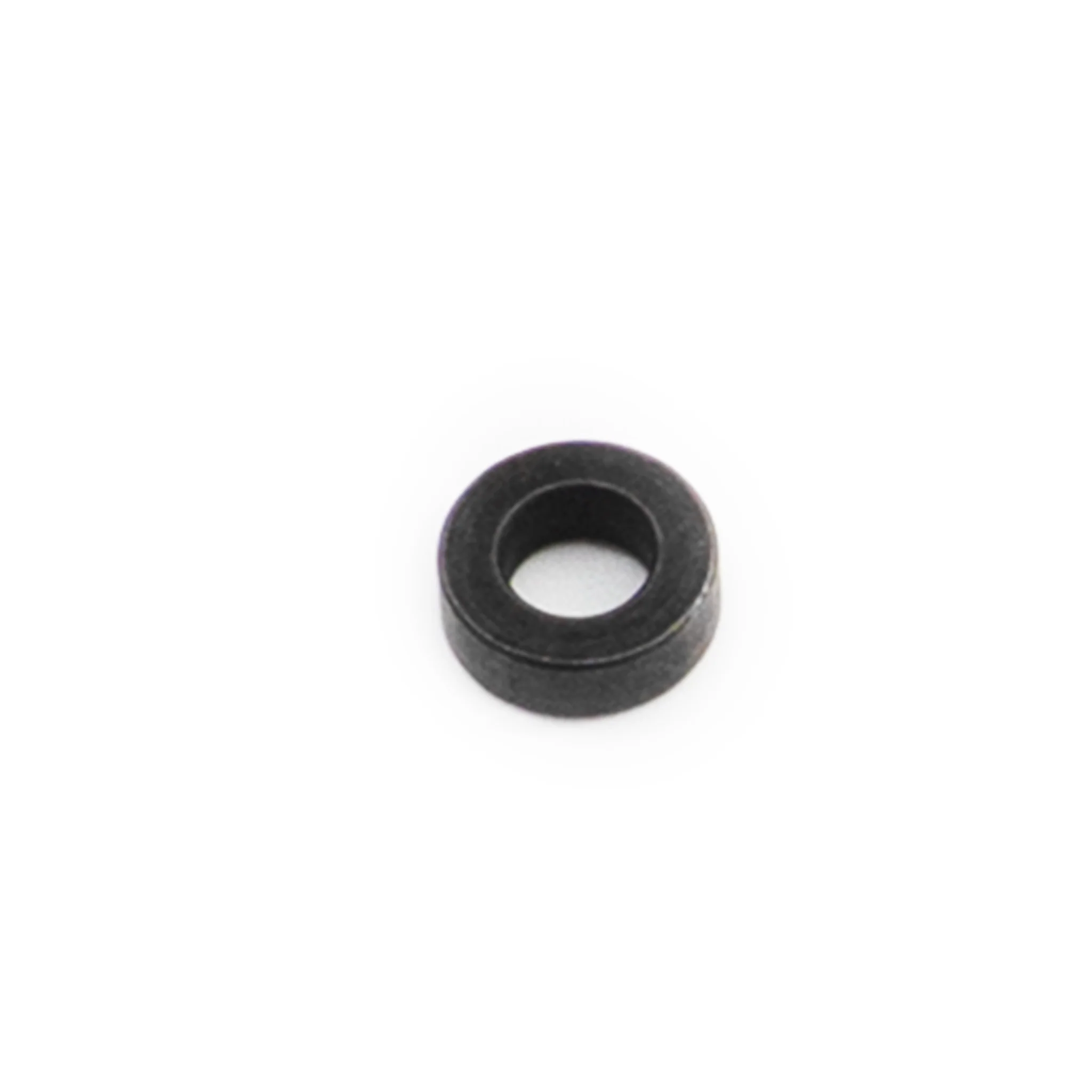

Pressing Plate Spacer of E-CBS-1010 Series

The Pressing Plate Spacer is a compact, high-precision component designed to maintain accurate spacing and load distribution between the pressing plate and associated components in E-CBS-1010 series systems. This small yet critical part enhances the structural integrity and performance consistency of pressing assemblies.

Key Features:

• Precision Machined Geometry:
  Designed with tight dimensional tolerances to ensure exact spacing and parallel alignment in high-precision press setups.

• Reinforced Build:
  Manufactured from durable alloy steel to withstand compression forces without deformation, making it ideal for repetitive press operations.

• Smooth Finish:
  The spacer’s surface is finely finished to reduce friction and wear, supporting stable, low-maintenance operation within the mechanical system.

• Compact, Low-Profile Design:
  Its thin ring-shaped structure allows for easy integration into tight spaces without interfering with press motion or alignment.

Applications:

• Spacing and alignment between pressing plates and structural components

• Load distribution and vibration damping in modular press systems

• Spacer support in fixture assemblies or tooling stations

• Ideal for use with E-CBS-1010 Series pressing assemblies

Specifications:

• Material: Alloy Steel

• Finish: Black oxide

• Shape: Circular spacer with central bore

• Mounting: Fits over bolts or shafts beneath press plates

• Compatibility: E-CBS-1010 Series components
