AUDIO AND VIDEO
\n| INPUT PORTS: | \n1x HDMI Type A [19-pin female] | \n\n |
| \n | 1x RS232 [Phoenix connector] | \n\n |
| \n | 1x Firmware [Mini USB] | \n\n |
| OUTPUT PORTS: | \n1x HDMI Type A [19-pin female] | \n\n |
| \n | 1x L/R Audio Out [3.5mm Stereo Mini-jack] | \n\n |
| \n | 1x Optical Out [S/PDIF] | \n\n |
COMPLIANCES
\n| HDMI Compliance | \nHDMI 2.0b | \n
| HDCP Compliance | \nHDCP 1.4 & HDCP 2.2 | \n
VIDEO OUTPUT
\n| Video Bandwidth: | \n18 Gbps | \n
| Video Resolutions: | \nUp to 4K@60Hz | \n
| Color Space: | \nRGB, YCbCr 4:4:4, YCbCr 4:2:2YCbCr 4:2:0 | \n
| Color Depth: | \n10-bit, 12-bit | \n
SWITCHES
\n| Resolutions: | \nPress the button to switch output resolution. Long press for 5 seconds output resolution will be set to 720p@60Hz | \n
| EDID: | \nPress the button to change EDID value. Long press for 5 seconds, the scaler will back to factory default setting | \n
| Enter: | \nPress the button to save setting, long press for 5 seconds will do software update for the scaler (The update process in last page) | \n
SUPPORTED RESOLUTIONS
\n| Input Resolution: | \n640x480@60Hz, 720x576i@50Hz, 1024x768@60Hz 1280x768@60Hz, 1365x1024@60Hz, 1856x1392@60Hz, 1920x1440@60Hz, 3840x2160@25Hz, 4096x2160@30Hz 4096x2160@50Hz, 720x480i@60Hz, 720x576p@50Hz, 1152x864@75Hz, 1280x960@60Hz, 1600x1200@60Hz 1920x1080@60Hz, 3840x2160@24Hz, 4096x2160@24Hz, 3840x2160@50Hz, 4096x2160@60Hz 720x480p@60Hz, 800x600@60Hz, 1024x768@75Hz, 1280x1024X60Hz, 1680x1050@60Hz 1920x1200@60Hz, 3840x2160@30Hz, 4096x2160@25Hz, 3840x2160@60Hz | \n
| Output Resolutions: | \n1024x768@60Hz, 1280x800@60Hz, 1600x1200@60Hz 1920x1080@50Hz, 3840x2160@50Hz 1280x720@50Hz, 1360x768@60Hz, 1680x1050@60Hz 1920x1080@60Hz, 3840x2160@60Hz 1280x720@60Hz, 1400x1050@60Hz 1920x1200@60Hz, 3840x2160@30Hz, 3840x2160@25Hz | \n
AUDIO OUTPUT
\n| HDMI Audio Formats: | \nLPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X | \n
| Optical Audio Formats: | \nLPCM 2CH,LPCM 5.1,Dolby Digital 2/5.1CH, DTS2/5.1CH | \n
| L/R Audio Formats: | \nAnalog Stereo 2CH | \n
SIGNALS
\n| TMDS Signal: | \n\n3.3V \n | \n
| DDC Signal: | \n\n5V \n | \n
SUPPORTS SCREEN FLIP, DOWNSCALER FUNCTION
\n| Screen Flip Function: | \nYes | \n
| Downscaler Function: | \nYes | \n
DIMENSIONS & WEIGHT
\n| Height: | \n25mm | \n
| Width: | \n115mm | \n
| Depth: | \n100mm | \n
| Weight: | \n450g | \n
PROTECTION
\n| Operation Temperature: | \n0°C ~ 40°C / 32°F ~ 104°F | \n
| Storage temperature: | \n-20°C ~ 60°C / -4°F ~ 140°F | \n
| Relative Humidity: | \n20~90% RH (non-condensing) | \n
| ESD Protection: | \nHuman-body Model：±8kV (Air-gap discharge), ±4kV (Contact discharge) | \n
POWER
\n| Power Consumption (Max): | \n8W | \n\n | \n | \n | \n |
| \n | \n | \n | |||
| Power Supply | \nInput: | \nAC100~240V 50/60Hz | \n\n | \n | \n |
| \n | Output: | \nDC 12V/1A(US/EU standards，CE/FCC/UL certified) | \n\n | \n | \n |
PHYSICAL PROPERTIES
\n| Color: | \nBlack | \n
| Housing: | \nMetal Enclosure | \n

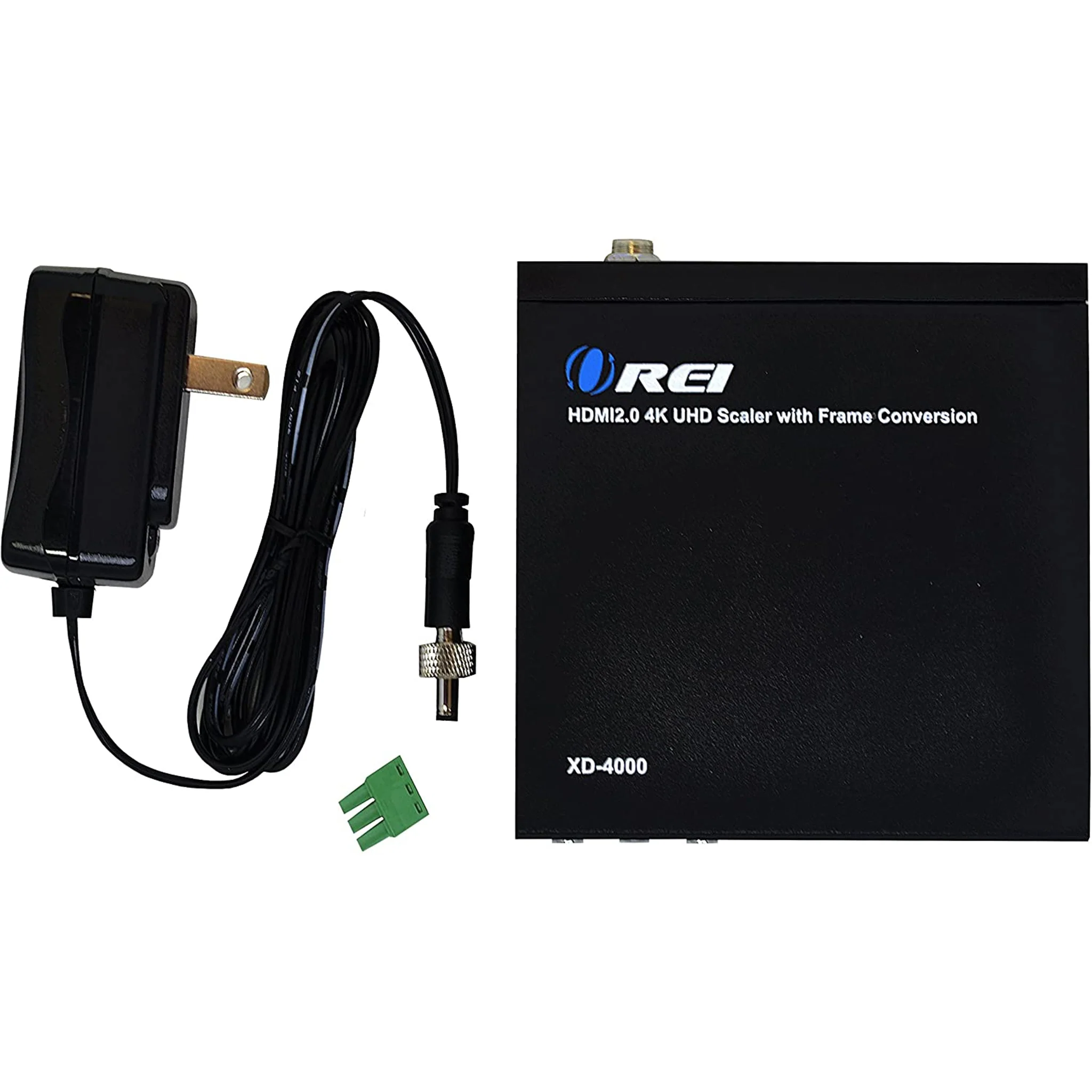

PACKAGE CONTENTS
\n| 1x HDMI Video Converter | \n
| 1x 12V/1A Power Adapter | \n
| 1x User Manual | \n
WARRANTY
\n| 1-Year Manufacturer's Warranty | \n

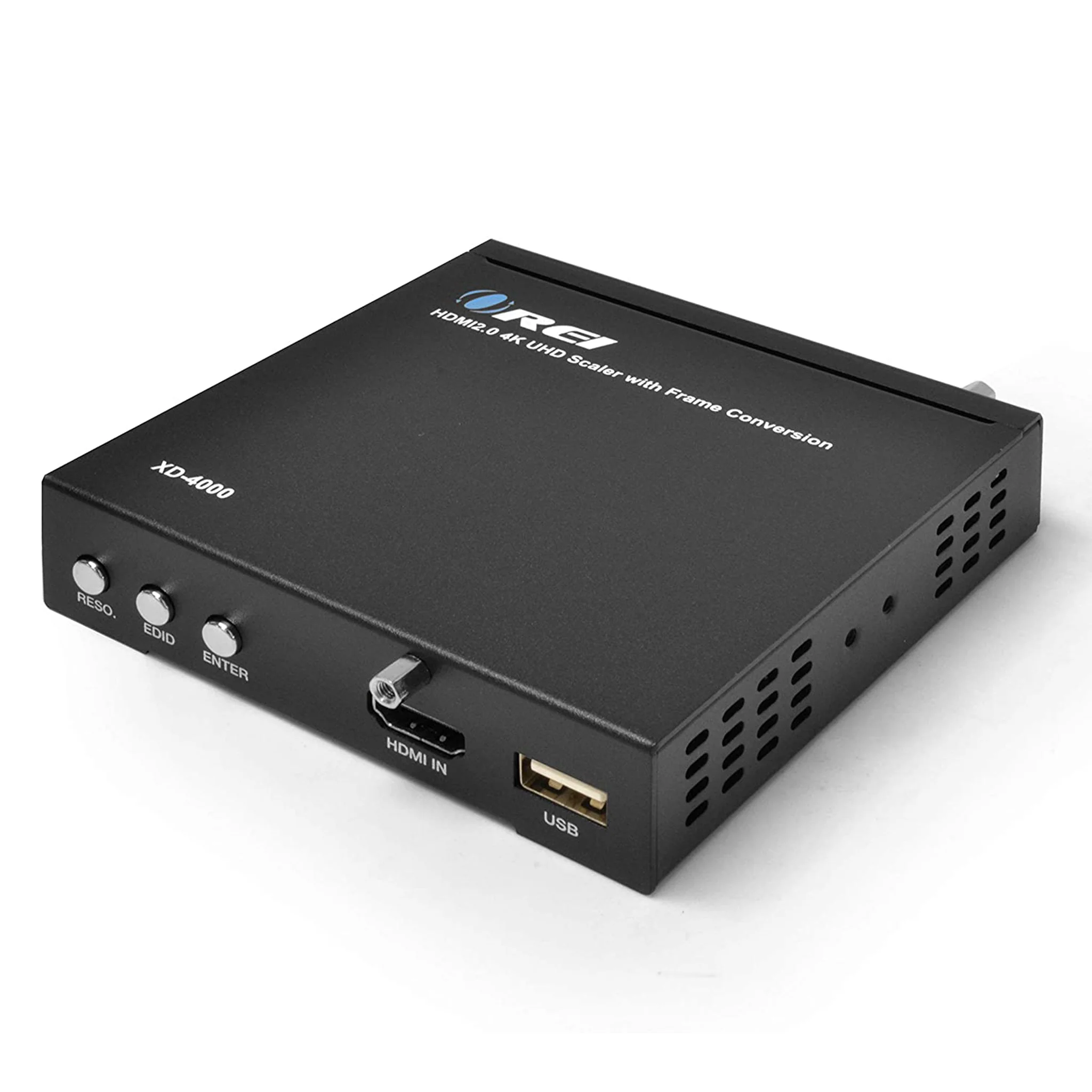

Premium 4K HDMI to HDMI Scaler with PAL to NTSC Conversion(XD-4000)
OREI XD-4000: 4K HDMI PAL to NTSC Converter with Scaler
- HDMI 2.0b (18Gbps), HDCP 1.4/2.2 compliant
- UP scaling video resolution up to 4K2K@50/60Hz (YUV444)
- Downscaling video resolution up to 1024x768@60Hz
- Exacts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- Supports Dolby True HD, Dolby Digital Plus, and DTS - HD Master Audio plus LPCM(up to 192kHz)
- Front panel buttons, OSD and RS-232 Control
- Manually Set output to a specific resolution
- Adaptive de-interlacing support
- Ideal for the purpose where the resolution is mismatched or experiencing EDID or HDCP issues
This scaler is a high performance, HDMI 2.0, HDCP 1.4/2.2 compliant scaler capable of upscale and downscale among Ultra HD/4K, Full HD, and HD resolutions with frame converting support. It accepts a wide range of resolutions from 480i up to 4K@60Hz4:4:4 and output resolutions up to 4K@60Hz4:4:4 with digital and analog audio extraction. It provides one HDMI input and one HDMI output and the scaler automatically scale any input signal to match the native resolution of the display or any connected HDMI device Or output can be set to a specific resolution. It supports a data rate up to18Gbps with 4K@60Hz 4:4:4 color format which is HDMI 2.0 specification.
The scaler features front panel buttons or OSD (On-Screen Display) menu or RS-232 control for scaler configuration.
HDMI Audio: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X.
[shortdes]
- Supports up scaling video resolutions up to 4K@50/60Hz (YUV444) and downscaling video resolutions to 1024x768@60Hz
- Supports CEC bypass
- Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
[tab1]
FAQs
Yes, XD-4000 supports screen flip function
Yes, XD-4000 will bypass the HDCP
The XD-4000 comes with the latest firmware installed, please contact us if you face any issues & we will help you out
Please contact us with your requirements & we will help you to choose the right product for your requirements
Below is the link where you can sign up for the wholesaler account:
https://www.orei.com/pages/wholesale-order
You can visit the below link to register for extended warranty:
https://www.orei.com/pages/warranty-registration
Please contact us if you face any issues while registering for the extended warranty
The following are the ways by which you can contact us:
- Via call: 847-983-4761 between Mon - Fri 9:30am - 5:00pm CST
- Via email: Please email us at [email protected] & we will respond you within 24 hours
- Via contact us form: Please visit the contact us form by visiting the link to contact us:
https://www.orei.com/pages/contact-us
