Inspired Flight IF800 Quadcopter with Blue Herelink GCS

Inspired Flight IF800 Quadcopter with Blue Herelink GCS

Inspired Flight IF800 Quadcopter is a professional-grade, NDAA-compliant drone designed for teams that require operational security, reliability, and modular performance in the field.

Built and supported in the U.S., the IF800 is part of the DoD’s Blue UAS list, making it approved for federal and critical infrastructure use.

This lightweight quadcopter delivers high endurance, heavy payload capacity, and full integration with the Herelink Ground Control Station, allowing for long-range encrypted communication and real-time video transmission.

Ideal for inspection, mapping, defense, and public safety use cases, the IF800 gives you enterprise capabilities without compromise.

Key Features of the Inspired Flight IF800 Quadcopter

Every detail of the IF800 is engineered for professionals who operate in high-stakes environments, where secure data and mission readiness are non-negotiable.

• Blue UAS Certified
  Fully NDAA-compliant and approved for government, defense, and federally funded operations
• Lightweight, Foldable Airframe
  Carbon fiber arms reduce weight while maximizing rigidity and portability
• Up to 40-Minute Flight Time
  Supports extended missions with typical payloads
• Herelink Ground Control Station
  Integrated controller with encrypted video/data transmission, custom UI, and long-range telemetry
• Multiple Payload Configurations
  Compatible with EO/IR sensors, LiDAR, mapping cameras, and custom mounts
• GNSS Denied Navigation
  Add onboard capabilities for GPS-restricted environments
• Designed and Manufactured in the USA
  Supported by Inspired Flight’s California-based engineering and support teams


Use Cases for the IF800 in Government, Industrial, and Tactical Missions

The IF800 excels in field conditions that demand durability, modularity, and operational security—from federal inspection contracts to tactical overwatch.

• Infrastructure Inspection
  Carry radiometric, visual, or LiDAR payloads to inspect towers, bridges, and substations
• Energy Sector Monitoring
  Evaluate thermal signatures and detect faults in wind farms, solar installations, or utility corridors
• Public Safety & Law Enforcement
  Conduct overwatch, search and rescue, or surveillance without relying on cloud-connected systems
• Disaster Response
  Map flood zones, collapsed structures, or environmental hazards with high-resolution payloads
• Defense & Tactical Operations
  Deploy in contested or GPS-denied environments using secure comms and offline mission planning
• Custom R&D & Integrations
  Supports specialized payloads or use cases through open architecture and SDK access


Why Choose the Inspired Flight IF800 for Secure UAS Operations

When compliance, control, and mission adaptability matter, the IF800 quadcopter stands out. As a Blue UAS-listed platform, it offers government-approved security, U.S.-based manufacturing, and field-tested durability, all while supporting a range of payloads and advanced flight capabilities.

Specifications:

Performance

• Max Ascent Speed: 5 m/s (16 ft/s)
• Max Descent Speed: 3 m/s (10 ft/s)
• Max Air Speed: 22 m/s (49 mph)
• Max Wind Resistance: 10 m/s, 12 m/s gusts (19 knots, 23 knot gusts)
• Max Tilt Angle: 30°
• Max Angular Velocity: Tilt: 300°/s, Yaw: 120°/s
• Operating Temperature: -20°C to 45°C (-4°F to 113°F)
• Operating Humidity: IP43, 5% to 99%

Physical Features

• Diagonal Size (propeller center to center): 905 mm (35.6 inches)
• Unfolded Size (flight ready, WxLxH): 132 x 114 x 52 cm (51.8 x 44.8 x 20.3 inches)
• Folded Size (stow, WxLxH): 36 x 44 x 20 cm (14.2 x 17.4 x 7.8 inches)
• Empty Weight (without batteries): 4.2 kg (9.2 lbs)
• Weight with Batteries: 8.5 kg (18.7 lbs)
• Max Gross Takeoff Weight: 11.5 kg (25.3 lbs)
• Max Payload Capacity: 3.0 kg (6.6 lbs)
• Transport Case Size (WxLxH): 52.8 x 80.7 x 31.7 cm (20.8 x 31.8 x 12.5 inches)
• Transport Case Weight (with aircraft & GCS): 18 kg (40 lbs)

Flight Stack

• Flight Controller: CubePilot Cube Blue H7, Triple Redundant IMU
• GNSS / Compass: Dual CubePilot Here4 Blue
• Downward Ground Sensor: LightWare SF000/B
• Payload Power Rails: 6s Battery Voltage 5v, 12v, 18v
• Payload Interface: IF800 Universal Payload Interface
• Operating Software: Copter by Ardupilot

Flight Modes

• Position Hold: Automatically holds altitude and position, manually change position
• Loiter: Holds altitude and position, precision manual movements using GPS
• Auto: Executes pre-defined waypoint mission
• RTL (Return to Launch): Auto returns to takeoff location and lands
• Land: Auto land while maintaining horizontal position
• Altitude Hold: Holds altitude only, failsafe mode if GPS signal lost

What's in the Box:

1 x IF800 Quadcopter

1 x Blue Herelink Ground Control Station

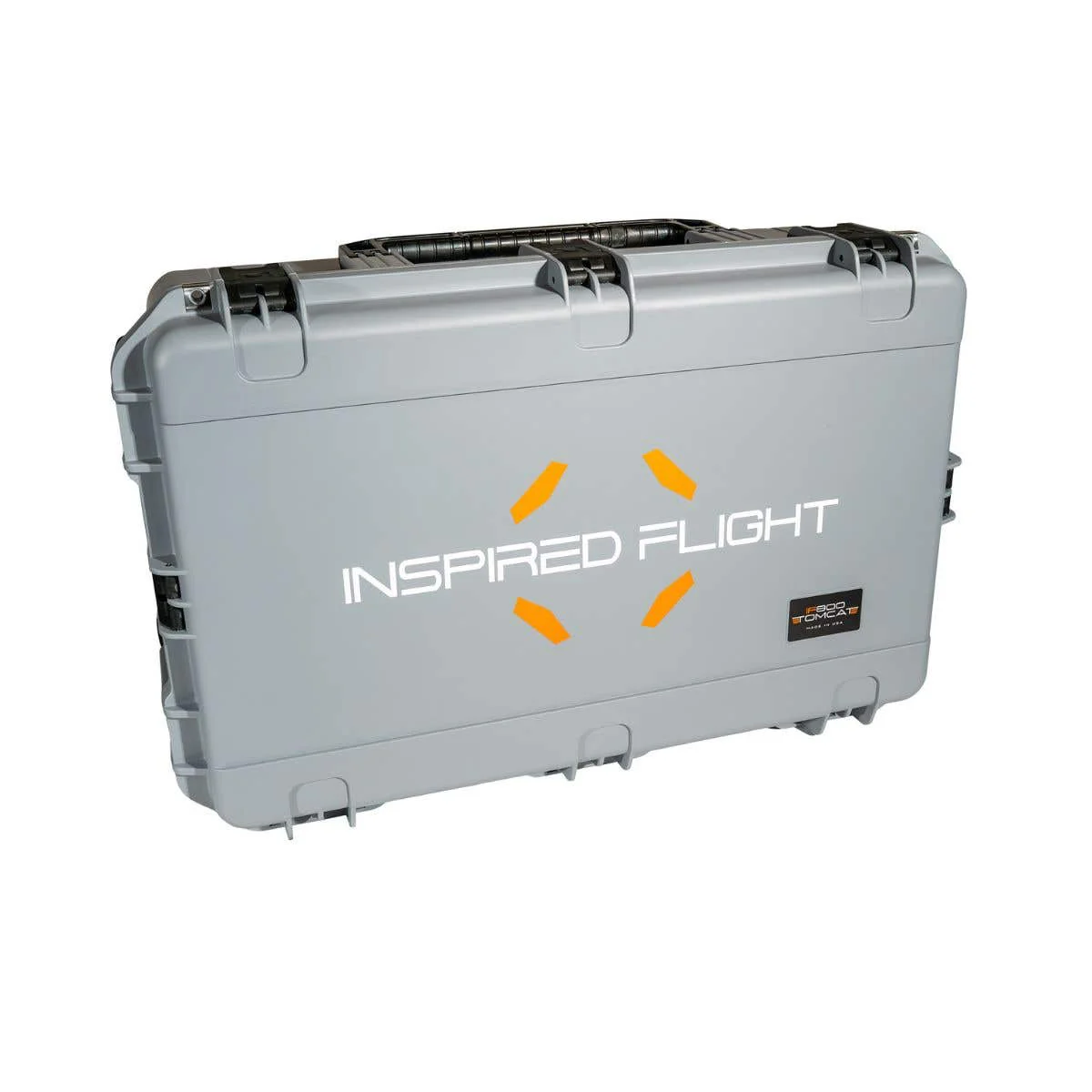

1 x Rugged Transport Case

1 x Charger Set

2 x Flight Batteries
