FLIR T865-42-NIST || FLIR T865 High-Performance Thermal Camera w/42° Lens

FLIR T865-42-NIST || FLIR T865 High-Performance Thermal Camera w/42° Lens

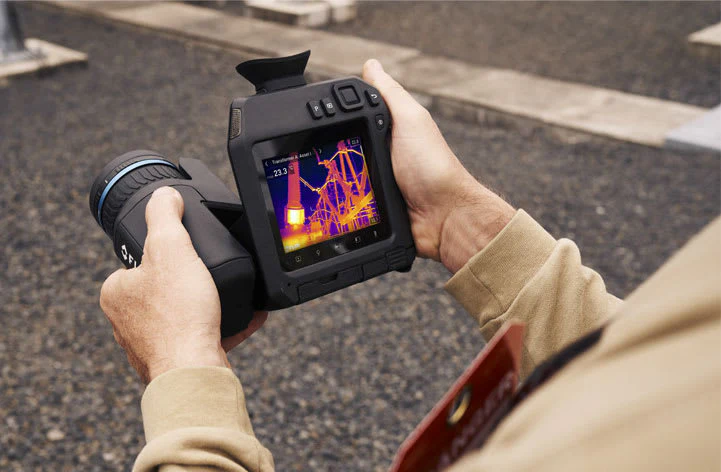

The FLIR T865 thermal imaging camera is a non-contact inspection tool with 180° rotating optical block that allows users to safely and comfortably assess the condition of critical electrical and mechanical equipment in utility and manufacturing applications. With advanced features including unmatched temperature measurements down to -40°C, accuracy as good as 1°C/1%, 1-Touch Level/Span contrast enhancement, and laser–assisted autofocus, you'll get highly accurate temperature measurements every time. Pair the T865 with a FLIR FlexView™ dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning; or choose a 6° FOV IR lens to perform inspections on small targets from long distances. The on-board Inspection Route system helps you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.

Specifications:

Highlighted
IR Resolution	640 × 480 pixels
Thermal Sensitivity/NETD	<30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens)
Accuracy	±2°C (±3.6°F) or ±2% of reading
Field of view (FOV)	80° × 63°
Digital Camera	5 MP, with built-in LED photo/video lamp; disabled when 6° or 80° lens in use
Display	4", 640 x 480 pixel touchscreen LCD with auto-rotation
Storage Media	Removable SD card

Imaging & Optical
Color Palettes	Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Detector Type and Pitch	Uncooled microbolometer, 12 µm
Digital Camera	5 MP, with built-in LED photo/video lamp; disabled when 6° or 80° lens in use
Digital Zoom	1-8x continuous
f-number	42° lens: 1.1, 24° lens: 1.3, 14° lens: 1.5, 6° lens: 1.35, 80° lens: 1.3,
Field of View	42° × 32° 24° × 18°
Field of view (FOV)	80° × 63°
Focal Length	42°: 10 mm (0.39 in) 24°: 17 mm (0.67 in) 14°: 29 mm (1.41 in) 6°: 70 mm (2.80 in) 80°: 5 mm (0.19 in)
Focus	Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual
Image Frequency	30 Hz
IR Resolution	640 × 480 pixels
Lens	24°, 14°, 42°, 80°, 6°, DFOV (24°, 14°), DFOV (42°, 24°)
Lens Identification	Automatic
Minimum Focus Distance	42° lens - 0.15 m; 24° lens - 0.15 m, optional macro mode; 14° lens - 1.0 m; 6° lens - 5.0m; 80° lens - 0.1m;
Minimum Focus Distance with MSX	FLIR T865 + DFOV (14° + 24°): .5 m (1.64 ft) / 1.0 m (3.28 ft) FLIR T865 + Dual FOV (24° + 42°): 42°: 0.65 m (1.98 ft) 24°: 0.5 m (1.64 ft)
Non-radiometric IR video streaming	H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture	Resizable and movable
Radiometric IR video recording	Real-time radiometric recording (.csq)
Radiometric IR video streaming	Yes, over UVC
Resolution	464 × 348 pixels (VGA)
Spatial resolution (IFOV)	42°: 1.2 mrad/pixel 24°: 0.7 mrad/pixel
Spectral Range	7.5 - 14.0 µm
Thermal Sensitivity/NETD	<30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens)
UltraMax	Quadruples pixel count; activated in menu and processed in FLIR reporting software.
Video Lamp	Built-in LED light
Viewfinder	Yes
Visual Image	Yes
Visual Video Recording	H.264 to memory card
Visual Video Streaming	Yes

Measurement & Analysis
Accuracy	±2°C (±3.6°F) or ±2% of reading
Measurement Presets	No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range	-40°C to 120°C (-40°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 2000°C (572°F to 3632°F)
Reference Temperature	Yes
Spot Meter	10 ea. in live mode

User Interface
Display	4", 640 x 480 pixel touchscreen LCD with auto-rotation
Text	Predefined list or touchscreen keyboard
Touch Screen	Optically bonded PCAP
Voice	60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

Communication & Data Storage
Communication Interfaces	USB 2.0, Bluetooth, Wi-Fi
Image File Format	Standard JPEG with measurement data included
Image Storage Mode	Infrared, visual, MSX®, Picture-in-Picture
METERLiNK	Yes
Storage Media	Removable SD card
Time Lapse	10 sec to 24 hrs
USB	USB Type-C: data transfer/video/power
USB - Standard	USB 2.0 High Speed
Video Out	DisplayPort over USB Type-C

Power
Battery operating time	Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery Type	Li-ion battery, charged in camera or on separate charger
Power Management	Automatic shut-down and sleep mode

Environmental & Certifications
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Safety	EN/UL/CSA/PSE 60950-1
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Tripod Mounting	UNC 1/4"-20

General
Compatible with FLIR software	FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
Laser Pointer	Yes
Packaging	Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
Packaging Size	500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)
Size (L x W x H)	•Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.)

What's in the Box:

• 1 x NIST traceable calibration certificate
• 1 x Infrared camera with lens
• 1 x Small viewfinder eye cup
• 2 x rechargeable batteries
• 1 x Battery charger
• 1 x Hard transport case
• 1 x Lanyards
• 1 x Front lens cap
• 1 x Power supplies
• 1 x Printed documentation
• 1 x SD card (8 GB)
• 1 x Cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
• 1 x License card for 3 month trial: FLIR Thermal Studio Pro + FLIR Route Creator Plugin for Thermal Studio Pro
