FLIR T1020 High-Definition Thermal Camera -40°C to 2000°C w/28° Lens

FLIR T1020 High-Definition Thermal Camera 1024 x 768 Resolution/30Hz, -40°C to 2000°C w/28° Lens

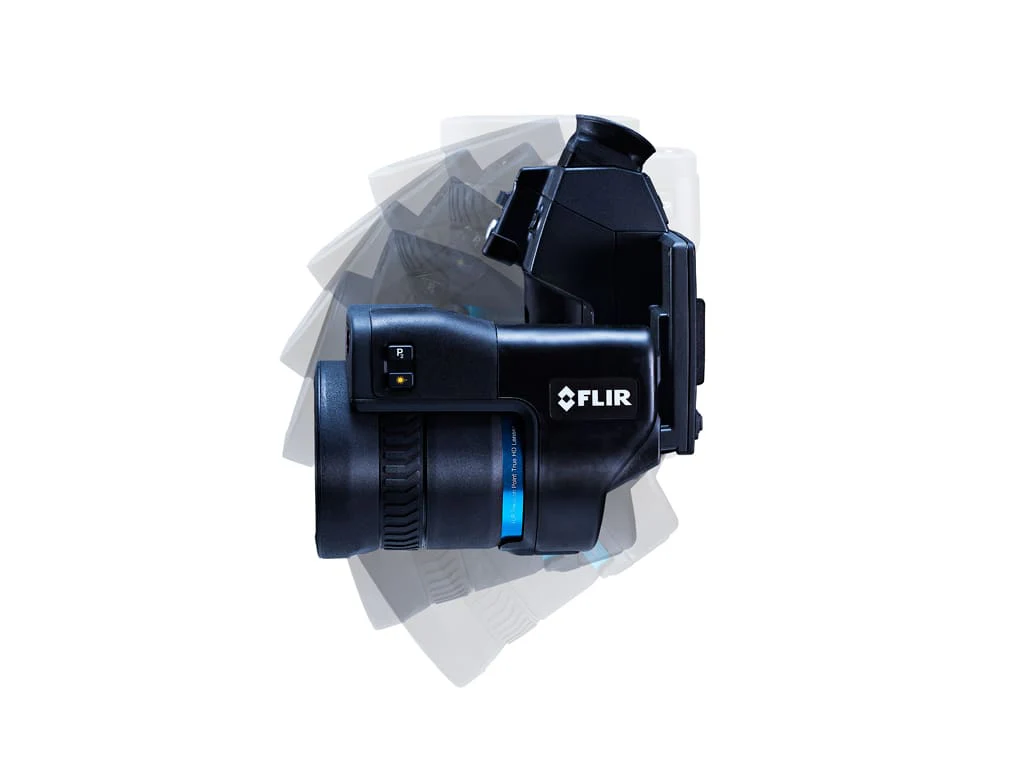

Get ready for outstanding thermal infrared performance, built on 50 years of experience. With its remarkable range, up to 3.1 MP in resolution, and customization to fit your needs, the T1K is designed to be the ultimate tool to streamline your workday, and make you the hero. For the sharpest images, the truest temperatures, the most flexibility – the T1K is the ultimate result of five decades of infrared expertise. The T1K is designed to be compact, streamlined, and easy to use. FLIR’s engineers focused on advancing the thermal and optics technology without adding bulk to the overall T-Series design. The result is a thermal camera that works with you. The viewfinder plus the 120° rotating optical block allow you to point the T1K in multiple directions while maintaining a comfortable position. The glare-reducing eyecup on the high resolution viewfinder improves scanning in daylight conditions. And, the joystick and programmable buttons let you control the camera with a finger or thumb – no need to change your grip.

Specifications:

IR Sensor	1024 × 768 (786,432 measurement pixels)
Thermal Sensitivity/NETD	< 0.02°C at +30°C
Lens Choices	12°, 28°, 45°, 3x Close-up
Minimum Focus Distance	0.2m (0.66 ft.) to 0.8m (2.13 ft.), depending upon the lens
Image Frequency	30 Hz
Spectral Range	7.5 - 14 µm
4.3” Display	800 x 480 pixels
Auto Orientation	Yes
Touch Screen	Yes
Image Presentation Modes
Thermal Image	Yes
Visual Image	Yes
UltraMax ™	Unique super-resolution process quadruples pixel count, up to 3.1 MP
MSX ®	Embosses visual details on full resolution thermal image, for clear text and location identication
Gallery	Yes
Accuracy	±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal
Measurement Tools	10 spotmeters, 5+5 areas (boxes, circles) with min./max./average
Emissivity Correction	Variable from 0.01 to 1.0 or selected from materials list
Measurements Correction	Emissivity, reected temperature, relative humidity, atmospheric temperature, object distance, external IR window compensation
Color Palettes	Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
Storage Media	Removable SD card (Class 10)
Image File Format	Standard JPEG, including digital photo and measurement data
Radiometric IR-Video Recording	Real-time radiometric recording to SD card
Non-Radiometric IR-Video Recording	H.264 to SD card
Radiometric IR-Video Streaming	Real-time radiometric streaming via USB
Non-Radiometric IR-Video Streaming	H.264 video using Wi-Fi or USB
Digital Camera	FOV adapts to the IR lens
Video Lamp	Built-in LED light
USB, Connector Type	USB Micro-AB Data transfer to and from PC/Uncompressed colorized video
Battery	Rechargeable Li-ion polymer battery
Battery Operating Time	> 2.5 hours at 25°C (+68°F)
Charging System	In camera (AC adapter or 12 V from a vehicle) or 2-bay charger
Charging Time	2.5 hours to 90% capacity
External Power Operation	AC adapter, 90-260 VAC input, 50/60 Hz or 12 V output from a vehicle (cable with standard plug, optional)
Power Management	Automatic power-off functionality, user-congurable
Storage Temp. Range	-40°C to +70°C (-40°F to 158°F)
Weight	1.9 kg (4.3 lb.) to 2.1 kg (4.6 lb.), depending upon lens model
Tripod Mounting	UNC ¼”-20



What's in the Box:

• 1 x Infrared camera with 12° lens
• 2 x Battery
• 1 x Battery charger
• 1 x HDMI-HDMI cable
• 1 x Hard transport case

• 1 x Large eyecup
• 1 x Lens cap
• 1 x Neck strap
• 1 x Power supply, including multi-plugs
• 1 x USB cable, Standard A to Micro-B
• 1 x Calibration certificate (NOT NIST Traceable)
• 1 x FLIR Thermal Studio license card
• 1 x User documentation on CD-ROM
• 1 x Printed documentation
• 1 x Bluetooth headset
• 1 x SD card
