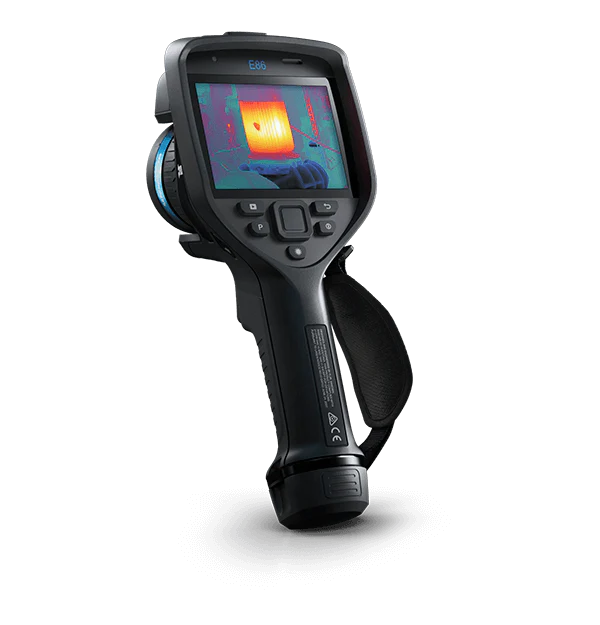

FLIR E86-24-14-42-NIST Advanced Thermal Camera w/MSX 464 x 348 Resolution/30Hz w/24°-14°-42° Lens w/NIST
FLIR E86-24-14-42-NIST Advanced Thermal Camera w/MSX 464 x 348 Resolution/30Hz w/24°-14°-42° Lens w/NIST
FLIR E86-24-14-42-NIST Advanced Thermal Camera w/MSX 464 x 348 Resolution/30Hz w/24°-14°-42° Lens w/NIST
The FLIR E86 delivers fast, accurate detection and, with a FlexView™ lens, instantly switches from wide-area to telephoto scanning. This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E86 images directly from the camera to the cloud for easy, secure storage and sharing.
All FLIR Exx-Series cameras now come with a free credit to attend a FLIR Academy training session—a $399 value.
Laser Distance Measurement
The laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²).
Intelligent AutoCal Optics
Interchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
Streamlined Reporting
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E86 streamline your workday. (*Optional accessory software).
SPECIFICATIONS:
| Highlighted | |
|---|---|
| IR Resolution | 464 × 348 pixels |
| Thermal Sensitivity/NETD |
<30 mK, 42° at 30°C (86°F) <40 mK, 24° at 30°C (86°F) <50 mK, 14° at 30°C (86°F) <40 mK, 80° at 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Field of view (FOV) |
FLIR E86 42°: 42° × 32° FLIR E86 24°: 24° × 18° FLIR E86 14°: 14° × 10° FLIR E86 80°: 80° × 63° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Imaging & Optical | |
|---|---|
| Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Digital Zoom | FLIR E86 14°, FLIR E86 24° - NIST, FLIR E86 24°, FLIR E86 24° - Refurbished, FLIR E86 42°, FLIR E86 42° - NIST, FLIR E86 24° + 42°, FLIR E86 24° + 14°, FLIR E86 24°, 14° + 42°, FLIR E86 24°, 14° + 42° - NIST, FLIR E86 42° + 14°, FLIR E86 Dual FOV 14° + 24°, FLIR E86 80°: 1-4× continuous FLIR E86 + Dual FOV (24°+ 42°) + 14°, FLIR E86 + Dual FOV (24°+ 42°): 1-8× continuous |
| f-number |
FLIR E86 14°: 1.5 FLIR E86 24°, FLIR E86 80°: 1.3 FLIR E86 42°: 1.1 |
| Field of View | 42° × 32°, 24° × 18°, 14° × 10° |
| Field of view (FOV) |
FLIR E86 42°: 42° × 32° FLIR E86 24°: 24° × 18° FLIR E86 14°: 14° × 10° FLIR E86 80°: 80° × 63° |
| Focal Length |
42°: 10 mm (0.39 in) 24°: 17 mm (0.67 in) 14°: 29 mm (1.41 in) 80°: 5 mm (0.19 in) |
| Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Image Frequency | 30 Hz |
| IR Resolution | 464 × 348 pixels |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m, 42° 0.15 m, 24° 1.0 m, 14° |
| Minimum Focus Distance with MSX | 42°: 0.65 m (1.98 ft) 24°: 0.5 m (1.64 ft) 14°: 1.0 m (3.28 ft) |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spatial resolution (IFOV) | 80°: 3.6 mrad/pixel 42°: 1.66 mrad/pixel 24°: 0.90 mrad/pixel 14°: 0.52 mrad/pixel |
| Spectral Range | 7.5-14 µm |
| Thermal Sensitivity/NETD |
<30 mK, 42° at 30°C (86°F) <40 mK, 24° at 30°C (86°F) <50 mK, 14° at 30°C (86°F) <40 mK, 80° at 30°C (86°F) |
| UltraMax | Yes |
| Viewfinder | No |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F) |
| Spot Meter | 3 ea. in live mode |
| User Interface | |
|---|---|
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® |
| Communication & Data Storage | |
|---|---|
| Communication Interfaces | USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
| Image File Format | Standard JPEG with measurement data included. Infrared-only mode |
| Image Storage Mode | Infrared, Visual, MSX®, Picture-in-Picture, Gallery |
| METERLiNK | Yes |
| Storage Media | Removable SD card |
| Time Lapse | 10 seconds to 24 hours (infrared) |
| Video Out | DisplayPort over USB Type-C |
| Power | |
|---|---|
| Battery operating time | >2.5 hours at 25°C (68°F) and typical use |
| Battery Type | Rechargeable Li-ion battery |
| Environmental & Certifications | |
|---|---|
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| General | |
|---|---|
| FLIR Inspection Route | Enabled in camera |
| Laser Pointer | Yes |
WHAT'S IN THE BOX:
1 x FLIR E86-24-14-42-NIST Advanced Thermal Camera w/MSX 464 x 348 Resolution/30Hz w/24°-14°-42° Lens w/NIST
2 x Rechargeable Batteries
1 x Battery Charger
1 x Hard Transport Case
1 x Lanyard
1 x Front Lens Cap
1 x Power Supply
1 x SD Card (8 GB)
1 x USB 2.0 Type-A to USB Type-C Cable
1 x USB Type-C to HDMI Cable
1 x USB Type-C to USB Type-C Cable
1 x Printed Documentation
1 x FLIR Thermal Studio Starter License Card
Original: $19,569.00
-70%$19,569.00
$5,870.70FLIR E86-24-14-42-NIST Advanced Thermal Camera w/MSX 464 x 348 Resolution/30Hz w/24°-14°-42° Lens w/NIST
