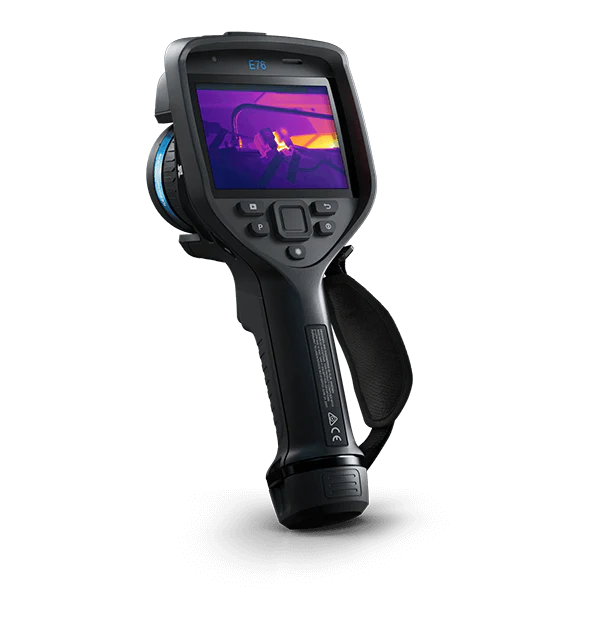

FLIR E76 Advanced Thermal Camera- FLIR E76-42-14
FLIR E76 Advanced Thermal Camera- FLIR E76-42-14
The FLIR E76 offers complete coverage of near and distant targets through a range of lens options. A step up from the FLIR E54, the E76 includes laser-assisted autofocus and 3 area measurement boxes. The 320× 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E76 images directly from the camera to the cloud for easy, secure storage and sharing.
All FLIR Exx-Series cameras now come with a free credit to attend a FLIR Academy training session—a $399 value.
One Lens, Two Fields of View
Pair your Exx-Series camera with a FLIR FlexView dual field-of-view lens to conveniently switch from wide-area to telephoto scanning with one push of a button.
Improved Contrast for Faster Diagnosis
Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.
Streamlined Reporting
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday. (*Optional accessory software).
The FLIR E76 Advanced Thermal Camera (FLIR E76-42-14) combines powerful 320 × 240 thermal resolution with MSX® image enhancement and dual 42° wide-angle and 14° telephoto AutoCal™ lenses for maximum inspection versatility
SPECIFICATIONS:
| Highlighted | |
|---|---|
| IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity/NETD | <30 mK, 42° at 30°C (86°F) <40 mK, 24° at 30°C (86°F) <50 mK, 14° at 30°C (86°F) <40 mK at, 80° 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Field of view (FOV) | FLIR E76 42°: 42° × 32° FLIR E76 24°: 24° × 18° FLIR E76 14°: 14° × 10° FLIR E76 80°: 80° × 63° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Imaging & Optical | |
|---|---|
| Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Digital Zoom | FLIR E76 14°, FLIR E76 24° - NIST, FLIR E76 24° - No Radio, FLIR E76 24° - Refurbished, FLIR E76 24°, FLIR E76 42° - NIST, FLIR E76 42°, FLIR E76 24° + 14°, FLIR E76 24° + 42°, FLIR E76 24°, 14° + 42° - NIST, FLIR E76 24°, 14° + 42°, FLIR E76 42° + 14°: 1-4× continuous FLIR E76 Dual FOV 14° + 24°, FLIR E76 80°, FLIR E76 + Dual FOV (24° + 42°), FLIR E76 + Dual FOV (42° + 24°) + 14°: 1-8× continuous |
| f-number | FLIR E76 14°: 1.5 FLIR E76 24°, FLIR E76 80°: 1.3 FLIR E76 42°: 1.1 |
| Field of View | 42° × 32°, 24° × 18°, 14° × 10° |
| Field of view (FOV) | FLIR E76 42°: 42° × 32° FLIR E76 24°: 24° × 18° FLIR E76 14°: 14° × 10° FLIR E76 80°: 80° × 63° |
| Focal Length | 42°: 10 mm (0.39 in) 24°: 17 mm (0.67 in) 14°: 29 mm (1.41 in) 80°: 5 mm (0.19 in) |
| Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Image Frequency | 30 Hz |
| IR Resolution | 320 × 240 pixels |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m, 42° 0.15 m, 24° 1.0 m, 14° |
| Minimum Focus Distance with MSX | 42°: 0.65 m (1.98 ft) 24°: 0.5 m (1.64 ft) 14°: 1.0 m (3.28 ft) |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spatial resolution (IFOV) | 80°: 5.2 mrad/pixel 42°: 2.41 mrad/pixel 24°: 1.31 mrad/pixel 14°: 0.75 mrad/pixel |
| Spectral Range | 7.5-14 µm |
| Thermal Sensitivity/NETD | <30 mK, 42° at 30°C (86°F) <40 mK, 24° at 30°C (86°F) <50 mK, 14° at 30°C (86°F) <40 mK at, 80° 30°C (86°F) |
| UltraMax | Yes |
| Viewfinder | No |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F). 300 to 1000°C (572 to 1832°F) range available with purchase of T199559 High Temperature Option |
| Spot Meter | 3 ea. in live mode |
| User Interface | |
|---|---|
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® |
| Communication & Data Storage | |
|---|---|
| Communication Interfaces | USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
| Image File Format | Standard JPEG with measurement data included. Infrared-only mode |
| Image Storage Mode | Infrared, Visual, MSX®, Picture-in-Picture, Gallery |
| METERLiNK | Yes |
| Storage Media | Removable SD card |
| Time Lapse | 10 seconds to 24 hours (infrared) |
| Video Out | DisplayPort over USB Type-C |
| Power | |
|---|---|
| Battery operating time | >2.5 hours at 25°C (68°F) and typical use |
| Battery Type | Rechargeable Li-ion battery |
| Environmental & Certifications | |
|---|---|
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F |
| General | |
|---|---|
| FLIR Inspection Route | Enabled in camera |
| Laser Pointer | Yes |
WHAT'S IN THE BOX:
1 x Infrared Camera with Lens
2 x S2 Batteries
1 x Battery Charger
1 x Hard Transport Case
1 x Lanyards
1 x Front Lens Cap
1 x Power Supply
1 x Printed Documentation
1 x SD Card (8 GB)
1 x USB 2.0 A to USB Type-C Cable
1 x USB Type-C to HDMI Cable
1 x USB Type-C to USB Type-C Cable
1 x License Card – FLIR Thermal Studio Starter
Original: $10,599.00
-70%$10,599.00
$3,179.70FLIR E76 Advanced Thermal Camera- FLIR E76-42-14
