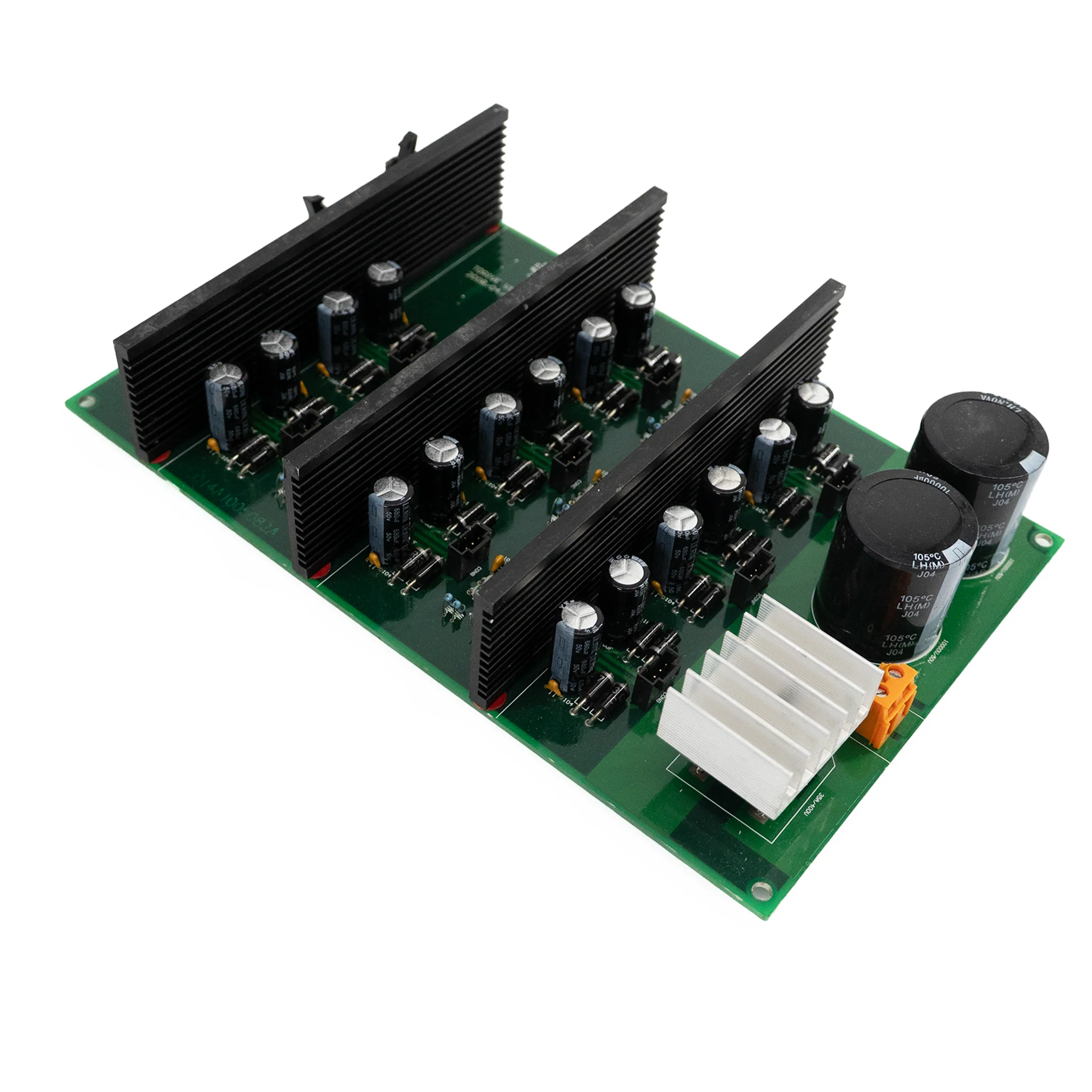

Drive Board for E-PARALLAX-1413

Overview

The Drive Board for E-PARALLAX-1413 is a precision-engineered power control module responsible for managing the actuation of the multi-head combination weigher's individual hoppers. Built for high-frequency operation in demanding industrial environments, this board ensures accurate timing, stable voltage delivery, and thermal protection across all actuator channels.

---

Key Features

• Tailored Compatibility: Custom-designed for the E-PARALLAX-1413, ensuring flawless integration with its main control system and synchronized operation of up to 14 weighing heads.

• High Power Delivery: Provides stable and consistent current to drive solenoids, actuators, or other electromechanical components with minimal ripple and voltage drop.

• Thermal Efficiency: Equipped with large anodized black aluminum heat sinks to dissipate heat from high-current switching components.

• Robust Power Filtering: Features oversized electrolytic capacitors for ripple suppression, enabling noise-free and stable actuation performance.

---

Component Breakdown

• Power Section:

  • 2x High-capacitance Electrolytic Capacitors for input voltage smoothing

  • 1x Compact Aluminum Heatsink on regulator section

  • Isolated high-current paths to prevent crosstalk and thermal coupling

• Drive Channels:

  • 5 modular power drive banks, each protected by independent black heat sinks

  • High-speed switching transistors or MOSFETs per channel with supporting passives

  • Capacitor and diode pair for each drive loop to ensure clean energy discharge

• Input & Output:

  • Orange terminal block for secure power input

  • Header pin interface for signal input from mainboard
