DJI Matrice 4 Series Charging Hub (100W)

DJI Matrice 4 Series Charging Hub (100W)

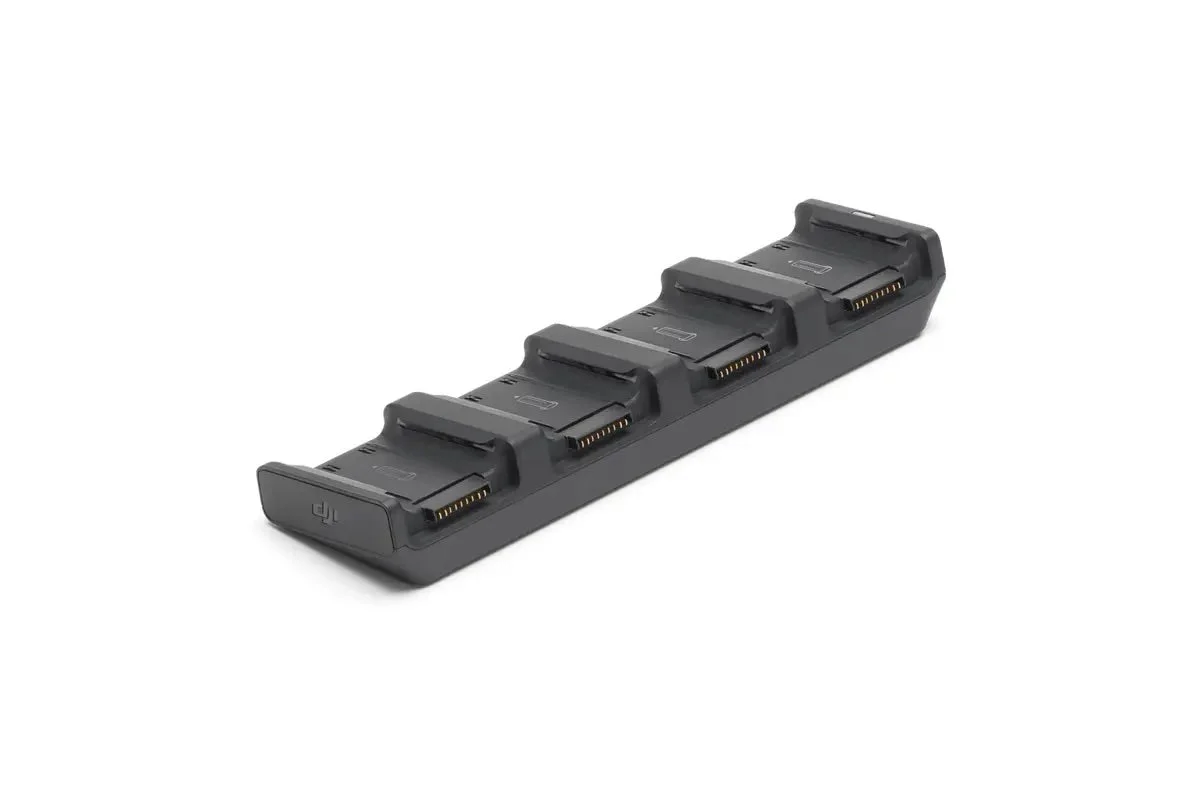

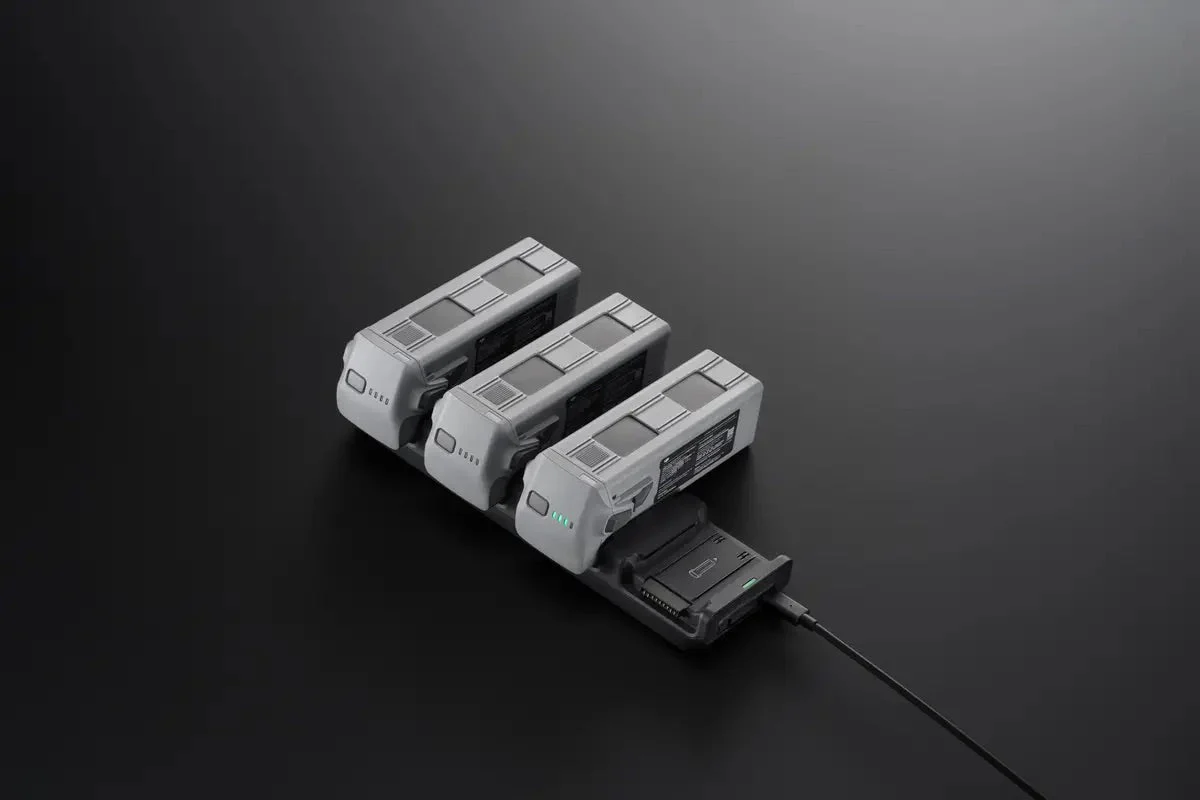

DJI Matrice 4 Series Charging Hub is designed to charge Matrice 4 Intelligent Flight Batteries, allowing for the sequential charging of up to four batteries, from high to low power levels.

The hub offers two modes: Standard Mode and Ready-to-Fly Mode. In Standard Mode, each battery is charged to 100% one at a time, while in Ready-to-Fly Mode, each battery is charged to 90% sequentially and maintained at that level, ensuring quick availability for deployment.

Specifications:

Charging Performance

Rated power: 100 W

Charging method: Sequential charging (up to 4 batteries)

Charging priority: From highest to lowest battery level

Charging modes:

Standard Mode: Charges each battery to 100%

Ready-to-Fly Mode: Charges each battery to 90% and maintains level

Electrical

Input (USB-C): 5–20 V, max 5 A

Output (battery interface): 11.2–17 V

External battery: Not required (powered via USB-C adapter)

Environmental

Operating temperature: 5°C to 40°C (41°F to 104°F)

Physical

Design: Compact multi-slot hub

Build: Portable field-ready construction

Package weight (approx.): ~0.15 kg

What's in the Box:

1 x DJI Matrice 4 Series Charging Hub (100W)
