- Optical/Coxial Digital Audio Extender \n
- Supports one-way PoC function (from receiver to transmitter) \n
- Supports SPDIF Optical Toslink Digital Audio and Coxial 5.1 Channel \n
Digital Audio Over CAT5 Extender Upto 1000 Feet - Extend Digital Optical Coxial Toslink Signal Over Ethernet PoC for Long Distance Extension (DA-EX1000-K)
Digital Audio Over CAT5 Extender Upto 1000 Feet - Extend Digital Optical Coxial Toslink Signal Over Ethernet PoC for Long Distance Extension (DA-EX1000-K)
OREI DA-EX1000-K: Digital Audio Over CAT5e Extender
- Optical/Coaxial Digital Audio Extender
- Extend Audio Signal up to 1000 Feet (300m) over Cat5e/6 Cable. For Maximum Distance please use a high-quality CAT cable
- Full HD Audio - Supports SPDIF Optical Toslink Digital Audio and Coaxial 5.1 Channel
- Dolby Digital 5.1, DTS 5.1, DTS-HD, LPCM and PCM when used as a straight digital in/digital out extender
- NOTE: Does not support the transmission of DTS-HD Master or Dolby TrueHD Audio formats (7.1)
- Extends digital audio over CAT5 - Distances upto 192 - 330 Feet (100m), 96K - 500 Feet (150m), 48K - 1000 Feet (300m)
- Support one-way POC function. The transmitter is powered on by the receiver through the CAT cable
- Easily Extracts and Splits Audio Signals
- Simultaneously use Coaxial and Optical outputs at the Receiver end. However, only 1 input source can be used at the Transmitter end
- HDMI 2.0, HDCP 2.2 Compliant
- Includes 100-240 50/60 Hz auto-switching power supply for use anywhere in the world
- Lifetime OREI Tech Support & 12-Month Manufacturer's Warranty

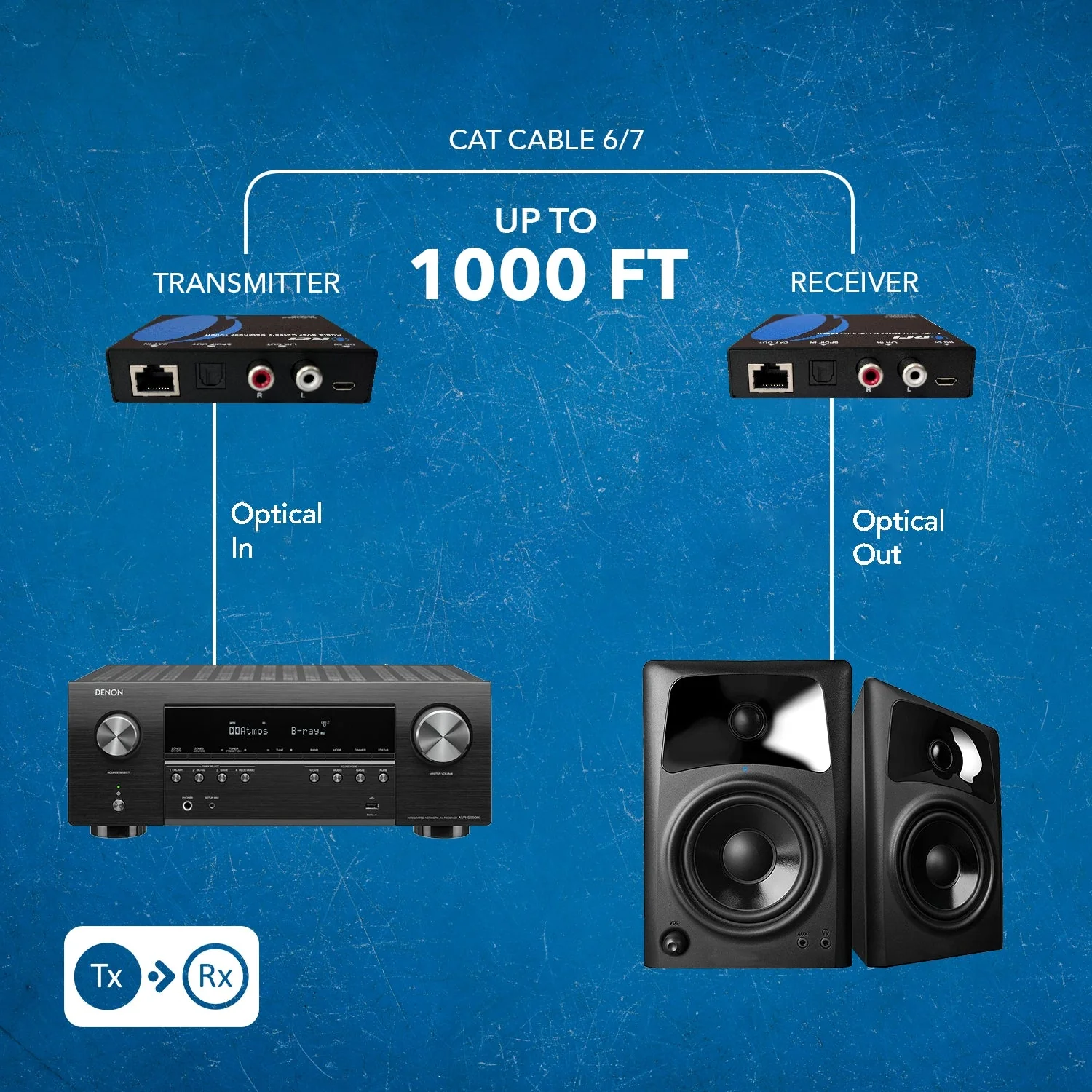

The OREI DA-EX1000-K Digital Audio Extender box allows you to transmit up to 192K audio signal up to 330 feet, 96K up to 500 feet and 48K up to 1000 feet. This will allow you to keep your media devices in your media closet and still be able to listen to great audio through your home theater or spears remotely.
Perfect for Home Theater Rooms, Living Room, Family Room and other Media Centers. Supports coaxial and optical Toslink digital audio 5.1, Dolby Digital 5.1, DTS-HD 5.1, DTS-HD, and PCM (NOTE: DOES NOT support DTS-HD Mater or Dolby TrueHD 7.1 Audio formats)
- Optical/Coxial Digital Audio Extender
- Supports SPDIF Optical Toslink Digital Audio and Coxial 5.1 Channel
- One-Way Power Over Cable (PoC)
[/summary]
[tab]AUDIO AND VIDEO
| Transmitter: | INPUT PORTS: | 1x Optical (Toslink) |
| 1x Coaxial SPDIF RCA | ||
| OUTPUT PORTS: | 1x RJ45 | |
| Receiver: | INPUT PORTS: | 1x RJ45 |
| OUTPUT PORTS: | 1 × Optical (Toslink) | |
| 1x Coaxial SPDIF RCA | ||
| 1x Analog Stereo 3.5mm Audio Jack |
EXTENDING DISTANCE
| 1000 Feet |
AUDIO OUTPUT
| Supported Audio Formats: | LPCM, DTS, Dolby Digital and Dolby Digital Plus when used as a straight digital in/digital out extender |
| Sample Rates: | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit resolution |
| Bitrate over Distance: | 192kHz - 100m, 96kHz - 150m, 48kHz - 300m |
DIMENSIONS & WEIGHT
| Casing-Dimensions: | Height: | 64mm |
| Width: | 69mm | |
| Depth: | 24mm | |
| Dimensions-with connections: | Height: | 64mm |
| Width: | 76mm | |
| Depth: | 28mm | |
| Weight: | 400g | |
PROTECTION
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
| ESD Protection: | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Electrostatic Protection of the whole Machine: | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
POWER
| Power Supply: | 5V/1A DC |
PHYSICAL PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
PACKAGE CONTENTS
| 1x Audio Transmitter |
| 1x Audio Receiver |
| 1x 5V/1A Power Supply |
| 4x Mounting Ears |
| 1x User Manual |
WARRANTY
| 1 - Year Manufacturer's Warranty |
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 1000 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
