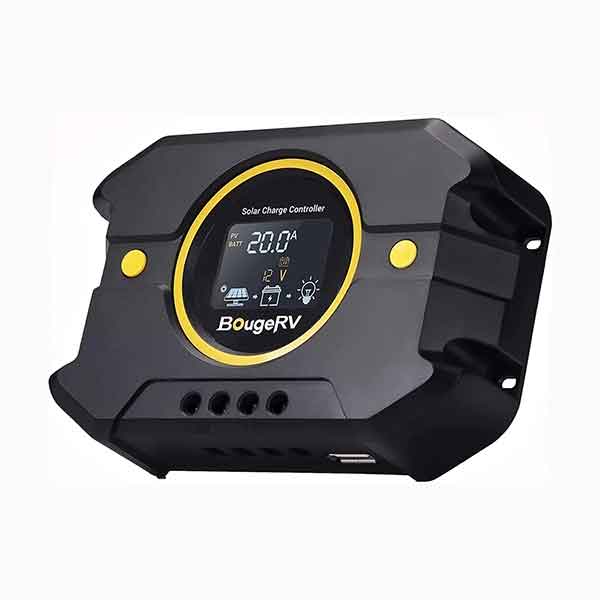

BougeRV Li 20A PWM Solar Charge Controller 12V 24V
BougeRV Li 20A PWM Solar Charge Controller 12V 24V
Regulate your solar charging with BougeRV guaranteed Li 20A PWM Solar Charge Controller. Designed for 12V / 24V lithium battery it protects the battery from overcharging, overheating and other power related issues. An intelligent 20A regulator, it cycles the PV input current and battery voltage every 3 second with real-time values toĀ prevent any kind of damage to the equipment.Ā
With user friendly buttons, clear read display and a USB port for easy charge, the 20A Solar Charge Controller is a must have for your solar system.
Specifications:
System Voltage: 12V/24V
Maximum PV Input Voltage: <55V
Maximum PV Input Power: 300W/12V; 600W/24V
Rated Current: 20A
Screen Type: Black & White
Backlight Display Time: 15sec off without operation
Working Temperature: -31oF ~ 113oF
Protection Level: IP32
Dimensions: 5.51 x 3.74 x 1.27 in
Screen Dimensions: 1.57 x 1.18 in
Net Weight: 0.4 lb
Drill Hole Size: 0.12 x 0.07 in
What's in the Box:
1 x Li 20Amp PWM Solar Charge Controller
