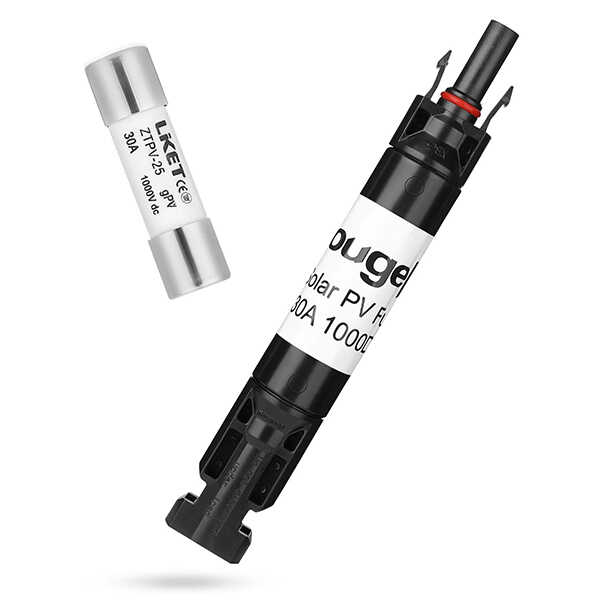

BougeRV 30A Solar Fuse Holder

BougeRV 30A Solar Fuse Holder

BougeRV's 30A Solar Fuse Holder is the seatbelt that protects your solar system as it taps into the unending supply of supreme solar energy. Built to monitor and trip the charge once your solar power has reached it rated amperage, this 30A Solar Fuse Holder is a steal in this price. Cased with the highly graded IP67 waterproof ring it forms a protective ring against extreme weather conditions, especially during power surges on a rainy day.

Features

• UV resistant, highly rigid, strong anti-aging
• Perfect protection for Photovoltaic appliances
• East to install and stable
• Dedicated PV Fuse
• Weather proof protection for rainy days

Specifications

Dimension: 5.1 × 0.71 × 0.71 inch

Weight: 45g/1.59oz

Ambient temperature range: -40℉ to 194 ℉(IEC)

Degree of protection: IP67

Contact material: Copper tin-plated

Insulation material: PPO

Locking system plug connectors: Snap-in

Flame class: UL94-HB / UL94-V0

Rated Voltage: 1000V DC (IEC) / 800V DC (UL)

Rated Current: 30A

Resistance: 0.5 ohm

Cable Size: 2.5 mm², 4 mm², 6 mm²(10awg, 11awg, 12awg, 13awg)

What's in the Box:

1 x 30A Solar Fuse Holder
