Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box)

Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box)

With more thermal imaging detail than the previous generation, the EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging from Autel Robotics provides first responders and industrial inspectors the ability to better pinpoint temperature fluctuations, vehicles, and individuals. You can view real-time thermal information in a variety of ways, including together with visual imaging for better decision-making in the field. The thermal camera is capable of 640 x 512 resolution, while the 50MP visual camera can record up to 4K HDR footage. The foldable design deploys quickly, and the included Smart Controller V3 can operate it from over nine miles away. Throughout each mission, you can rest easy as 360° obstacle avoidance keeps the EVO II safe.

Thermal Camera
The thermal camera is equipped with a 13mm focal length lens and the ability to record at 640 x 512 resolution at 30 Hz. In dangerous situations, you can keep the drone back as you use 16x digital zoom with 4x lossless zoom to find what you're looking for. The V3 thermal image is designed to better display discernible differences and detail. Keep reading to view the array of thermal modes and features the EVO II Dual 640T offers, in addition to its thermal detection, recognition, and identification ranges:





  • Central temperature measurement: View real-time temperatures in the center of the remote's display.
  • Spot temperature measurement: Tap the remote's display and view an object's temperature in real time.
  • Regional temperature measurement: A dynamic view of average, minimum, and maximum temperatures.
  • Ten thermal color palettes: White Hot, Cold and Hot, Rainbow, Enhanced Rainbow, Ironbow, Lava, Arctic, Searing, Gradation, and Heat Detection.
  • Picture-in-picture display mode: View visual and thermal imaging at the same time.
  • Temperature alarm: This will monitor a set temperature in real time and set off an alarm if reached.
  • Isotherm: Set a temperature range and the system will detect any object in view that's within that range.
  • Image enhancement: Real-time adjustment of the thermal image brightness, contrast, and details; the system will highlight any object within the target temperature.
  • Infrared thermal analysis tool: The IRPC tool quickly imports images, edits and analyzes temperature measurements, and generates detailed reports for sharing and collaboration.
  • Detection range: Detects a person up to 0.34 miles away, an SUV from up to 1.03 miles away, and a truck from up to 1.8 miles away.
  • Recognition range: Recognize if an object is a person from up to 443' away, an SUV from 0.26 miles away, and a truck from up to 0.45 miles away.
  • Identification: Identify a person from up to 223' away, an SUV from up to 682' away, and a truck from up to 0.22 miles away.
Visual Camera
Inspections and rescues are not the only things you can do with your EVO II Dual 640T. The 50MP visual camera is capable of capturing stunning professional footage at 4K HDR resolution. With its 0.8" RYYB CMOS sensor instead of a traditional RGB sensor, the larger surface area delivers a high level of detail in high-contrast lighting conditions. Dynamic tracking shots are possible with the quick focusing of the PDAF+CDAF system, and low-light scenes will be clearer thanks to the moonlight algorithm 2.0's increased noise suppression.
Smart Controller V3 with SkyLink 2.0
Utilizing SkyLink 2.0, the Smart Controller V3's built-in 7.9" display can receive HD video transmission in flight from up to 9.32 miles away (or QHD quality from up to 0.62 miles away). Reception is engineered to be stable and interference-free, thanks to triple-band (900 MHz, 2.4 GHz, and 5.8 GHz) frequency hopping. Thanks to the display's 2000 cd/m² brightness, you can easily view the drone's footage, even in direct sunlight. You're not restricted to flying on sunny days, though. The Smart Controller V3 can withstand -4 to 104°F temperatures and is IP43-rated for all-weather performance.
360-Degree Obstacle Avoidance
While in flight, an array of 19 sensors, including 12 visual sensors, the main camera, ultrasound IMUs, and more, can build a 3D map of the drone's surroundings and plan a clear path to its destination in real time.
Additional Features
  • Foldable design
  • Can deploy and take off in under a minute
  • Up to 38 minutes of flight time
  • Up to 39 mph of maximum wind resistance
  • Maximum flight speed up to 45 mph
  • Maximum payload up to 2 lb
  • Can be flown even if the firmware and app are not fully updated
  • Without built-in fly zones, nothing prevents you from taking off when needed
  • The EVO II Dual 640T is not under the United States ITAR (International Traffic in Arms Regulations)
  • Compatible with optional Live Deck 2 for broadcasting live mission intel
Key Specs
Maximum Flight Time
38 Minutes
Remote ID
Yes
Camera System
Wide
1/1.28"-Type CMOS Sensor with 23mm-Equivalent, f/1.9 Lens (1.9° FoV)
Standard
Size-Unspecified CMOS Sensor with Lens
Thermal
Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (33° FoV)
Maximum Video Resolution
Wide
Up to UHD 4K at 60 fps
Thermal
Up to 512p at 25 fps
Still Image Support
Wide
Up to 12.5 MP (DNG / JPEG)
Up to 50 MP (DNG / JPEG)
Up to 8 MP (DNG / JPEG)
Thermal
Up to 2 MP (JPEG)
Up to .9 MP (JPEG)
Up to .3 MP (JPEG)
Sensing System
Omnidirectional with Ultrasonic Enhancement
Control Method
Included Transmitter
Weight
2.5 lb / 1150 g (Takeoff)
4.4 lb / 2000 g (with Maximum Payload)
Performance
Maximum Horizontal Speed
44.7 mph / 71.9 km/h
Maximum Ascent Speed
17.9 mph / 28.8 km/h
Maximum Descent Speed
8.9 mph / 14.3 km/h
Maximum Wind Resistance
26.8 mph / 43.2 km/h
Maximum Take-Off Altitude
4.3 Miles / 7 km
Maximum Flight Time
38 Minutes
Maximum Hover Time
33 Minutes
Maximum Tilt Angle
33°
Hovering Accuracy
Vision Positioning
Vertical: ±0.3' / 0.1 m
Horizontal: ±1.0' / 0.3 m
GNSS
Vertical: ±1.6' / 0.5 m
Horizontal: ±4.9' / 1.5 m
Maximum Angular Velocity
120°/s (Pitch)
Aircraft
Rotor Configuration
Quadcopter
Remote ID
Yes
Aircraft I/O
1x USB-C (Data)
Operating Conditions
14 to 104°F / -10 to 40°C
Imaging
Number of Cameras
2 (Cannot Be Used Simultaneously)
Camera System
Wide
1/1.28"-Type CMOS Sensor with 23mm-Equivalent, f/1.9 Lens (1.9° FoV)
Standard
Size-Unspecified CMOS Sensor with Lens
Thermal
Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (33° FoV)
Zoom
16x Optical
Minimum Focus Distance
Wide
1.6' / 0.5 m
ISO Sensitivity Range
Wide
Photo: 100 to 6400
Video: 100 to 64,000
Night Vision
No
Shutter Speed
Wide
1/8000 to 8 Seconds (Photo)
1/8000 to 1 Seconds (Video)
Maximum Video Resolution
Wide
Up to UHD 4K at 60 fps
Thermal
Up to 512p at 25 fps
Still Image Support
Wide
Up to 12.5 MP (DNG / JPEG)
Up to 50 MP (DNG / JPEG)
Up to 8 MP (DNG / JPEG)
Thermal
Up to 2 MP (JPEG)
Up to .9 MP (JPEG)
Up to .3 MP (JPEG)
Photo Modes
Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot
Media/Memory Card Slot
In Aircraft Body
microSD/microSDHC/microSDXC (UHS-III) [256 GB Maximum / Class 10/U1/V10 or Faster Recommended]
Internal Storage
In Aircraft Body
8 GB
In Remote/Transmitter
128 GB
Gimbal
Number of Axes
3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range
Controllable Range
Yaw (Pan): 180° (-90 to 90°)
Pitch (Tilt): 120° (-90 to 30°)
Mechanical Range
Yaw (Pan): 200° (-100 to 100°)
Pitch (Tilt): 180° (-135 to 45°)
Follow Speed
Tilt: 300°/s
Stabilization Accuracy
±0.005°
Avoidance/Sensing System
Sensing System
Omnidirectional with Ultrasonic Enhancement
Sensing System Capabilities
Forward
Measurement Range: 1.6 to 59.1' / 0.5 to 18 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 60° (Horizontal) / 80° (Vertical)
Backward
Measurement Range: 1.6 to 52.5' / 0.5 to 16 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 60° (Horizontal) / 80° (Vertical)
Lateral
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 65° (Horizontal) / 50° (Vertical)
Upward
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 50° (Front-to-Back) / 65° (Side-to-Side)
Downward
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 80° (Front-to-Back) / 100° (Side-to-Side)
Remote Controller / Transmitter
Control Method
Included Transmitter
Transmission System
Proprietary
900 MHz / 2.4 GHz / 5.1 GHz / 5.8 GHz
Power at 0.9G: 31 dBm (FCC/ISED)
Power at 2.4G: 32 dBm (ISED) / 20 dBm (CE/MIC/SRRC/RCM)
Power at 5.8G: 33 dBm (CE/MIC/SRRC/ISED) / 14 dBm (CE/RCM)
Maximum Operating Distance
9.3 Miles / 15 km
Transmitter I/O
1x USB-C Input (Power)
1x USB-A Output (Expansion)
1x HDMI Output (Video)
Clean Video Output
Not Specified by Manufacturer
Battery Type
Built-In Lithium-Ion Polymer (LiPo) (5800 mAh)
Operating Temperature
-4 to 104°F / -20 to 40°C
Mobile App Compatible
No
Built-In Display
7.9" (2048 x 1536) Touchscreen LCD, 2000 nits/ cd/m2
Flight Battery
Battery Chemistry
Lithium-Ion Polymer (LiPo)
Battery Capacity
7100 mAh / 82 Wh
Battery Configuration
3 S / 11.55 V
Maximum Charging Power
93 W
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
14 to 86°F / -10 to 30°C
Charging Temperature
41 to 113°F / 5 to 45°C
Weight
12.9 oz / 365 g
Charger
Input Power
100 to 240 VAC, 50 / 60 Hz at 1.5 A
Output Voltage
13.2 V, 5 A
12 V, 1.5 A
9 V, 2 A
5 V, 3 A
Power Rating
66 W
General
GNSS Support
GPS, GLONASS, BeiDou, Galileo
Diagonal Size
15.6" / 397 mm
Overall Dimensions
5.1 x 4.3 x 9.1" / 130.0 x 108.0 x 230.0 mm (Folded)
22.0 x 4.3 x 18.0" / 558.0 x 108.0 x 457.0 mm (Unfolded)
Weight
2.5 lb / 1150 g (Takeoff)
4.4 lb / 2000 g (with Maximum Payload)
Packaging Info
Package Weight
22 lb
Box Dimensions (LxWxH)
22 x 19.4 x 10.4"



Items Included

  • Autel Robotics EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging
  • 7.9" Smart Controller with Case
  • 2 x Pair of Propellers
  • Smart Controller USB-C Charging Cable and Power Brick
  • Battery Charger with Wall Cord and Power Converter
  • 3 x Flight Battery
  • Spare Controller Sticks
  • 32GB SD Card
  • Gimbal Cover
  • Smart Controller Hanging Neck Strap
  • RTK Module Attachment Port Cover
  • Enterprise Speaker Attachment
  • Enterprise Search Light Attachment
  • Enterprise Strobe Light Attachment
  • Evo II Battery Car Charger
  • Evo II Battery Multicharger
  • Limited 1-Year Manufacturer Warranty (Drone & Remote)
  • Limited 90-Day Manufacturer Warranty (Battery, Charger & Multi-Charger)
$1,510.20

Original: $5,033.99

-70%
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box)—

$5,033.99

$1,510.20

More Images

Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 2
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 3
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 4

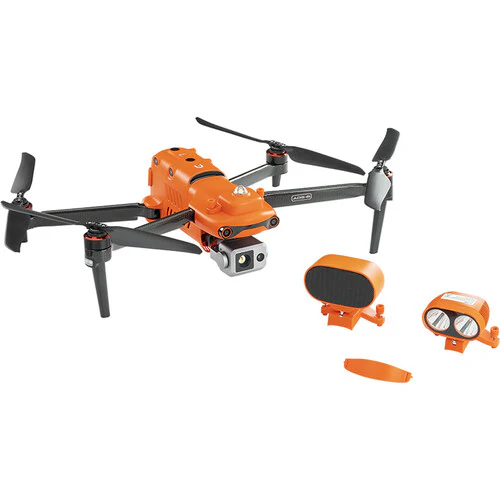

Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 5
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 6
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 7
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 8
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 9
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 10
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 11
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 12
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 13

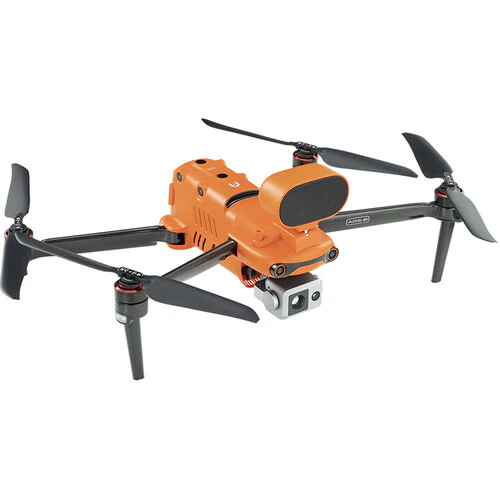

Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) - Image 14

Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box)

With more thermal imaging detail than the previous generation, the EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging from Autel Robotics provides first responders and industrial inspectors the ability to better pinpoint temperature fluctuations, vehicles, and individuals. You can view real-time thermal information in a variety of ways, including together with visual imaging for better decision-making in the field. The thermal camera is capable of 640 x 512 resolution, while the 50MP visual camera can record up to 4K HDR footage. The foldable design deploys quickly, and the included Smart Controller V3 can operate it from over nine miles away. Throughout each mission, you can rest easy as 360° obstacle avoidance keeps the EVO II safe.

Thermal Camera
The thermal camera is equipped with a 13mm focal length lens and the ability to record at 640 x 512 resolution at 30 Hz. In dangerous situations, you can keep the drone back as you use 16x digital zoom with 4x lossless zoom to find what you're looking for. The V3 thermal image is designed to better display discernible differences and detail. Keep reading to view the array of thermal modes and features the EVO II Dual 640T offers, in addition to its thermal detection, recognition, and identification ranges:





  • Central temperature measurement: View real-time temperatures in the center of the remote's display.
  • Spot temperature measurement: Tap the remote's display and view an object's temperature in real time.
  • Regional temperature measurement: A dynamic view of average, minimum, and maximum temperatures.
  • Ten thermal color palettes: White Hot, Cold and Hot, Rainbow, Enhanced Rainbow, Ironbow, Lava, Arctic, Searing, Gradation, and Heat Detection.
  • Picture-in-picture display mode: View visual and thermal imaging at the same time.
  • Temperature alarm: This will monitor a set temperature in real time and set off an alarm if reached.
  • Isotherm: Set a temperature range and the system will detect any object in view that's within that range.
  • Image enhancement: Real-time adjustment of the thermal image brightness, contrast, and details; the system will highlight any object within the target temperature.
  • Infrared thermal analysis tool: The IRPC tool quickly imports images, edits and analyzes temperature measurements, and generates detailed reports for sharing and collaboration.
  • Detection range: Detects a person up to 0.34 miles away, an SUV from up to 1.03 miles away, and a truck from up to 1.8 miles away.
  • Recognition range: Recognize if an object is a person from up to 443' away, an SUV from 0.26 miles away, and a truck from up to 0.45 miles away.
  • Identification: Identify a person from up to 223' away, an SUV from up to 682' away, and a truck from up to 0.22 miles away.
Visual Camera
Inspections and rescues are not the only things you can do with your EVO II Dual 640T. The 50MP visual camera is capable of capturing stunning professional footage at 4K HDR resolution. With its 0.8" RYYB CMOS sensor instead of a traditional RGB sensor, the larger surface area delivers a high level of detail in high-contrast lighting conditions. Dynamic tracking shots are possible with the quick focusing of the PDAF+CDAF system, and low-light scenes will be clearer thanks to the moonlight algorithm 2.0's increased noise suppression.
Smart Controller V3 with SkyLink 2.0
Utilizing SkyLink 2.0, the Smart Controller V3's built-in 7.9" display can receive HD video transmission in flight from up to 9.32 miles away (or QHD quality from up to 0.62 miles away). Reception is engineered to be stable and interference-free, thanks to triple-band (900 MHz, 2.4 GHz, and 5.8 GHz) frequency hopping. Thanks to the display's 2000 cd/m² brightness, you can easily view the drone's footage, even in direct sunlight. You're not restricted to flying on sunny days, though. The Smart Controller V3 can withstand -4 to 104°F temperatures and is IP43-rated for all-weather performance.
360-Degree Obstacle Avoidance
While in flight, an array of 19 sensors, including 12 visual sensors, the main camera, ultrasound IMUs, and more, can build a 3D map of the drone's surroundings and plan a clear path to its destination in real time.
Additional Features
  • Foldable design
  • Can deploy and take off in under a minute
  • Up to 38 minutes of flight time
  • Up to 39 mph of maximum wind resistance
  • Maximum flight speed up to 45 mph
  • Maximum payload up to 2 lb
  • Can be flown even if the firmware and app are not fully updated
  • Without built-in fly zones, nothing prevents you from taking off when needed
  • The EVO II Dual 640T is not under the United States ITAR (International Traffic in Arms Regulations)
  • Compatible with optional Live Deck 2 for broadcasting live mission intel
Key Specs
Maximum Flight Time
38 Minutes
Remote ID
Yes
Camera System
Wide
1/1.28"-Type CMOS Sensor with 23mm-Equivalent, f/1.9 Lens (1.9° FoV)
Standard
Size-Unspecified CMOS Sensor with Lens
Thermal
Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (33° FoV)
Maximum Video Resolution
Wide
Up to UHD 4K at 60 fps
Thermal
Up to 512p at 25 fps
Still Image Support
Wide
Up to 12.5 MP (DNG / JPEG)
Up to 50 MP (DNG / JPEG)
Up to 8 MP (DNG / JPEG)
Thermal
Up to 2 MP (JPEG)
Up to .9 MP (JPEG)
Up to .3 MP (JPEG)
Sensing System
Omnidirectional with Ultrasonic Enhancement
Control Method
Included Transmitter
Weight
2.5 lb / 1150 g (Takeoff)
4.4 lb / 2000 g (with Maximum Payload)
Performance
Maximum Horizontal Speed
44.7 mph / 71.9 km/h
Maximum Ascent Speed
17.9 mph / 28.8 km/h
Maximum Descent Speed
8.9 mph / 14.3 km/h
Maximum Wind Resistance
26.8 mph / 43.2 km/h
Maximum Take-Off Altitude
4.3 Miles / 7 km
Maximum Flight Time
38 Minutes
Maximum Hover Time
33 Minutes
Maximum Tilt Angle
33°
Hovering Accuracy
Vision Positioning
Vertical: ±0.3' / 0.1 m
Horizontal: ±1.0' / 0.3 m
GNSS
Vertical: ±1.6' / 0.5 m
Horizontal: ±4.9' / 1.5 m
Maximum Angular Velocity
120°/s (Pitch)
Aircraft
Rotor Configuration
Quadcopter
Remote ID
Yes
Aircraft I/O
1x USB-C (Data)
Operating Conditions
14 to 104°F / -10 to 40°C
Imaging
Number of Cameras
2 (Cannot Be Used Simultaneously)
Camera System
Wide
1/1.28"-Type CMOS Sensor with 23mm-Equivalent, f/1.9 Lens (1.9° FoV)
Standard
Size-Unspecified CMOS Sensor with Lens
Thermal
Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (33° FoV)
Zoom
16x Optical
Minimum Focus Distance
Wide
1.6' / 0.5 m
ISO Sensitivity Range
Wide
Photo: 100 to 6400
Video: 100 to 64,000
Night Vision
No
Shutter Speed
Wide
1/8000 to 8 Seconds (Photo)
1/8000 to 1 Seconds (Video)
Maximum Video Resolution
Wide
Up to UHD 4K at 60 fps
Thermal
Up to 512p at 25 fps
Still Image Support
Wide
Up to 12.5 MP (DNG / JPEG)
Up to 50 MP (DNG / JPEG)
Up to 8 MP (DNG / JPEG)
Thermal
Up to 2 MP (JPEG)
Up to .9 MP (JPEG)
Up to .3 MP (JPEG)
Photo Modes
Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot
Media/Memory Card Slot
In Aircraft Body
microSD/microSDHC/microSDXC (UHS-III) [256 GB Maximum / Class 10/U1/V10 or Faster Recommended]
Internal Storage
In Aircraft Body
8 GB
In Remote/Transmitter
128 GB
Gimbal
Number of Axes
3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range
Controllable Range
Yaw (Pan): 180° (-90 to 90°)
Pitch (Tilt): 120° (-90 to 30°)
Mechanical Range
Yaw (Pan): 200° (-100 to 100°)
Pitch (Tilt): 180° (-135 to 45°)
Follow Speed
Tilt: 300°/s
Stabilization Accuracy
±0.005°
Avoidance/Sensing System
Sensing System
Omnidirectional with Ultrasonic Enhancement
Sensing System Capabilities
Forward
Measurement Range: 1.6 to 59.1' / 0.5 to 18 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 60° (Horizontal) / 80° (Vertical)
Backward
Measurement Range: 1.6 to 52.5' / 0.5 to 16 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 60° (Horizontal) / 80° (Vertical)
Lateral
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 65° (Horizontal) / 50° (Vertical)
Upward
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 50° (Front-to-Back) / 65° (Side-to-Side)
Downward
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 80° (Front-to-Back) / 100° (Side-to-Side)
Remote Controller / Transmitter
Control Method
Included Transmitter
Transmission System
Proprietary
900 MHz / 2.4 GHz / 5.1 GHz / 5.8 GHz
Power at 0.9G: 31 dBm (FCC/ISED)
Power at 2.4G: 32 dBm (ISED) / 20 dBm (CE/MIC/SRRC/RCM)
Power at 5.8G: 33 dBm (CE/MIC/SRRC/ISED) / 14 dBm (CE/RCM)
Maximum Operating Distance
9.3 Miles / 15 km
Transmitter I/O
1x USB-C Input (Power)
1x USB-A Output (Expansion)
1x HDMI Output (Video)
Clean Video Output
Not Specified by Manufacturer
Battery Type
Built-In Lithium-Ion Polymer (LiPo) (5800 mAh)
Operating Temperature
-4 to 104°F / -20 to 40°C
Mobile App Compatible
No
Built-In Display
7.9" (2048 x 1536) Touchscreen LCD, 2000 nits/ cd/m2
Flight Battery
Battery Chemistry
Lithium-Ion Polymer (LiPo)
Battery Capacity
7100 mAh / 82 Wh
Battery Configuration
3 S / 11.55 V
Maximum Charging Power
93 W
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
14 to 86°F / -10 to 30°C
Charging Temperature
41 to 113°F / 5 to 45°C
Weight
12.9 oz / 365 g
Charger
Input Power
100 to 240 VAC, 50 / 60 Hz at 1.5 A
Output Voltage
13.2 V, 5 A
12 V, 1.5 A
9 V, 2 A
5 V, 3 A
Power Rating
66 W
General
GNSS Support
GPS, GLONASS, BeiDou, Galileo
Diagonal Size
15.6" / 397 mm
Overall Dimensions
5.1 x 4.3 x 9.1" / 130.0 x 108.0 x 230.0 mm (Folded)
22.0 x 4.3 x 18.0" / 558.0 x 108.0 x 457.0 mm (Unfolded)
Weight
2.5 lb / 1150 g (Takeoff)
4.4 lb / 2000 g (with Maximum Payload)
Packaging Info
Package Weight
22 lb
Box Dimensions (LxWxH)
22 x 19.4 x 10.4"



Items Included

  • Autel Robotics EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging
  • 7.9" Smart Controller with Case
  • 2 x Pair of Propellers
  • Smart Controller USB-C Charging Cable and Power Brick
  • Battery Charger with Wall Cord and Power Converter
  • 3 x Flight Battery
  • Spare Controller Sticks
  • 32GB SD Card
  • Gimbal Cover
  • Smart Controller Hanging Neck Strap
  • RTK Module Attachment Port Cover
  • Enterprise Speaker Attachment
  • Enterprise Search Light Attachment
  • Enterprise Strobe Light Attachment
  • Evo II Battery Car Charger
  • Evo II Battery Multicharger
  • Limited 1-Year Manufacturer Warranty (Drone & Remote)
  • Limited 90-Day Manufacturer Warranty (Battery, Charger & Multi-Charger)

Product Information

Shipping & Returns

Description

With more thermal imaging detail than the previous generation, the EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging from Autel Robotics provides first responders and industrial inspectors the ability to better pinpoint temperature fluctuations, vehicles, and individuals. You can view real-time thermal information in a variety of ways, including together with visual imaging for better decision-making in the field. The thermal camera is capable of 640 x 512 resolution, while the 50MP visual camera can record up to 4K HDR footage. The foldable design deploys quickly, and the included Smart Controller V3 can operate it from over nine miles away. Throughout each mission, you can rest easy as 360° obstacle avoidance keeps the EVO II safe.

Thermal Camera
The thermal camera is equipped with a 13mm focal length lens and the ability to record at 640 x 512 resolution at 30 Hz. In dangerous situations, you can keep the drone back as you use 16x digital zoom with 4x lossless zoom to find what you're looking for. The V3 thermal image is designed to better display discernible differences and detail. Keep reading to view the array of thermal modes and features the EVO II Dual 640T offers, in addition to its thermal detection, recognition, and identification ranges:





  • Central temperature measurement: View real-time temperatures in the center of the remote's display.
  • Spot temperature measurement: Tap the remote's display and view an object's temperature in real time.
  • Regional temperature measurement: A dynamic view of average, minimum, and maximum temperatures.
  • Ten thermal color palettes: White Hot, Cold and Hot, Rainbow, Enhanced Rainbow, Ironbow, Lava, Arctic, Searing, Gradation, and Heat Detection.
  • Picture-in-picture display mode: View visual and thermal imaging at the same time.
  • Temperature alarm: This will monitor a set temperature in real time and set off an alarm if reached.
  • Isotherm: Set a temperature range and the system will detect any object in view that's within that range.
  • Image enhancement: Real-time adjustment of the thermal image brightness, contrast, and details; the system will highlight any object within the target temperature.
  • Infrared thermal analysis tool: The IRPC tool quickly imports images, edits and analyzes temperature measurements, and generates detailed reports for sharing and collaboration.
  • Detection range: Detects a person up to 0.34 miles away, an SUV from up to 1.03 miles away, and a truck from up to 1.8 miles away.
  • Recognition range: Recognize if an object is a person from up to 443' away, an SUV from 0.26 miles away, and a truck from up to 0.45 miles away.
  • Identification: Identify a person from up to 223' away, an SUV from up to 682' away, and a truck from up to 0.22 miles away.
Visual Camera
Inspections and rescues are not the only things you can do with your EVO II Dual 640T. The 50MP visual camera is capable of capturing stunning professional footage at 4K HDR resolution. With its 0.8" RYYB CMOS sensor instead of a traditional RGB sensor, the larger surface area delivers a high level of detail in high-contrast lighting conditions. Dynamic tracking shots are possible with the quick focusing of the PDAF+CDAF system, and low-light scenes will be clearer thanks to the moonlight algorithm 2.0's increased noise suppression.
Smart Controller V3 with SkyLink 2.0
Utilizing SkyLink 2.0, the Smart Controller V3's built-in 7.9" display can receive HD video transmission in flight from up to 9.32 miles away (or QHD quality from up to 0.62 miles away). Reception is engineered to be stable and interference-free, thanks to triple-band (900 MHz, 2.4 GHz, and 5.8 GHz) frequency hopping. Thanks to the display's 2000 cd/m² brightness, you can easily view the drone's footage, even in direct sunlight. You're not restricted to flying on sunny days, though. The Smart Controller V3 can withstand -4 to 104°F temperatures and is IP43-rated for all-weather performance.
360-Degree Obstacle Avoidance
While in flight, an array of 19 sensors, including 12 visual sensors, the main camera, ultrasound IMUs, and more, can build a 3D map of the drone's surroundings and plan a clear path to its destination in real time.
Additional Features
  • Foldable design
  • Can deploy and take off in under a minute
  • Up to 38 minutes of flight time
  • Up to 39 mph of maximum wind resistance
  • Maximum flight speed up to 45 mph
  • Maximum payload up to 2 lb
  • Can be flown even if the firmware and app are not fully updated
  • Without built-in fly zones, nothing prevents you from taking off when needed
  • The EVO II Dual 640T is not under the United States ITAR (International Traffic in Arms Regulations)
  • Compatible with optional Live Deck 2 for broadcasting live mission intel
Key Specs
Maximum Flight Time
38 Minutes
Remote ID
Yes
Camera System
Wide
1/1.28"-Type CMOS Sensor with 23mm-Equivalent, f/1.9 Lens (1.9° FoV)
Standard
Size-Unspecified CMOS Sensor with Lens
Thermal
Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (33° FoV)
Maximum Video Resolution
Wide
Up to UHD 4K at 60 fps
Thermal
Up to 512p at 25 fps
Still Image Support
Wide
Up to 12.5 MP (DNG / JPEG)
Up to 50 MP (DNG / JPEG)
Up to 8 MP (DNG / JPEG)
Thermal
Up to 2 MP (JPEG)
Up to .9 MP (JPEG)
Up to .3 MP (JPEG)
Sensing System
Omnidirectional with Ultrasonic Enhancement
Control Method
Included Transmitter
Weight
2.5 lb / 1150 g (Takeoff)
4.4 lb / 2000 g (with Maximum Payload)
Performance
Maximum Horizontal Speed
44.7 mph / 71.9 km/h
Maximum Ascent Speed
17.9 mph / 28.8 km/h
Maximum Descent Speed
8.9 mph / 14.3 km/h
Maximum Wind Resistance
26.8 mph / 43.2 km/h
Maximum Take-Off Altitude
4.3 Miles / 7 km
Maximum Flight Time
38 Minutes
Maximum Hover Time
33 Minutes
Maximum Tilt Angle
33°
Hovering Accuracy
Vision Positioning
Vertical: ±0.3' / 0.1 m
Horizontal: ±1.0' / 0.3 m
GNSS
Vertical: ±1.6' / 0.5 m
Horizontal: ±4.9' / 1.5 m
Maximum Angular Velocity
120°/s (Pitch)
Aircraft
Rotor Configuration
Quadcopter
Remote ID
Yes
Aircraft I/O
1x USB-C (Data)
Operating Conditions
14 to 104°F / -10 to 40°C
Imaging
Number of Cameras
2 (Cannot Be Used Simultaneously)
Camera System
Wide
1/1.28"-Type CMOS Sensor with 23mm-Equivalent, f/1.9 Lens (1.9° FoV)
Standard
Size-Unspecified CMOS Sensor with Lens
Thermal
Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (33° FoV)
Zoom
16x Optical
Minimum Focus Distance
Wide
1.6' / 0.5 m
ISO Sensitivity Range
Wide
Photo: 100 to 6400
Video: 100 to 64,000
Night Vision
No
Shutter Speed
Wide
1/8000 to 8 Seconds (Photo)
1/8000 to 1 Seconds (Video)
Maximum Video Resolution
Wide
Up to UHD 4K at 60 fps
Thermal
Up to 512p at 25 fps
Still Image Support
Wide
Up to 12.5 MP (DNG / JPEG)
Up to 50 MP (DNG / JPEG)
Up to 8 MP (DNG / JPEG)
Thermal
Up to 2 MP (JPEG)
Up to .9 MP (JPEG)
Up to .3 MP (JPEG)
Photo Modes
Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot
Media/Memory Card Slot
In Aircraft Body
microSD/microSDHC/microSDXC (UHS-III) [256 GB Maximum / Class 10/U1/V10 or Faster Recommended]
Internal Storage
In Aircraft Body
8 GB
In Remote/Transmitter
128 GB
Gimbal
Number of Axes
3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range
Controllable Range
Yaw (Pan): 180° (-90 to 90°)
Pitch (Tilt): 120° (-90 to 30°)
Mechanical Range
Yaw (Pan): 200° (-100 to 100°)
Pitch (Tilt): 180° (-135 to 45°)
Follow Speed
Tilt: 300°/s
Stabilization Accuracy
±0.005°
Avoidance/Sensing System
Sensing System
Omnidirectional with Ultrasonic Enhancement
Sensing System Capabilities
Forward
Measurement Range: 1.6 to 59.1' / 0.5 to 18 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 60° (Horizontal) / 80° (Vertical)
Backward
Measurement Range: 1.6 to 52.5' / 0.5 to 16 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 60° (Horizontal) / 80° (Vertical)
Lateral
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 65° (Horizontal) / 50° (Vertical)
Upward
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 50° (Front-to-Back) / 65° (Side-to-Side)
Downward
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 80° (Front-to-Back) / 100° (Side-to-Side)
Remote Controller / Transmitter
Control Method
Included Transmitter
Transmission System
Proprietary
900 MHz / 2.4 GHz / 5.1 GHz / 5.8 GHz
Power at 0.9G: 31 dBm (FCC/ISED)
Power at 2.4G: 32 dBm (ISED) / 20 dBm (CE/MIC/SRRC/RCM)
Power at 5.8G: 33 dBm (CE/MIC/SRRC/ISED) / 14 dBm (CE/RCM)
Maximum Operating Distance
9.3 Miles / 15 km
Transmitter I/O
1x USB-C Input (Power)
1x USB-A Output (Expansion)
1x HDMI Output (Video)
Clean Video Output
Not Specified by Manufacturer
Battery Type
Built-In Lithium-Ion Polymer (LiPo) (5800 mAh)
Operating Temperature
-4 to 104°F / -20 to 40°C
Mobile App Compatible
No
Built-In Display
7.9" (2048 x 1536) Touchscreen LCD, 2000 nits/ cd/m2
Flight Battery
Battery Chemistry
Lithium-Ion Polymer (LiPo)
Battery Capacity
7100 mAh / 82 Wh
Battery Configuration
3 S / 11.55 V
Maximum Charging Power
93 W
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
14 to 86°F / -10 to 30°C
Charging Temperature
41 to 113°F / 5 to 45°C
Weight
12.9 oz / 365 g
Charger
Input Power
100 to 240 VAC, 50 / 60 Hz at 1.5 A
Output Voltage
13.2 V, 5 A
12 V, 1.5 A
9 V, 2 A
5 V, 3 A
Power Rating
66 W
General
GNSS Support
GPS, GLONASS, BeiDou, Galileo
Diagonal Size
15.6" / 397 mm
Overall Dimensions
5.1 x 4.3 x 9.1" / 130.0 x 108.0 x 230.0 mm (Folded)
22.0 x 4.3 x 18.0" / 558.0 x 108.0 x 457.0 mm (Unfolded)
Weight
2.5 lb / 1150 g (Takeoff)
4.4 lb / 2000 g (with Maximum Payload)
Packaging Info
Package Weight
22 lb
Box Dimensions (LxWxH)
22 x 19.4 x 10.4"



Items Included

  • Autel Robotics EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging
  • 7.9" Smart Controller with Case
  • 2 x Pair of Propellers
  • Smart Controller USB-C Charging Cable and Power Brick
  • Battery Charger with Wall Cord and Power Converter
  • 3 x Flight Battery
  • Spare Controller Sticks
  • 32GB SD Card
  • Gimbal Cover
  • Smart Controller Hanging Neck Strap
  • RTK Module Attachment Port Cover
  • Enterprise Speaker Attachment
  • Enterprise Search Light Attachment
  • Enterprise Strobe Light Attachment
  • Evo II Battery Car Charger
  • Evo II Battery Multicharger
  • Limited 1-Year Manufacturer Warranty (Drone & Remote)
  • Limited 90-Day Manufacturer Warranty (Battery, Charger & Multi-Charger)
Autel Robotics EVO II Dual 640T Enterprise Bundle V3 (Open Box) | Wellbots
