8K HDMI 2x2 Matrix Switcher with Audio Extraction (BK-202A)
BK-202A: 8K HDMI 2x2 Matrix Switcher
Key Features:
- HDMI 2.1, HDCP 2.3 compliant
- Video resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz
- 40Gbps video bandwidth
- HDR10+ and Dolby Vision pass through
- LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD support
- VRR, ALLM and FVA support
- Audio extraction through Optical and Analog outputs
- Compact design and plug-and-play setup
The BK-202A Matrix enables you to transmit media signals from two devices to two displays simultaneously. Supporting resolutions up to 8K@60Hz and 4K@120Hz, it complies with HDMI 2.1 and HDCP 2.3 standards. Boasting a 40Gbps video bandwidth, it also supports HDR10+. Audio can be extracted from any device and output through Optical or Analog Aux. The matrix supports protocols such as VRR, ALLM, and FVA. The BK-202A is ideal for any commercial or home theatre setup.
[shortdes]
- HDR10+ & Dolby Vision pass through
- Video resolutions up to 8K@60Hz
- LPCM, Dolby Digital/Plus, Dolby True HD, DTS, DTS-EX, DTS-HD Master Audio, DSD support
[/shortdes]
[tab]

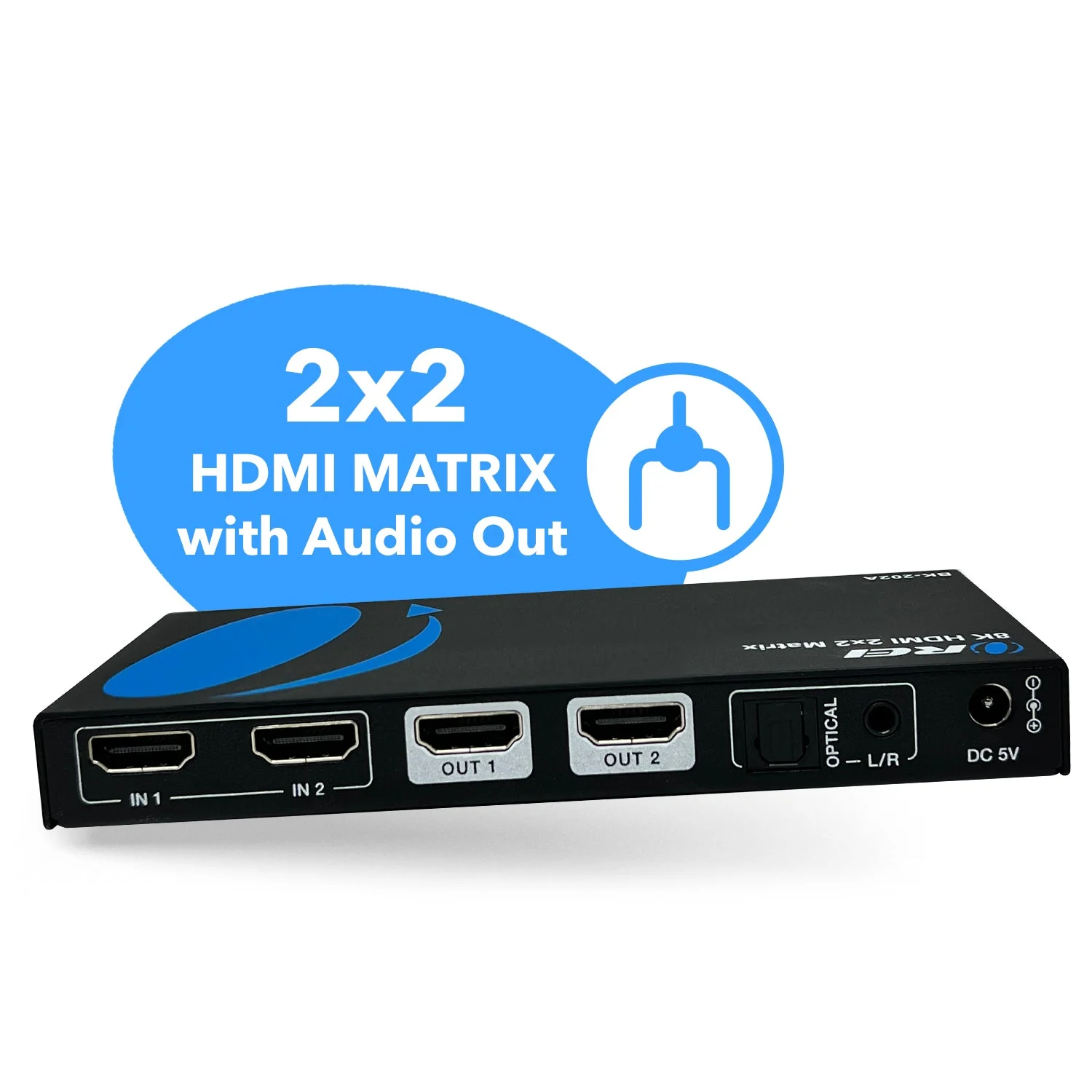

CONNECTIVITY
| INPUT: | 2 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| 1 x OPTICAL [S/PDIF, female] | ||
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × SERVICE [Micro USB, Update port] |
PACKAGE CONTENTS
| 1x BK-202A |
| 1x Remote |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.1 | We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz 4:2:0: | 10 Feet |
| 4K@60Hz 4:4:4: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 40 Gbps |
| Video Resolutions: | Up to 8K@60Hz, 4K@60Hz, 2K@120Hz, 2K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
LOOP-OUT / LOCAL PORTS
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Optical Audio Formats: | LPCM 2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1 |
| 3.5mm Analog Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 6.2W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |
DIMENSIONS & WEIGHT
| Length: | 145mm / 5.71in | |
| Width: | 68mm / 2.68in | |
| Height: | 17mm / 0.67in | |
| Weight: | 268g / 9.45oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
