4x4 HDMI Matrix Extender - UltraHD 4K@60Hz Over Single CAT6/7 Cable (UHD48-EX230-K)
OREI 4x4 4k HDMI Matrix Extender - With Uni-directional IR, Power Over Cable & Downscaling
- HDMI 2.0b & HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2K@60Hz
- Lossless video bandwidth of up to 18Gbps
- 4 HDMI loop outputs & 4 mirrored CAT outputs
- Downscaling support from 4K to 1080P for all output ports
- HDR10+, Dolby Vision & HLG pass-through
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Advanced EDID management and CEC control
- One-way IR control from Receivers to the Transmitter
- Power over cable technology; only requires power at the Transmitter end
- Control via IR remote, RS-232, WebGUI, LAN, and the buttons on the front panel
- Robust build, perfect for personal and commercial uses.

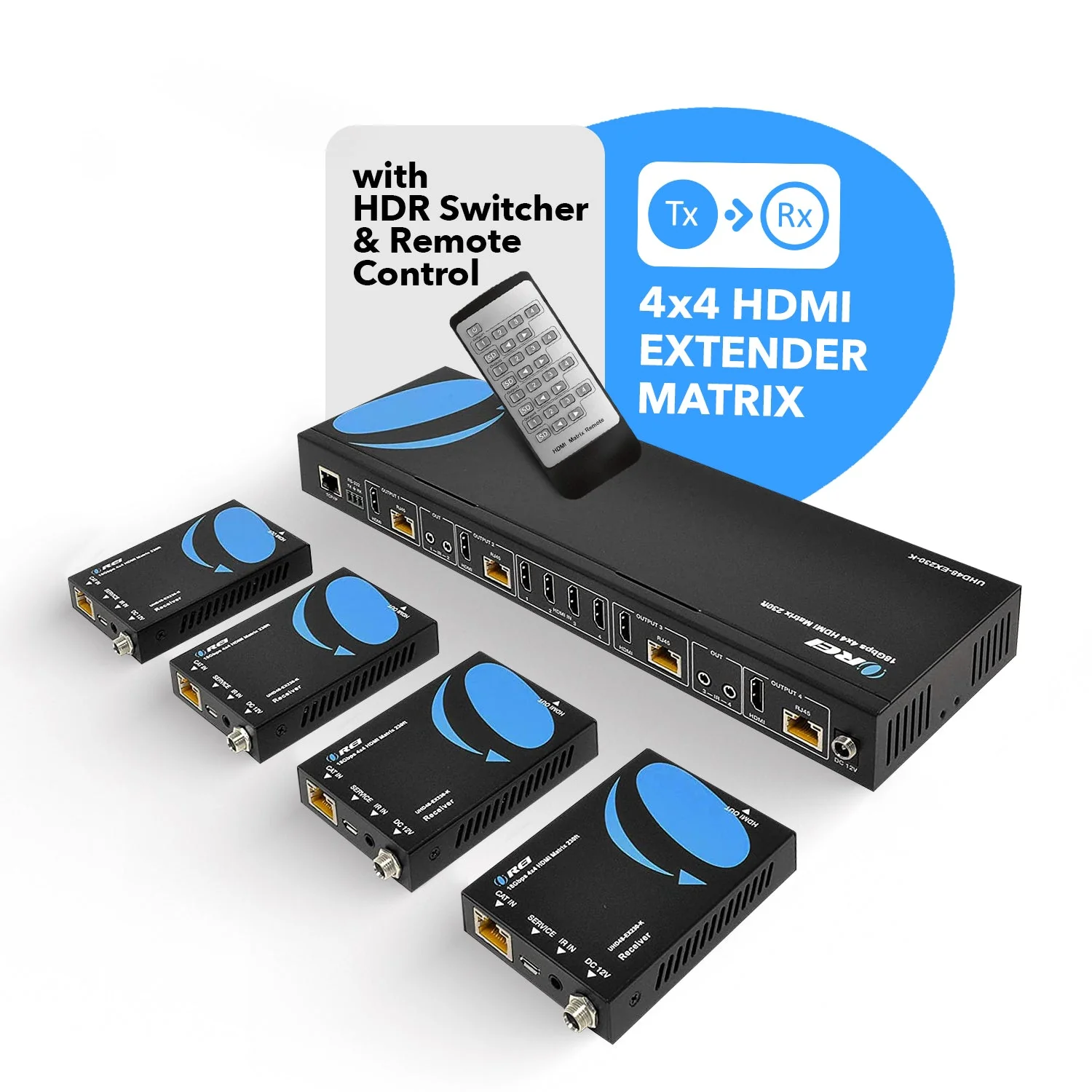

The UHD48-EX230-K is an HDMI Matrix Extender featuring 4 inputs, 4 HDMI loop outputs, and 4 CAT outputs. It can extend all 4 inputs to displays up to 230 feet away from the transmitter. The device is HDMI 1.4 and HDCP 1.4 compliant, supporting video resolutions up to 4K@60Hz and 2K@60Hz and a video bandwidth of 18Gbps, with HDR10+, Dolby Vision, and HLG pass-through. It can downscale the resolution from 4K to 1080p for all outputs. HDMI audio pass-through of up to 7.1 channels of HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio). The device offers advanced EDID management and CEC control. Power over Cable (PoC) functionality allows all receivers and the transmitter unit to be powered through a single power adapter. Control the unit via front panel buttons, IR remote, RS-232, LAN, or the WebGUI interface. Perfect for both personal and commercial use.
[summary]
- 4K 4x4 HDMI Matrix Extender.

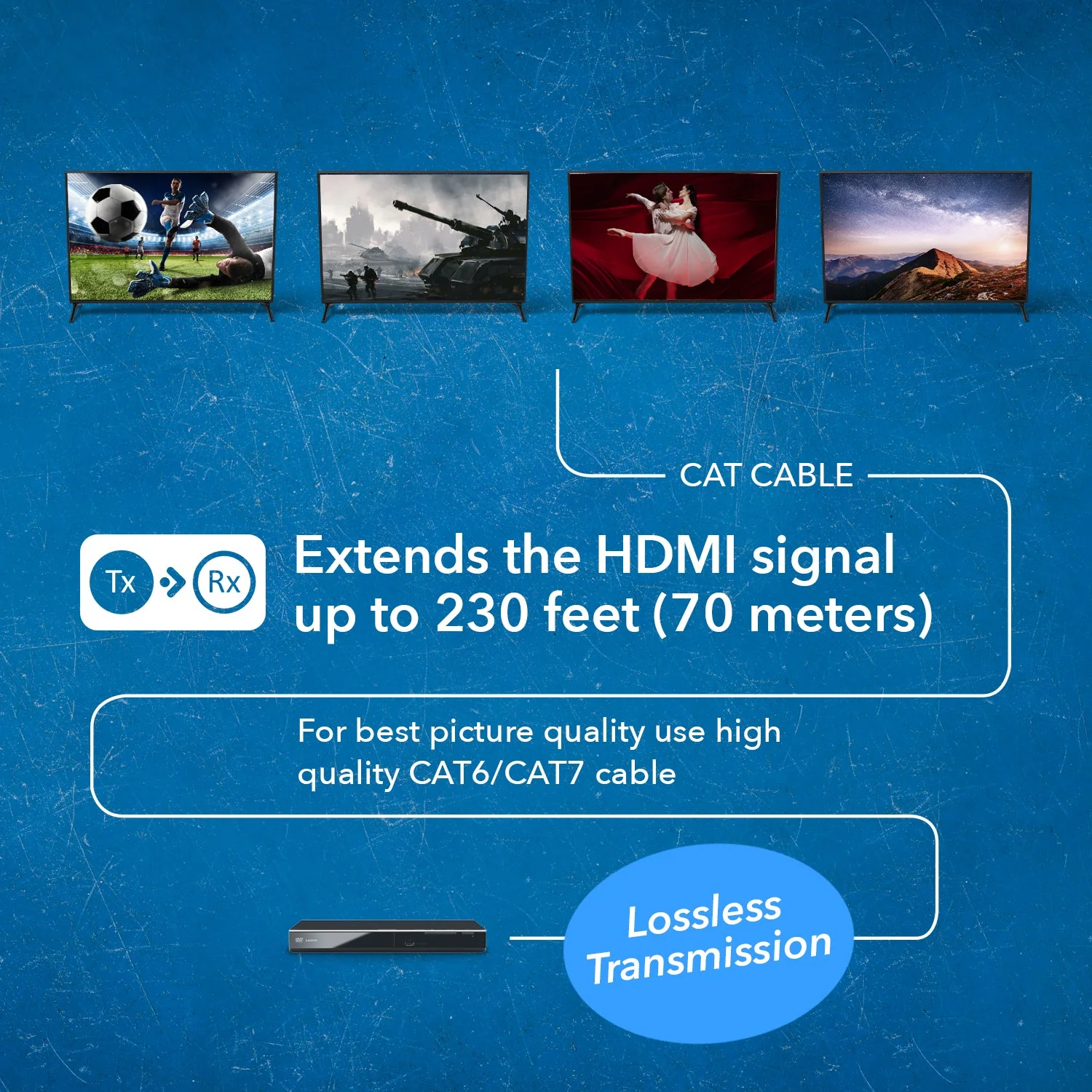

- Extends media up to 230 feet with resolutions up to 4K@60Hz and 2K@60Hz
- Uni-directional IR, Power over cable & Downscaling features
[/summary]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 4 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 4 × HDMI [Type A, 19-pin female] | |
| 4 × CAT [RJ45, 8-pin female] | ||
| CONTROL: | 4 × IR OUT [3.5mm Stereo Mini-jack] | |
| 1 × TCP/IP [RJ45] | ||
| 1 × RS-232 [3-Pin Phoenix Connector] | ||
| Receiver: | INPUT: | 1 × CAT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1× SERVICE [Micro-USB, Update port] |
PACKAGE CONTENTS
| 1x Transmitter |
| 4x Receiver |
| 1x IR Remote Control |
| 1x RS-232 Serial Cable |
| 1x 3-pin Phoenix Connectors |
| 4x IR Blaster cable |
| 4x IR Receiver cable |
| 10 x Mounting Ear |
| 1x Power Cable |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 230 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz, 2K@60Hz |
ADDITIONAL FEATURES
| CEC: | Yes |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | Yes |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | Yes |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | Yes |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 4 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 19.68W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/2.5A |
DIMENSIONS & WEIGHT
| Transmitter: | Length: | 320mm / 12.6in |
| Width: | 100mm / 3.94in | |
| Height: | 36mm / 1.42in | |
| Weight: | 915g / 2.01lb | |
| Receiver: | Length: | 88mm / 3.47in |
| Width: | 61mm / 2.4in | |
| Height: | 18mm / 0.71in | |
| Weight: | 155g / 5.47oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
[/tab1]
