4x2 HDMI Matrix up to 4K@60Hz with ARC (UHD-402)
OREI UHD-402: 4x2 HDMI Matrix UltraHD with ARC
- HDMI 2.0, HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz
- Pixel clock rate up to 600Mhz
- DTS-HD and Dolby TrueHD lossless audio support
- Audio Return Channel (ARC) support between Input 4 and Output A

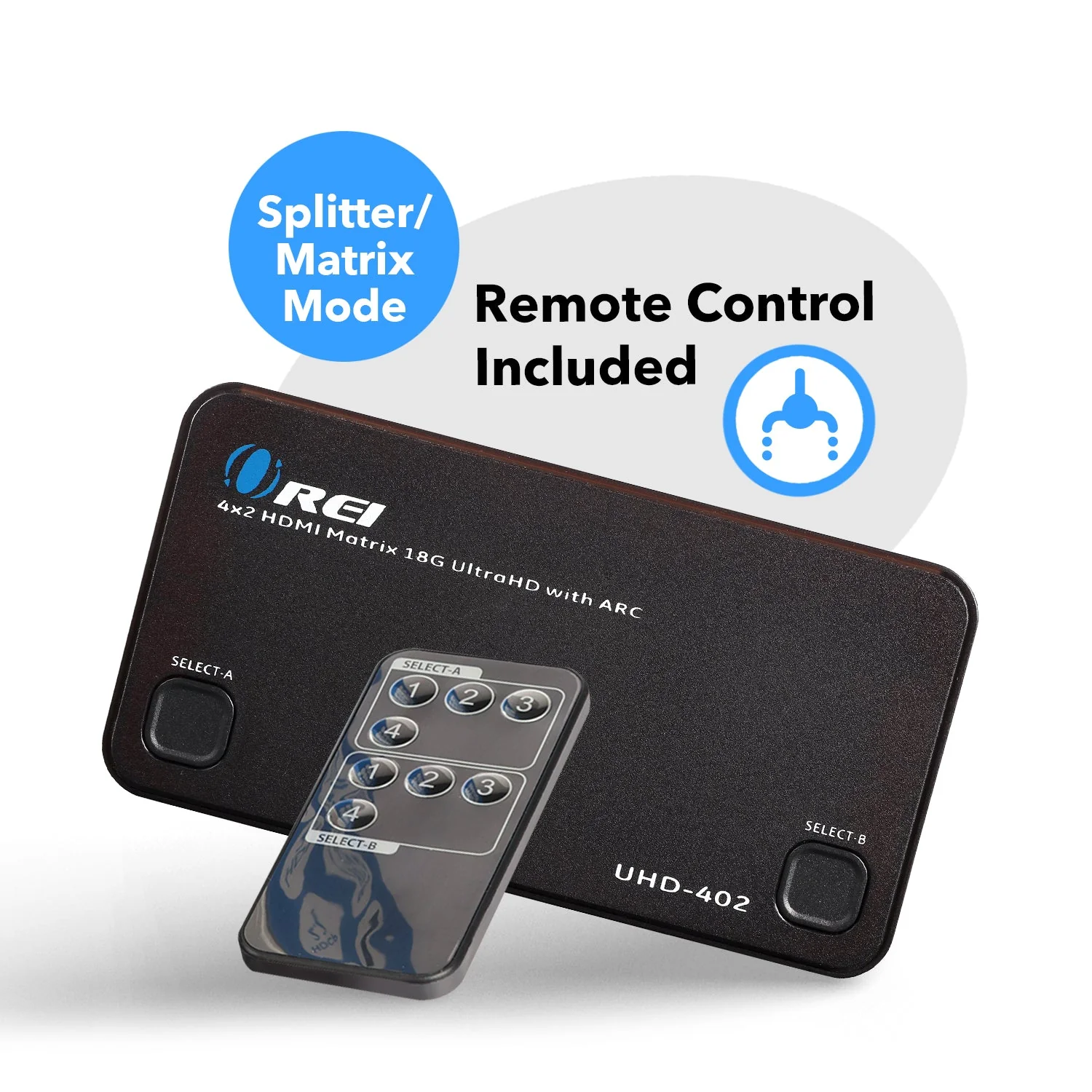

- Control through the included remote or the buttons on the device
- Durable ABS plastic body
- Plug-and-play setup
The UHD-402 HDMI Matrix switch lets you connect up to 4 media devices and independently distribute them on 2 displays. It supports video resolutions up to 4K@60Hz with a pixel clock rate of up to 600MHz. It includes ARC support between Input 4 and Output A, along with DTS-HD and Dolby TrueHD lossless audio. The device is easily controlled via the included remote or the buttons on the device. The UHD-402 is perfect for any home theater or commercial setup.
[shortdes]
- Durable ABS plastic body
- Video resolutions up to 4K@60Hz
- ARC support between Input 4 and Output A
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 4 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] |
PACKAGE CONTENTS
| 1x UHD-402 |
| 1x Remote |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0 / 2.1 | We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | Yes |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | Dolby TrueHD, DTS-HD |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 2W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 150 mm / 5.91inch | |
| Width: | 74.5 mm / 2.93inch | |
| Height: | 20.5 mm / 0.81inch | |
| Weight: | 123g / 4.34oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
