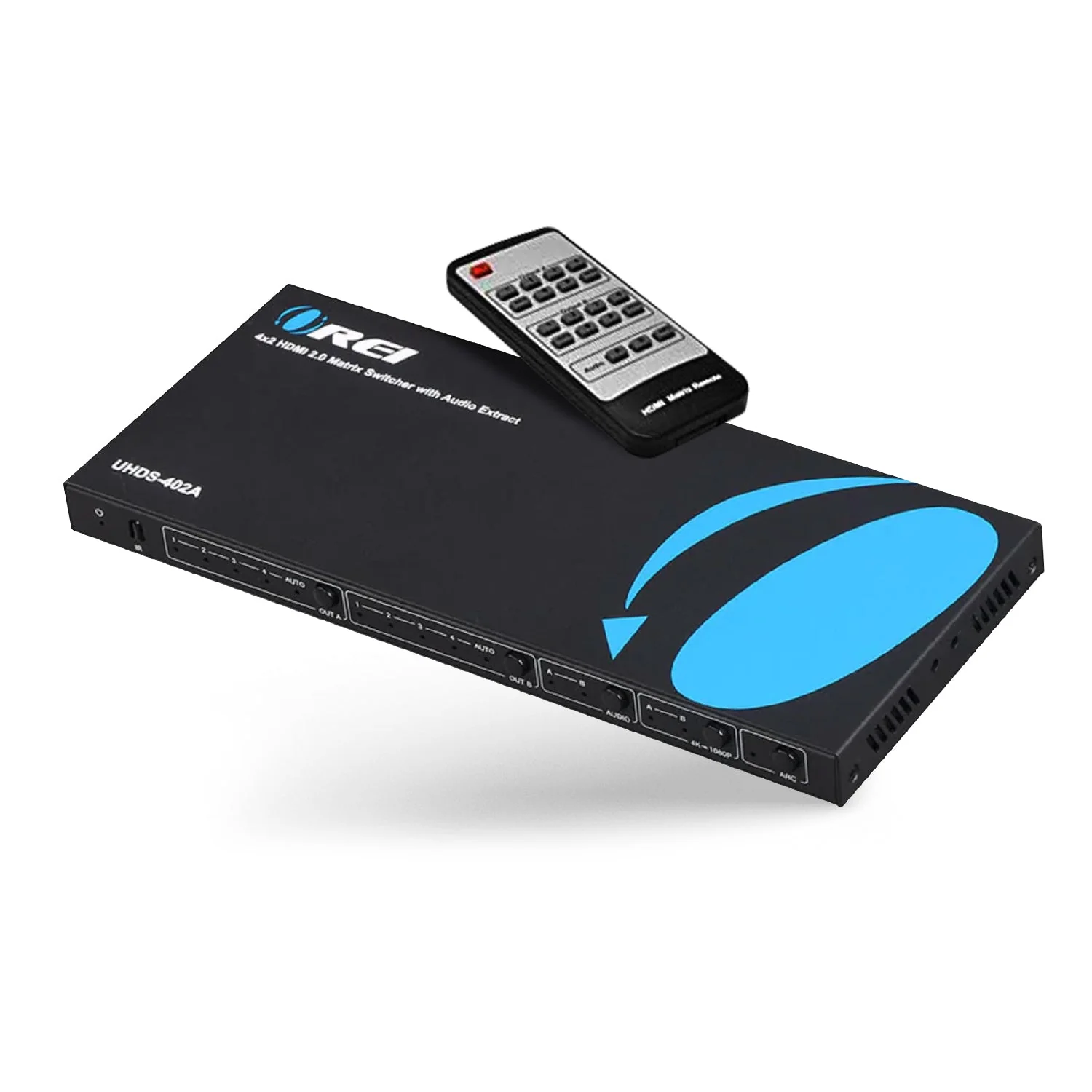

4x2 HDMI Matrix Switcher with Audio Extraction (UHDS-402A)
UHDS-402A: 4x2 HDMI 2.0 Matrix Switcher with Audio Extraction
Key Features:
- HDMI 2.0, HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz
- 18Gbps video bandwidth
- HDR10+ and Dolby Vision pass through
- Audio Return Channel (ARC) support
- Audio extraction through Optical and Analog aux
- 4K to 1080p downscale for both outputs
- Robust body and plug-and-play setup
The UHDS-402A is a seamless matrix switch, allowing users to display any of the 4 inputs on any of the 2 outputs, with the capability of duplicating a source to both outputs. HDMI 2.0 and HDCP 2.2 compliant, providing an uncompressed 18 Gbps video bandwidth across all HDMI ports, supporting video resolutions of up to 4K@60Hz 4:4:4. With Dolby Vision, HDR 10+, and HLG passthrough, it ensures stunning visual quality. Its downscaling feature enables the downscaling of 4K output to 1080P resolution, for displays that don’t have 4K support. It can also extract audio from any of the 4 inputs to the Optical or Analog Aux. Additionally, it supports ARC and EDID with 3 modes. Whether you're conducting presentations, hosting video conferences, or delivering multimedia education, this device can be a perfect solution for your distribution needs.
[shortdes]
- Audio extraction through Optical and Analog
- Video resolutions up to 4K@60Hz
- ARC support
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 4 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| 1 x OPTICAL [S/PDIF, female] | ||
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × SERVICE [Micro USB, Update port] |
PACKAGE CONTENTS
| 1x UHDS-402A |
| 1x Remote |
| 2x Mounting ears |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0 / 2.1 | We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | Yes |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | Yes |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Optical Audio Formats: | PCM 2.0, Dolby Digital / Plus, DTS |
| 3.5mm Analog Audio Formats: | PCM 2.0 (Note: If ARC function is turned on, the audio port will mute) |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 3.8W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |
DIMENSIONS & WEIGHT
| Length: | 251mm / 9.88in | |
| Width: | 105mm / 4.13in | |
| Height: | 20mm / 0.79in | |
| Weight: | 620g / 1.36lbs |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
