4K HDMI Splitter 1-In-2-Out with EDID control (UHDS-102)
OREI UHDS -102: 4K HDMI Splitter 1-In-2-Out with EDID control
- HDMI 2.0b & HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2K@60Hz
- 18Gbps video bandwidth
- 24bit RGB/YCbCr 4:4:4 support
- LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio support
- Compact design
- Plug-and-play setup
- EDID switch to toggle between 2 presets:
- STD: Set the output to 1080p
- TV: Copy the EDID of the display connected to OUT 1

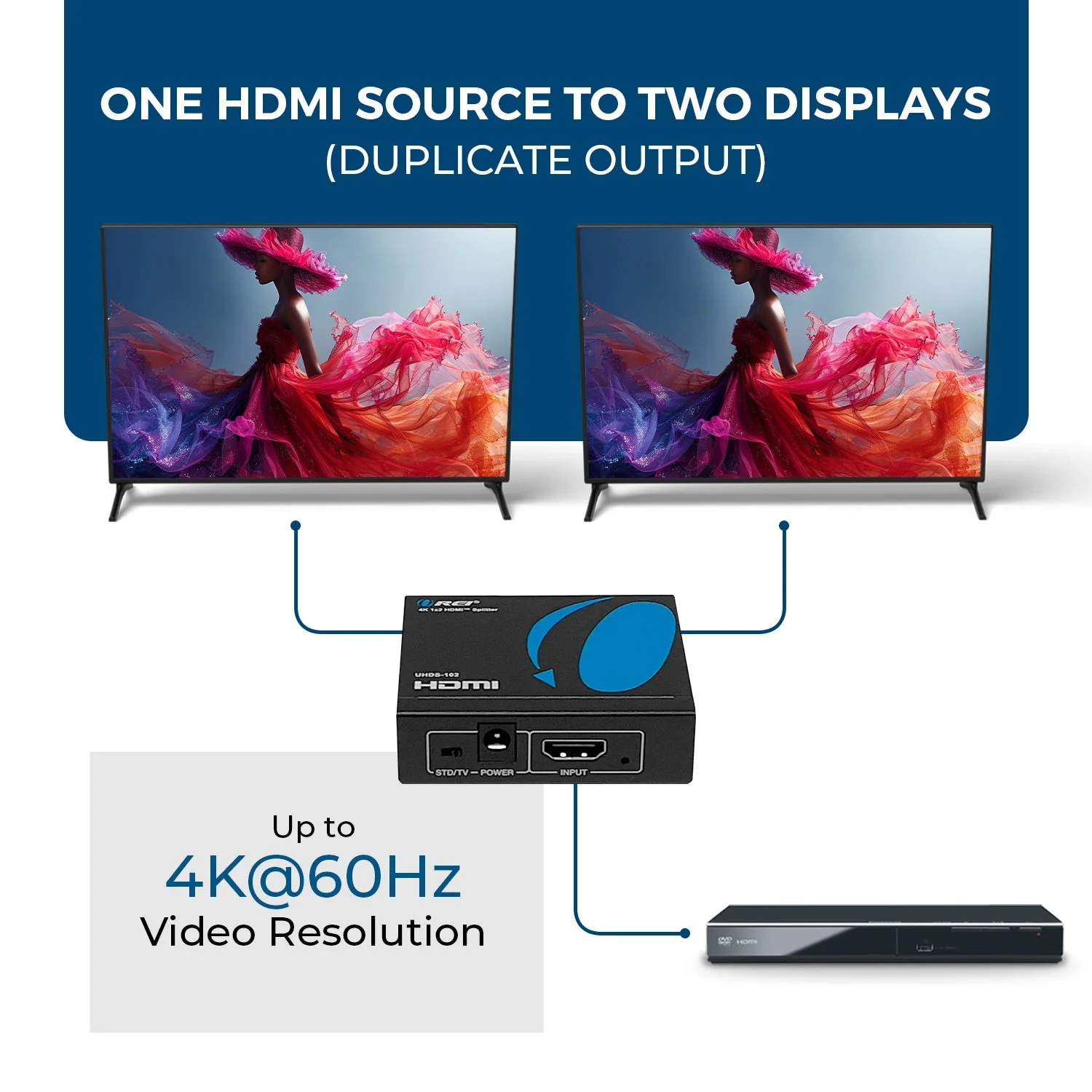

The UHDS-102 HDMI Splitter offers a versatile solution for duplicating media to two displays simultaneously. It supports video resolutions up to 4K@60Hz and 2K@60Hz and is compliant with HDMI 2.0b and HDCP 2.2. Connect any media source—set-top box, DVD player, FireTV stick, Roku, Apple TV, etc.—and view the same content on two TVs or monitors simultaneously. With a switch on the front, easily toggle between two preset EDID settings. Its compact design and plug-and-play features make it ideal for both residential and commercial setups.
[shortdes]
- Mirror content to 2 displays
- Resolutions up to 4K@60Hz and 2K@60Hz
- EDID management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] |
PACKAGE CONTENTS
| 1x UHDS-102 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1: | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz and 2K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 2W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 100mm / 3.93in | |
| Width: | 56mm / 2.2in | |
| Height: | 16mm / 0.62in | |
| Weight: | 165g / 5.82oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
[/tab1]
