4 Port USB Extender Over CAT 6 Up To 330 Feet (USB-EX330-K)
USB-EX330-K: 4 Port USB Extender over CAT 6/7/8 up to 150M
Key Features:
- USB 2.0, 1.1 and 1.0 compliant
- Data transfer speeds up to 480Mbps
- USB signal transmission up to 330 feet over a CAT 6/7 cable
- 4 USB 2.0 ports to connect up to 4 devices like USB drives, printers, webcam, etc.
- Distance can be extended using a 1Gb network switch
- Powered by the source, the Transmitter does not need an additional power adapter
- Robust build

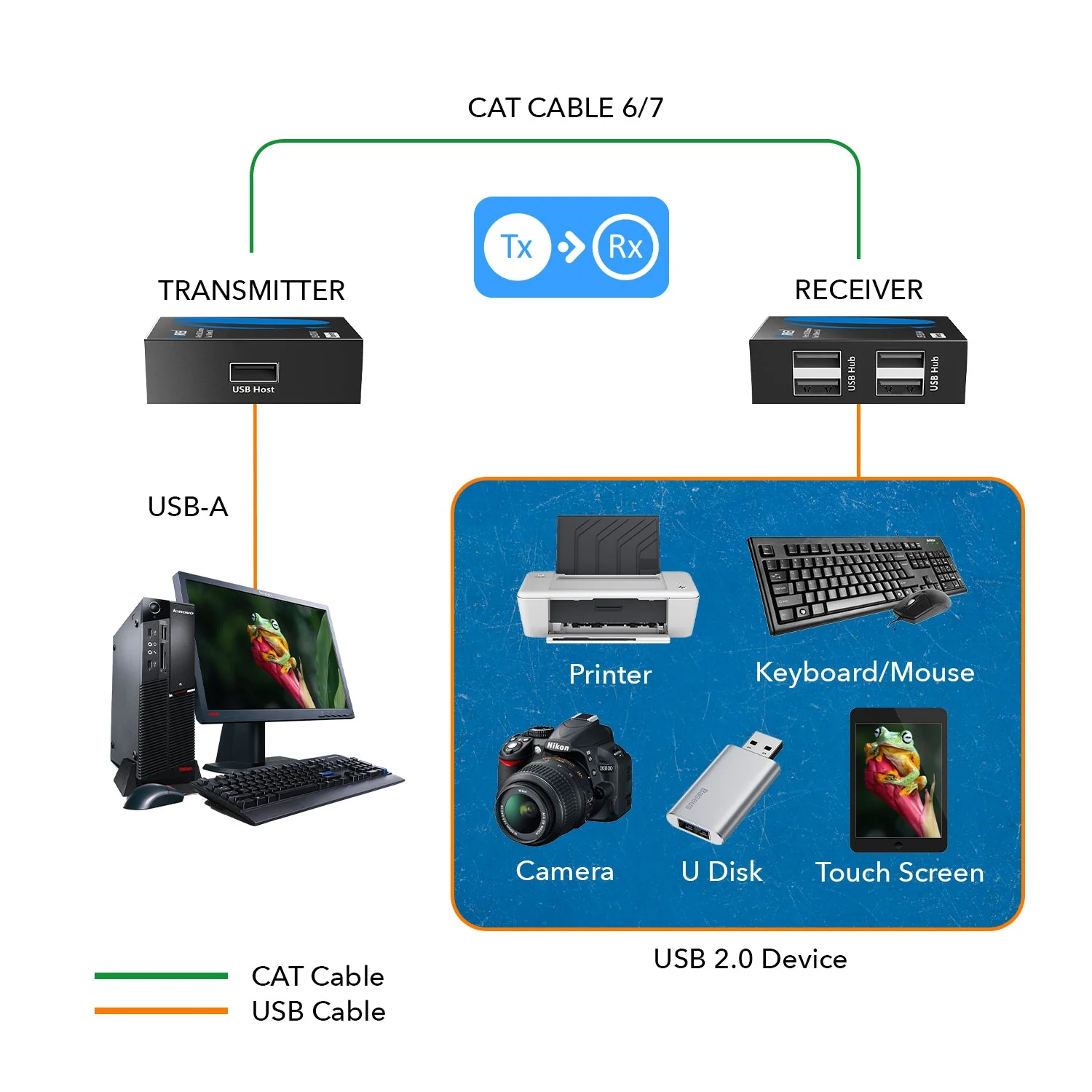

The USB-EX330-K is a USB extender that transmits USB signals over Ethernet (CAT6/7 cable). Supporting USB 2.0 protocol with backward compatibility, it offers a 480 Mbps transmission rate and USB HUB support. It extends USB signals up to 330 feet over CAT5e/6 cable, although the distance can be doubled with a 1GB Ethernet switch. The transmitter has a USB A port for the to connect to a computer, while the receiver has 4 USB 2.0 ports to connect peripherals like webcam, printers, USB drives, etc. Powered by the source, the Transmitter does not need an additional power adapter. Ideal for commercial or residential setups.
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × USB [USB-A, female] |
| OUTPUT: | 1 × CAT [RJ45, 8-Pin, female] | |
| Receiver: | INPUT: | 1 × CAT [RJ45, 8-Pin, female] |
| OUTPUT: | 4 × USB [USB-A, female] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x USB cable |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e/6/7 cables: | We recommend you use CAT6/7 cables for optimum performance. |
EXTENDING DISTANCE
| USB 2.0: | 330 Feet |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | Yes |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
COMPLIANCES
| USB Compliance | USB 2.0 |
POWER
| Power Consumption: | TX: ≤2W & RX: ≤2W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/3A |

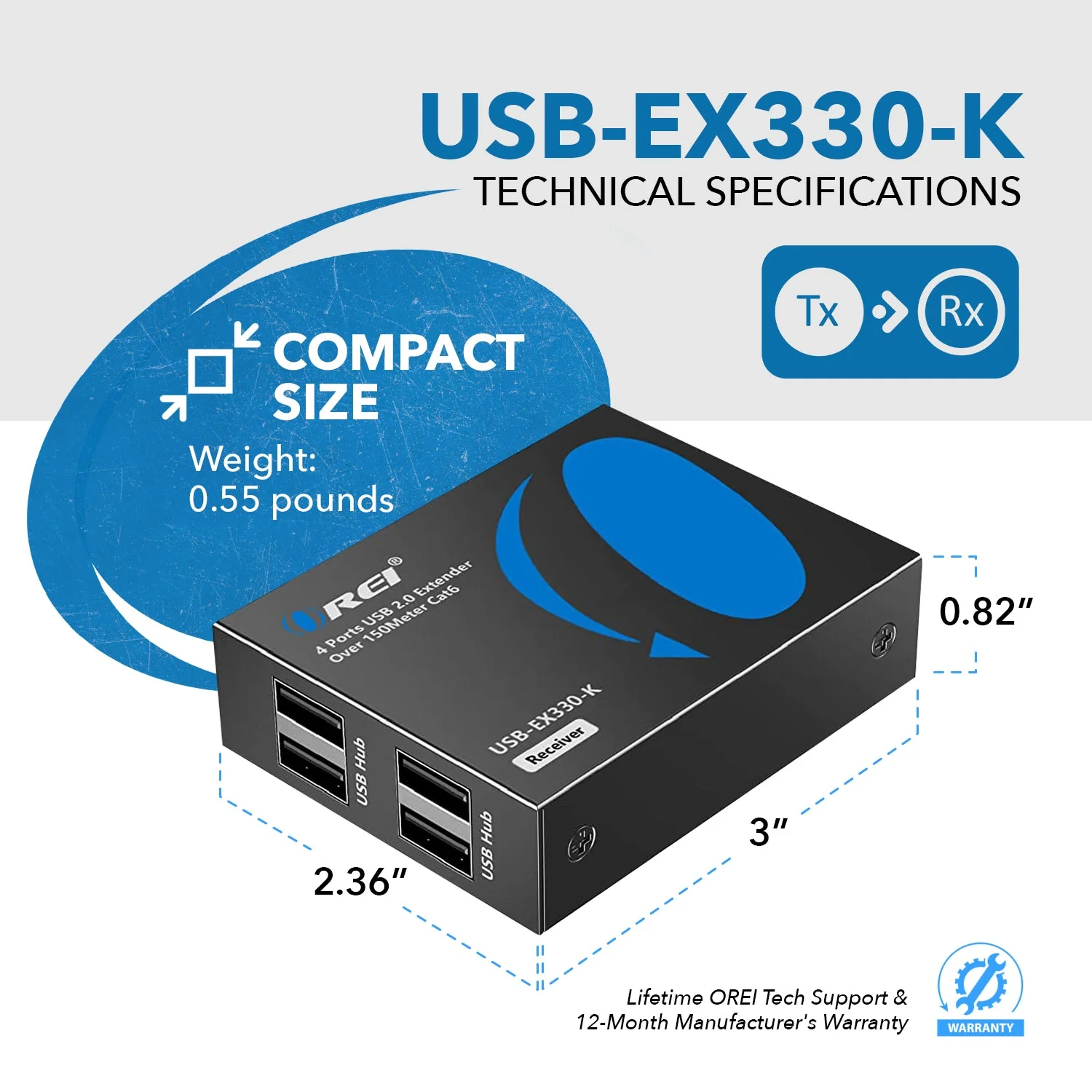

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 76mm / 2.99in |
| Width: | 60mm / 2.36in | |
| Height: | 21mm / 0.83in | |
| Weight: | 123g / 4.34oz | |
| Receiver: | Length: | 76mm / 2.99in |
| Width: | 60mm / 2.36in | |
| Height: | 21mm / 0.83in | |
| Weight: | 128g / 4.52oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
