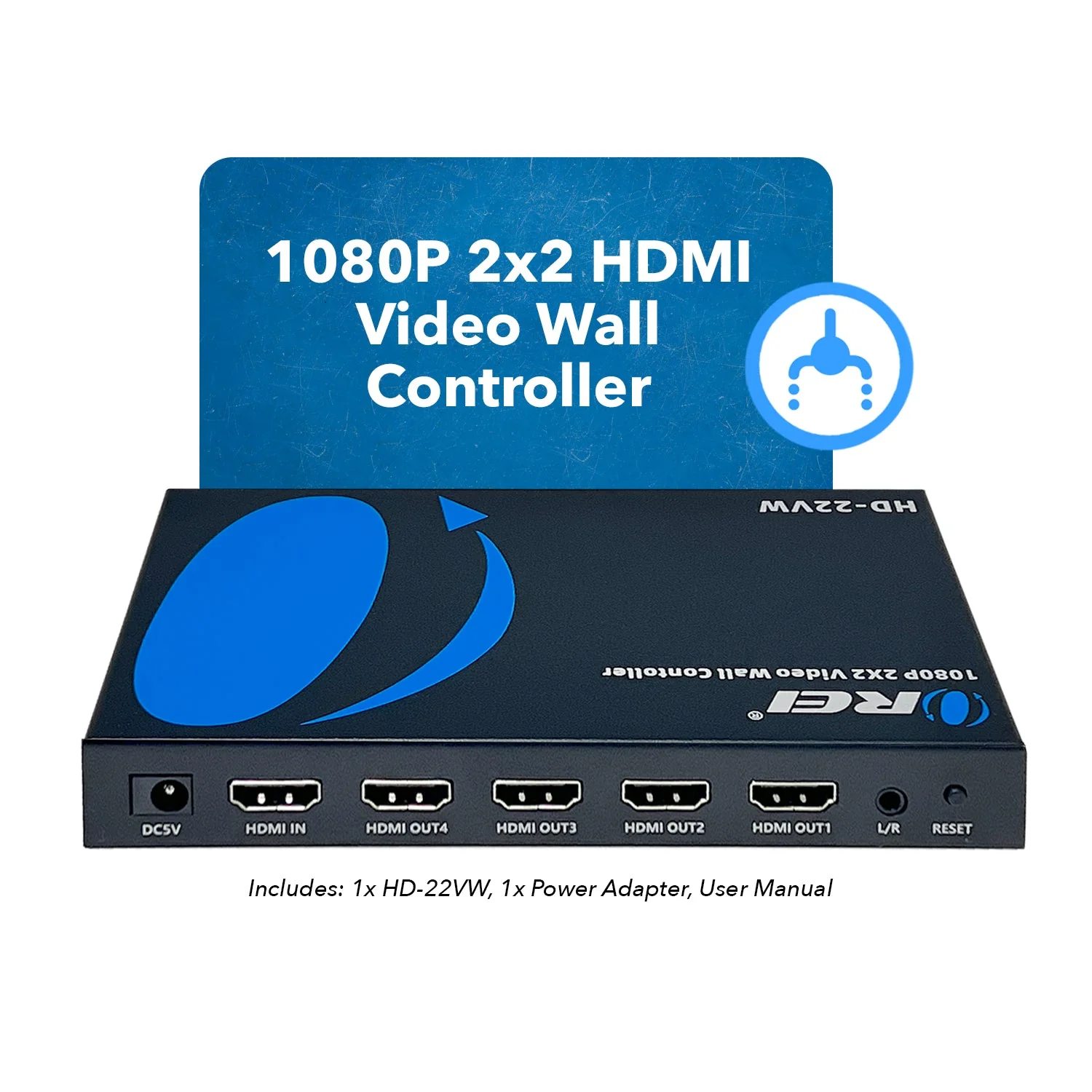

2x2 Full HD Video Wall Controller with Audio Extraction & RS-232 (HD-22VW)
OREI HD-22VW: 1080P 2x2 Video Wall Contoller
Key Features:
-
1 Input 4 Output for a 2x2 video wall setup.
-
HDMI 1.4 and HDCP 1.4 compliant with resolutions up to 1080p@60Hz.
-
8 different video wall modes, such as 1x1, 1x2, 1x3, 1x4, 2x2, etc.
-
Switch between modes easily through Dip switches on the front.
-
RS-232 control for easier control through a PC.
-
3.5mm Analog audio output for audio extraction.
-
Supports 180° flipping in 2x2 mode to flip the upper displays upside down.
-
Micro USB firmware upgrade port.
-
Lightning protection, surge protection, ESD protection.
-
Plug-and-play setup
The HD-22VW is a 1 Input 4 Output 2x2 Video Wall Controller. It is the best
device For various Video wall setups. It features 8 different video wall modes.
Create a beautiful display wall with resolutions up to 1080p@60Hz. The
HD-22VW also features an Analog 3.5mm audio output for audio extraction, so
you can connect your sound system directly to the controller. The device can
be controlled through DIP switches on the front or through RS-232 command
control. It is a versatile and powerful video wall controller that is perfect for a
variety of applications, such as retail, hospitality, education, corporate, security,
etc.
[shortdes]
-
2x2 Video wall controller
-
Resolutions up to 1080P@60Hz
-
Features 180-degree rotation in 2x2 mode
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 4 × HDMI [Type A, 19-pin female] | |
|
|
1 × L/R [3.5mm Stereo Mini-jack] | |
| CONTROL: | 1 × RS-232 [3pin phoenix connector] | |
| 1 × Upgrade [Micro-USB] |
PACKAGE CONTENTS
| 1x HD-22VW |
| 2x Mounting Bracket |
| 1x RS-232 3-pin Phoenix connector |
| 1x Grounding Screw |
| 6x Screw |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 1080P@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 10.2 Gbps |
| Video Resolutions: | Up to 1080P@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | Yes |
AUDIO SUPPORT
| HDMI Audio Formats: |
PCM 2.0
|
|
|
|
| Analog Audio Formats: |
PCM 2.0
|
COMPLIANCES
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance |
HDCP 1.4 |
POWER
| Power Consumption: | <4 W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 160mm / 6.29in | |
| Width: | 90mm / 3.54in | |
| Height: | 20.6mm / 0.81in | |
| Weight: | 381g / 13.43oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
