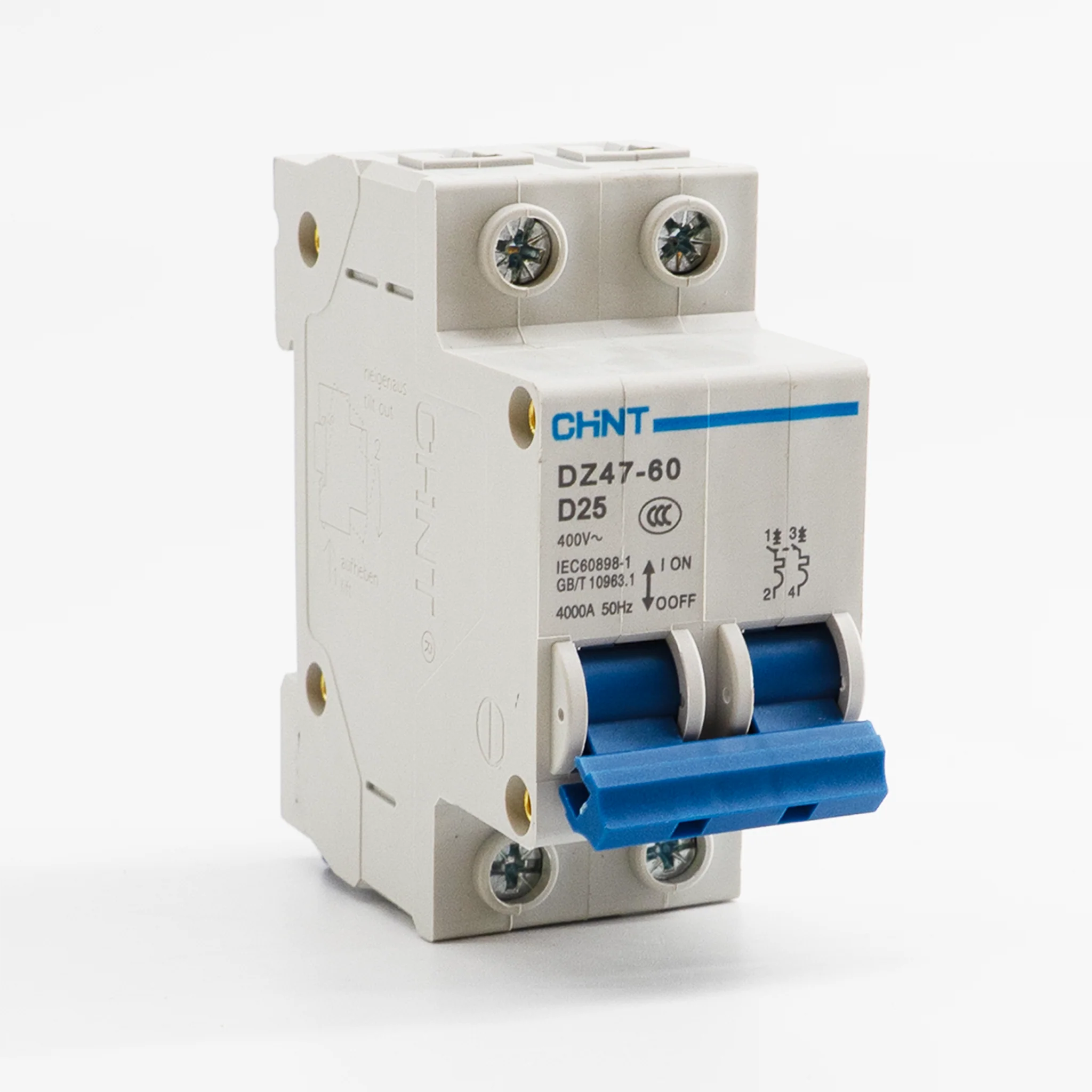

2-Pole Breaker CHINT DZ47-60 D25

Overview

The CHINT DZ47-60 D25 is a premium 2-pole miniature circuit breaker (MCB) engineered for reliable electrical protection, ideally suited for applications such as single chamber vacuum machines. It ensures maximum operational safety, preventing damage due to overloads or short-circuit conditions, both critical in environments demanding continuous and reliable operation.

---

Key Features

• Brand: CHINT

• Model: DZ47-60 D25

• Rated Current: 25 Amperes

• Rated Voltage: 400V AC

• Poles: 2 (Double pole)

• Frequency: 50Hz

• Breaking Capacity: 4000A

---

Specific Benefits for Single Chamber Vacuum Machines

• Stable Power Protection:

  • Single chamber vacuum machines often feature powerful vacuum pumps and heating elements that experience fluctuating current loads. The DZ47-60 D25 breaker ensures smooth operation by swiftly interrupting circuits in case of an overload.

• Enhanced Safety for Sensitive Equipment:

  • Protects delicate control boards and sealing elements inside the vacuum machine from electrical faults.

• Type D Tripping Characteristic:

  • Ideal for equipment with motor startups (high inrush current) like vacuum pumps, where normal breakers might trip unnecessarily.

• Compact Installation:

  • Space-saving design fits easily within vacuum machine control panels without the need for extensive modifications.

• Durability and Endurance:

  • Designed for industrial cycles, supporting the heavy-duty and repetitive operation typical of vacuum packaging processes.

Compatible With:

• E-VAC-762-F
